50ohm Semi Rigid RF Cable Assemblies Tin Plated Aluminum Tube Available

50ohm Semi Rigid RF Cable Assemblies Tin Plated Aluminum Tube Available

antenna coaxial cable

rf coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-56765426

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Type::
Coaxial
Gender::
Sma
Impedance::
50ohm
Cable Type::
RG Series,low Loss Cable
Application::
RF Device
Certification::
CE/ROHS/ISO9001
Plating::
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~5.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description

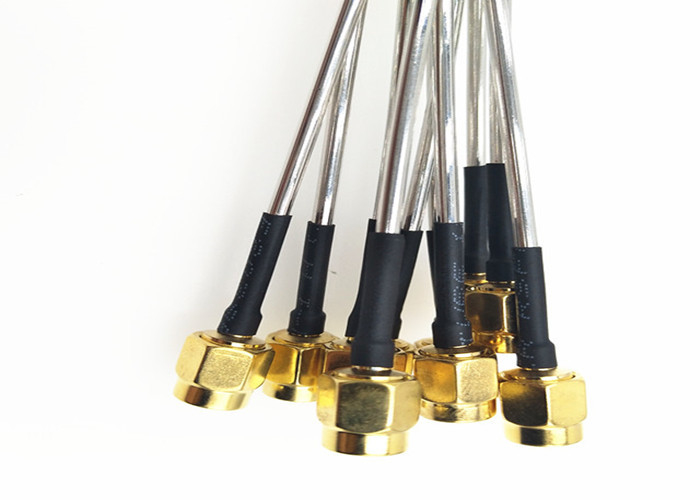

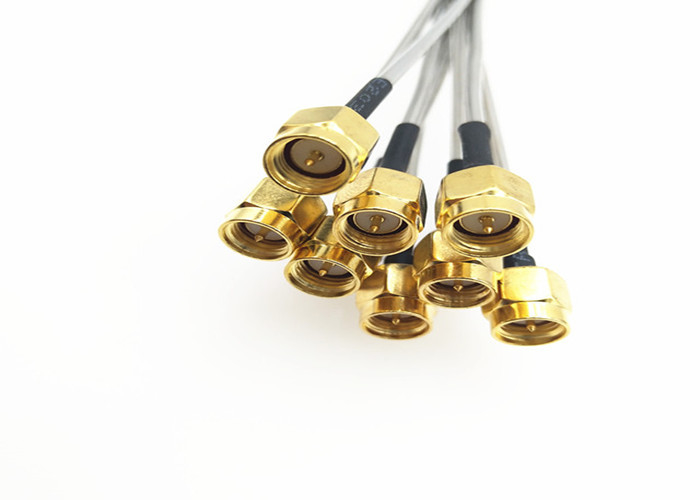

Semi rigid 0.086 Diameter 086 With Tin Plated Aluminum Tube Outer with sma male



Electrical Characteristics:

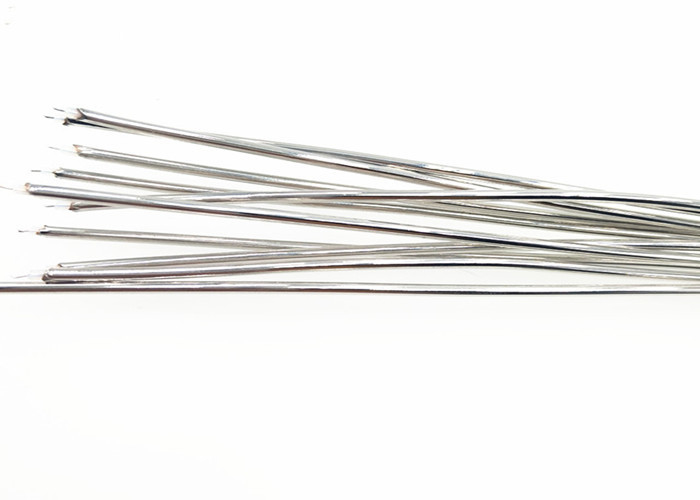

Construction Spectification



Item Material Diamenter (mm)
1. Inner Conductor Silver Plated Copper Clad Steel 0.51
2. Dielectric PTFE 1.68
3. Outer Conductor Tin Plated Aluminum Tube 2.15

Electrical Characteristics
Capacitance (Pf/M)   95.1
Impedance (Ohm)   50
Moding Frequency (GHz)   61
Corona Extinction Voltage (VRMS@60Hz)   1500
Voltage Withstanding (VRMS@60Hz)   5000
Min. Bending Radius Static (mm)   7.63
Outer Conductor Integrity Temp. (°C)   N/A
Operating Temp. (°C)   -55 to 125

Attenuation & Average Power @ 20 °C at Sea Level
Frequency (GHz) Attenuation (≯dB/100m) Power (Watts CW)
0.5 45.0 173.5
1.0 64.0 121.5
5.0 151.0 52.2
10.0 222.0 35.8
20.0 329.0 24.3


Product Details:

50ohm Semi Rigid RF Cable Assemblies Tin Plated Aluminum Tube Available 0

50ohm Semi Rigid RF Cable Assemblies Tin Plated Aluminum Tube Available 1



Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.

5. OEM/ODM service.


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2. Can you offer samples to test before placing one formal order?
Samples for test purpose can be presented provided that you bear the shipping cost.



3. How long is usually your delivery time?
Our delivery time is usually within 14 days after we receive your order .



4. What’s your Shipping Methods?
By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.



5. Can you send a sample for us to develop?
Yes, we can. The samples can be delivered within 7 business days



6. Is the MOQ fixed?
The MOQ is flexible and we accept small order in the first time as trial order.
