Shielding Insulation LVDS Cable Assembly 20 Pin Hirose DF14-20S-1.25C To 20pin DF19-20S-1C

Shielding Insulation LVDS Cable Assembly 20 Pin Hirose DF14-20S-1.25C To 20pin DF19-20S-1C

custom lvds cable

lvds extension cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-86543

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
20PIN
Application::
Electronic
1 Connector::
DF14-20S-1.25C
2 Connector::
DF19-20S-1C
Housing::
Hirose
Length::
Customized
Samples::
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





20pin hirose DF14-20S-1.25C to 20pin DF19-20S-1C shielding insulation lvds cable




-------What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.


Electrical Characteristics



The specification of the lvds cable
lvds cable type 34AWG,32AWG,30AWG,28AWG,26AWG LCD 20cores single shield cable,LCD 20cores double shield cable LCD 32cores single shield cable,LCD 32cores double shield cable LCD 20cores non-shield cable, LCD 32cores non-shield cable
lvds cable Connectors JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU,JWT,Panasonic connectors
lvds cable Length 50mm-15000mm
lvds cable Processing ways Crimping, pressing and soldering types
lvds cable connection As per customer's request( customer can send the datasheets of LCD and main board to us)
lvds cable range 0.3mm-4.2mm
lvds cable Charateristics Good transferring, clearly pictures, no shaking. and transfer issues
lvds cable Performance Test 100% electrical and electricity performance test


Product Details:

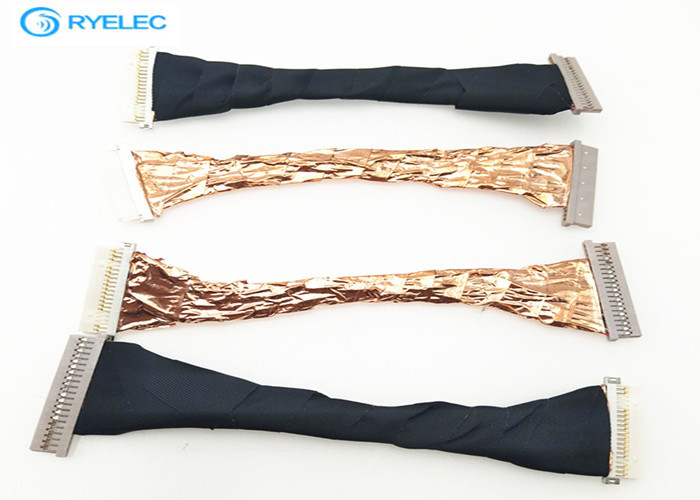

Shielding Insulation LVDS Cable Assembly 20 Pin Hirose DF14-20S-1.25C To 20pin DF19-20S-1C 0

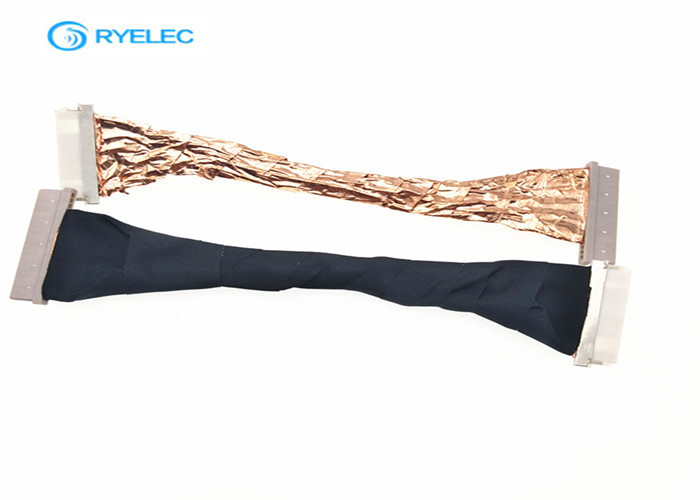

Shielding Insulation LVDS Cable Assembly 20 Pin Hirose DF14-20S-1.25C To 20pin DF19-20S-1C 1
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Services:

1.Our company can provide varieties of high quality electronic and cartoon products.

2.With over 10 years exporter experience in electronic field.we also can accept OEM and ODM service.

3.we have many famous cooperating partners.such as HRS,JAE,JST,Molex and etc.and receive good reputation and friendly feedback from all of our customers.

4.Welcome you visit us.we provide you a best price and excellent service.we hope sincerely establish long-term business relations with you!



FAQ:

1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.

3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc.
