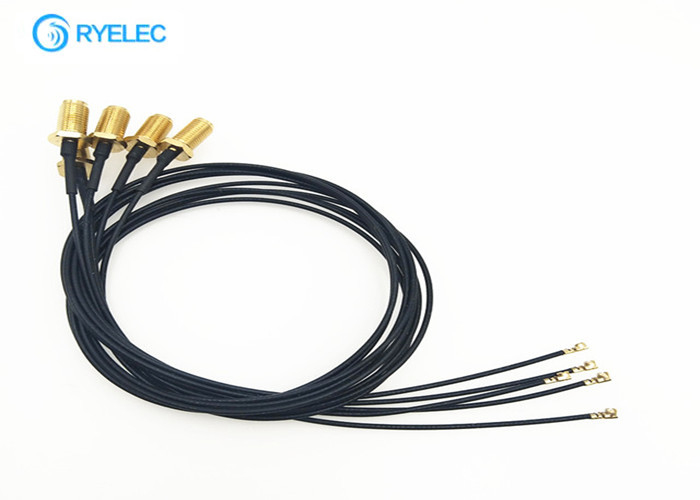

Extension SMA Female Bulkhead RF Cable Assemblies To 1.37 Mm Cable Ufl IPX RF Connector

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-824578
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.88~3.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name:: RY Type:: Coaxial
Connector 1:: Sma Female Connector 2:: Ufl
Cable Type:: RG Series,low Loss Cable Application:: RF Device
Certification:: CE/ROHS/ISO9001 Plating:: Nickel Or Gold
High Light:

antenna coaxial cable

,

rf coaxial cable

Product Description







extension SMA female bulkhead to 1.37 mm cable Ufl./IPX RF connector pigtail cable






Electrical Characteristics

ELECTRICAL DATA
Impedance 50Ω
Frequency range DC-6Ghz
VSWR 1.3 max
Voltage 60V AC(rms)
Insulation Resisitance 500 MΩ min.
Insertion Loss 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
Connector sma to mcx
MATERIAL DATA
Bodies Brass--gold plating
Pin contacts Brass--gold plating
Socket contacts Copper-beryllium alloy--Au plating
Insulator PTFE
Cable type 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
Application smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range -40°C to +80°C


Product Details:

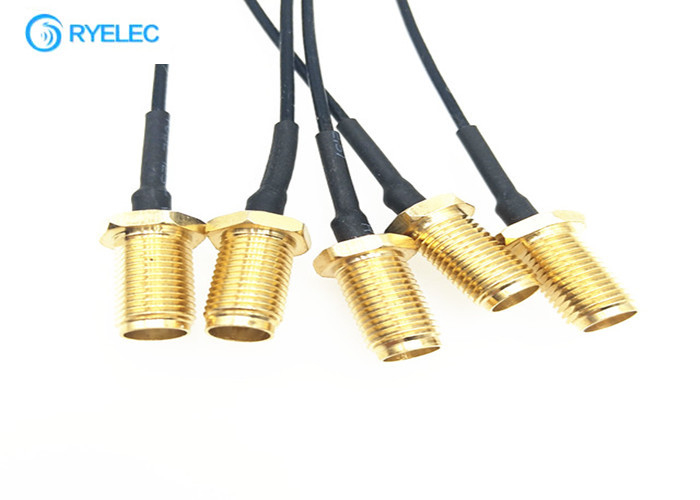

Extension SMA Female Bulkhead RF Cable Assemblies To 1.37 Mm Cable Ufl IPX RF Connector 0

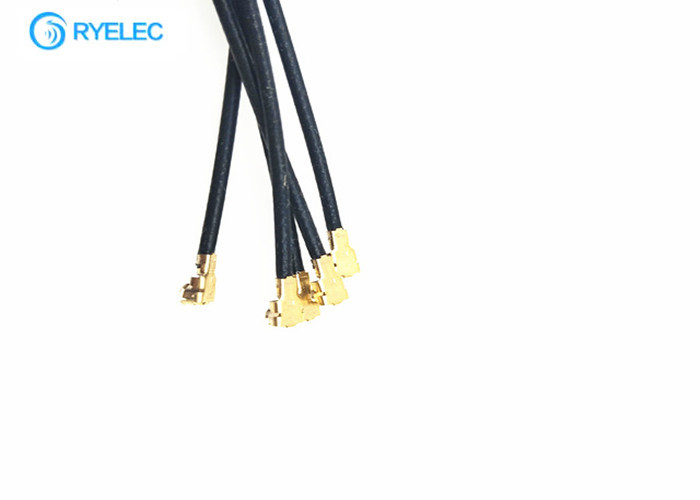

Extension SMA Female Bulkhead RF Cable Assemblies To 1.37 Mm Cable Ufl IPX RF Connector 1

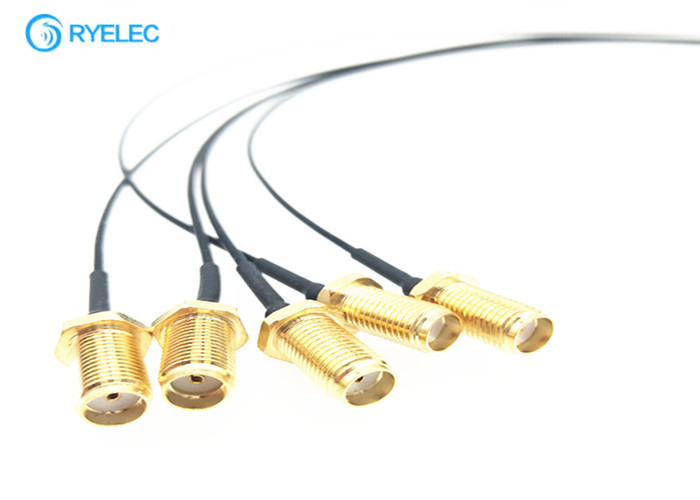

Extension SMA Female Bulkhead RF Cable Assemblies To 1.37 Mm Cable Ufl IPX RF Connector 2

Spec:

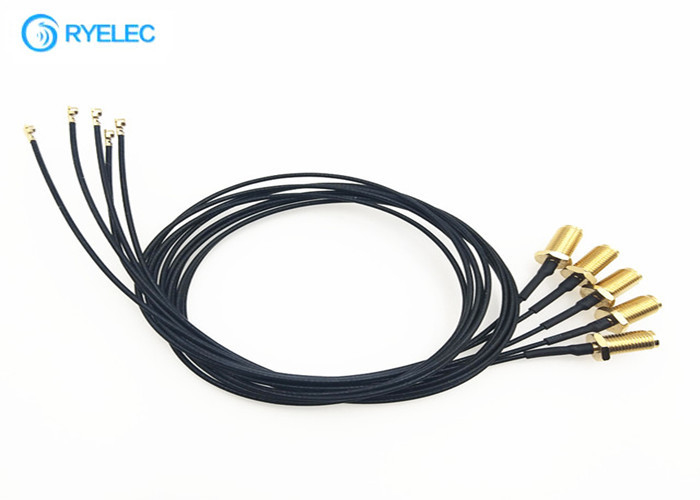

Extension SMA Female Bulkhead RF Cable Assemblies To 1.37 Mm Cable Ufl IPX RF Connector 3

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. No minimum order requirement



2. Design according to customer requirement



3. Reliable technical support



4. Quick response and delivery


FAQ:

1. Some connectors are available with different cables. Which cables shall I choose?
In a nutshell, if there are different cables which can be equipped with the same connector: always choose the cable with the bigger diameter (simply because the bigger diameter results in less attenuation).



2. Can you provide customization?
Of course. Personalized designs of RF cable assembly products according to customer's requirements are welcomed.



3. Can you send a sample for us to develop?
Yes, normally we can provide 1 or 2 samples of the small RF cable assembly ,buyers need to bear the freight.



4. How much the shipping cost will be for sample ?
That depends on the specific weight and packing size of the goods.



5. How can I get the cable price list ?
Please contact us with detail inquiry information, so we can offer the latest price for you.



6. What's your MOQ?
In generally, we will ask at least 100pcs for the RF cable assembly, which we can make further negotiation.



7. What's the delivery time?
Generally, we can deliver the cables in 3-5 working days once the payment is confirmed. Mass production is another matter.



8. How do you solve after sale service?

After the receipt of goods, if you are not satisfied or any other problems , please contact us to communicate as soon as possible, we will give you a quickly and reasonable solution .



Thanks a lot!
