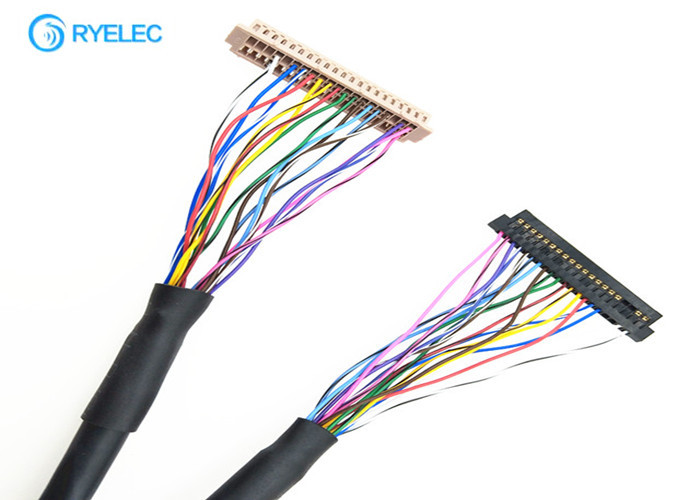

Hirose 40 Pin DF13 Connector LVDS Cable Assembly To JAE Hirose FI - S20S 1.25mm Connector

Hirose 40 Pin DF13 Connector LVDS Cable Assembly To JAE Hirose FI - S20S 1.25mm Connector

custom lvds cable

lvds extension cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-86258

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
40PIN TO 20PIN
Application::
Electronic
1 Connector::
DF13
2 Connector::
FI-S20S
Housing::
Hirose
Length::
Customized
Samples::
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD1.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





Hirose 40pin DF13 Connector To JAE Hirose FI-S20S 1.25mm Connector For LVDS Cable ​​






What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,

industrial cameras and machine vision,notebook and tablet computers,and communications systems.

The typical applications are high-speed video,graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.


Electrical Characteristics



Current rating



1A AC,DC

Voltage rating



150V AC,DC

Temperature range



-40℃~+105℃

Contact resistance



30m Max

lnsulation resistance



500M Min

Withstanding voltage



500V AC/minute

Color



Black

Pitch



1.25mm(.049)

Product Keywords



FI-S20S


Product Details:

Hirose 40 Pin DF13 Connector LVDS Cable Assembly To JAE Hirose FI - S20S 1.25mm Connector 0

Hirose 40 Pin DF13 Connector LVDS Cable Assembly To JAE Hirose FI - S20S 1.25mm Connector 1
Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. 1 Year Warranty.


FAQ



1. How to choose a right cable?

A designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.



2. What’s will impact the material you select?

Specific equipment, machine structure and environment



3. What sort of cable need suggest to?

For long transmission lines, a braided or served shield is recommended to ensure good isolation between the signal lines and the environment.



4. What kind of cable is cheaper and easy to handle?

Multiconductor cables are cheaper and easier to handle than twisted pair or coaxial cables, especially in terms of termination.



5. What’s you recommended for differential data transmission, such as LVDS?

The twisted pair cable is recommended since it provides two identical conductors to transmit the signal and its complement.
