3 P Dupont Plug 2.54mm Pitch To Jst Zh Custom Wire Harness With UL1571 28awg Cable

3 P Dupont Plug 2.54mm Pitch To Jst Zh Custom Wire Harness With UL1571 28awg Cable

custom cable assemblies

wire harness cable assembly

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-82257

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
6pin
Application::
Electronic
1 Connector::
Dupont
2 Connector::
Jst-zh Terminal
Length::
Customized
Samples::
Available
Voltage Rating::
30v
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~6.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





3p Dupont Plug 2.54mm Pitch To Jst Zh Crimped Wire Hanress With UL1571 28awg Cable



Electrical Characteristics:


01 - Connection Type



Printed Circuit Board Connectors

02 - Product Type



Wire to Board Crimp style Connectors

03 - Pitch / Style



1.50mm

04 - Current rating



1.0A AC,DC

05 - Voltage rating



50V AC,DC

06 - Temperature range



-25 to +85 Degrees Celsius

07 - Available number of circuits



2 to 13

13 - PCB Mount Style



Surface Mount Technology (SMT)



Through-hole Technology (THT)







What is Wire Harness :



Wire harness refers to the connector made of copper, which is pressed with wire and cable, then externally plastic and pressed insulator or metal shell, etc. to form a connecting circuit component by bundling wire harness. Wire harness has many kinds and wide application range. It can be used in automobiles, household appliances, computers and communication equipment, various electronic instruments and instruments, etc. But the form of each type of harness is basically the same, and its components will not change much.



Product Details:

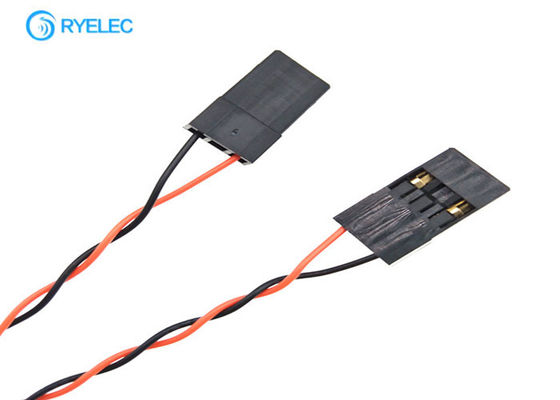

 3 P Dupont Plug 2.54mm Pitch To Jst Zh Custom Wire Harness With UL1571 28awg Cable 0

3 P Dupont Plug 2.54mm Pitch To Jst Zh Custom Wire Harness With UL1571 28awg Cable 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
   •100% product quality protection
   •100% on-time shipment protection
   •100% payment protection for your covered amount




FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
