UL1571 28AWG Lvds Display Cable 30 Pin 1.0mm To Dupont 2*15 Pin Connector 2.0mm

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-8905231
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD1.88~8.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name:: RY Application: Electronic
Connector: JAE FI-X30HL Connector: Dupont 2*15pin
Housing: Hirose Length: Customized
Samples: Available Compliance: RoHS
High Light:

custom lvds cable

,

lvds extension cable

Product Description

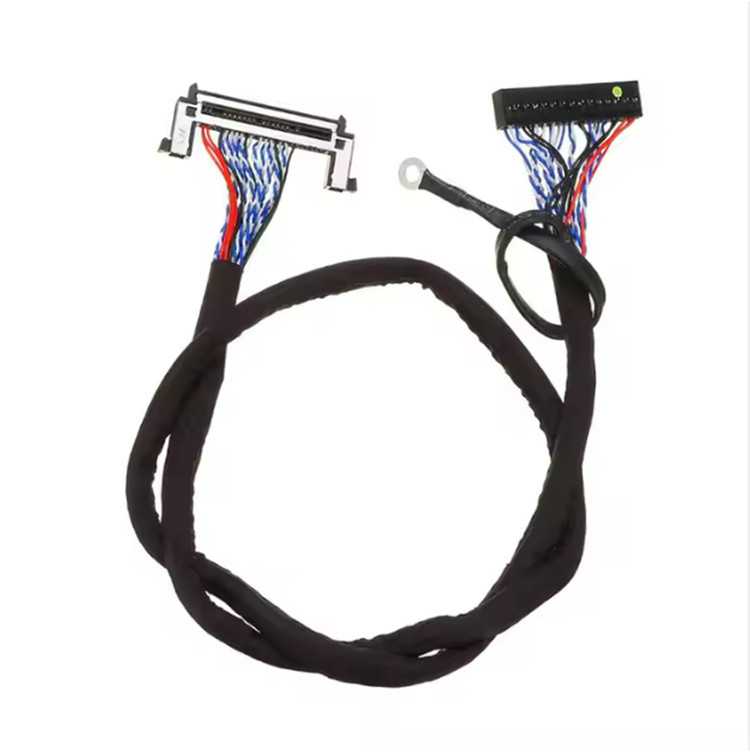

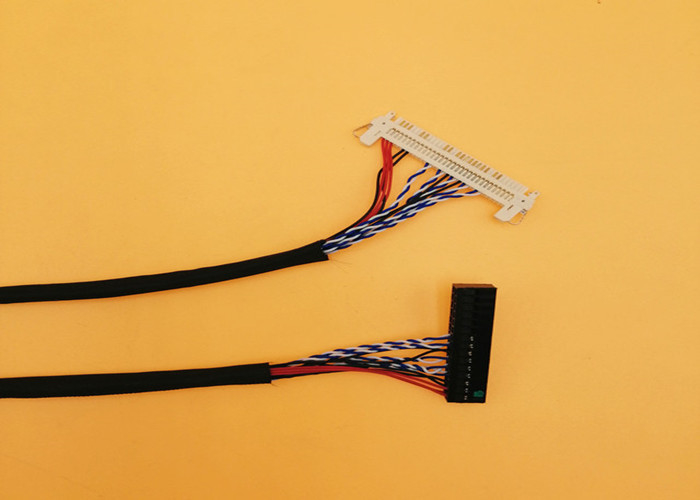

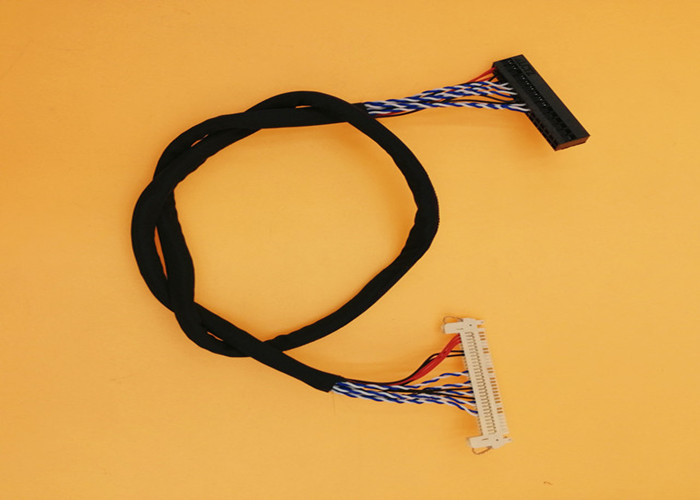

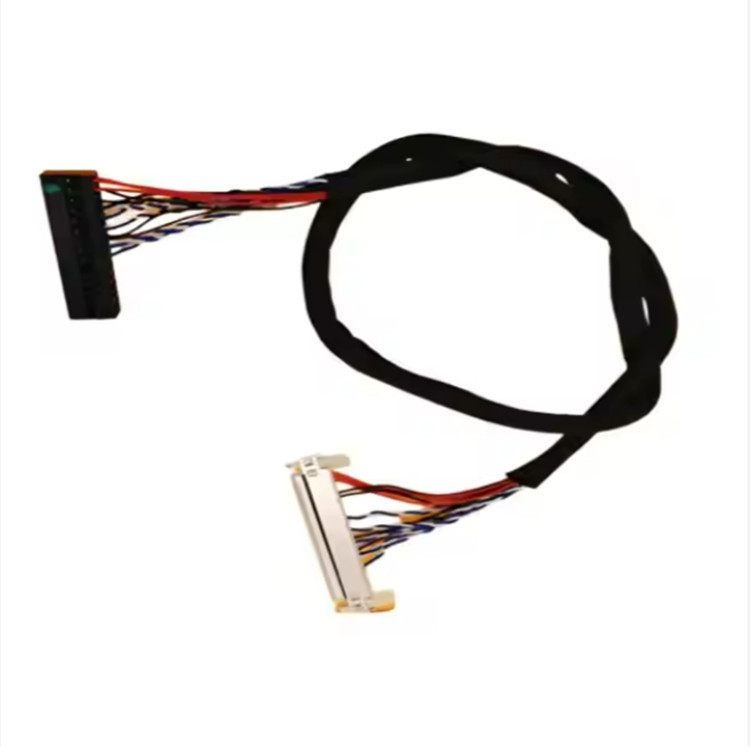

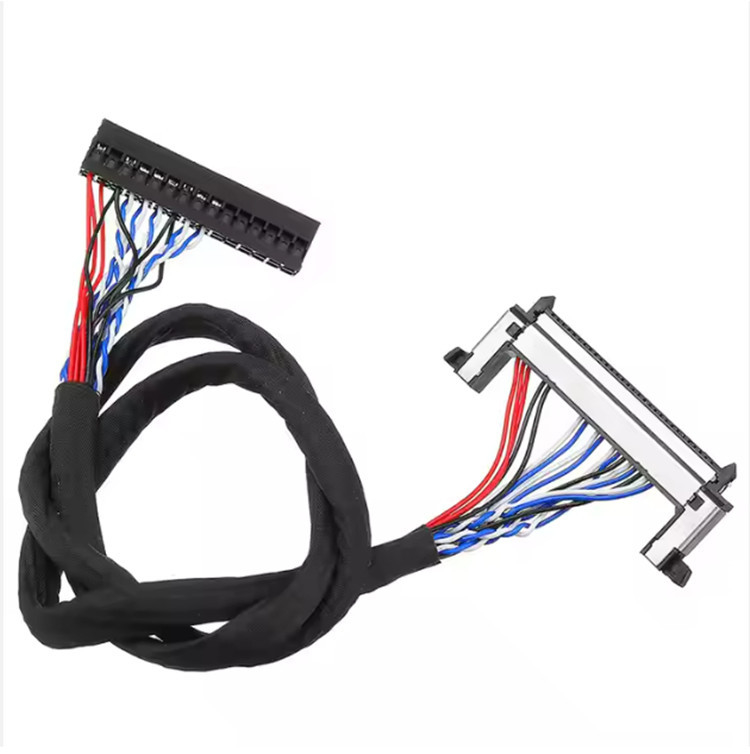

High quality JAE FI-X30HL 30pin 1.0mm pitch to Dupont 2*15pin connector 2.0mm pitch UL1571 28AWG LVDS cable wire harness





-------What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.

Electrical Characteristics:





Items



Specifications

Part Number

SCT1009

Compatible

Hirose DF19 Connector Series

Pitch - Mating Interface

1.0mm

Circuits

8, 14, 20, 30 positions

Applicable wire

30AWG,28AWG

Current Rating

1A

Voltage Rating

100V

Temperature Range

-25°C~+85°C

Contact Resistance

30m Omega Max

Insulation Resistance

500M Omega Min

Withstanding Voltage

500V AC/minute

Wire & Cable Assemblies

Customized



Product Details:
UL1571 28AWG Lvds Display Cable 30 Pin 1.0mm To Dupont 2*15 Pin Connector 2.0mm 0

UL1571 28AWG Lvds Display Cable 30 Pin 1.0mm To Dupont 2*15 Pin Connector 2.0mm 1


Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.



FAQ

1. How to choose a right cable?

A designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.



2. What’s will impact the material you select?

Specific equipment, machine structure and environment



3. Follow question 2, below you have to concern

Unshielded or shielded (taped, braided, or combination of both)?

Round or flat? Coaxial, multiconductor or twisted pair cable?



4. Why cable need to be shielding?

To reduce electrical noise from affecting the signals, and to reduce electromagnetic

radiation that may interfere with

other devices.



5. What kind of cable is cheaper and easy to handle?

Multiconductor cables are cheaper and easier to handle than twisted pair or coaxial cables, especially in terms of termination.



6. What’s you recommended for differential data transmission, such as LVDS?

The twisted pair cable is recommended since it provides two identical conductors to transmit the signal and its complement.
