2*10 Pin Idc 20 Pin Flat Ribbon Cable With 2651 28awg 1.27mm Pitch Wire

2*10 Pin Idc 20 Pin Flat Ribbon Cable With 2651 28awg 1.27mm Pitch Wire

ribbon connector cable

idc ribbon cable assembly

Place of Origin:

China

Certification:

CE,ROHS

Model Number:

RY-8345

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Pin:
10pin
Application:
Electronic
Connector:
Idc
Housing:
Idc
Pitch:
1.27mm
Length:
Customized
Samples:
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description



2*10pin 2.54mm Pitch 20pin Idc Falt Ribbon Cable With 2651 28awg 1.27mm Pitch Wire​



Electrical Characteristics



Cable type

UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type



Cable color

Optional



Connectors

JST



Cable Length

50mm-15000mm.



Processing ways

Crimping, pressing and soldering types.



Pin out connection

As per customer’s request



Connector pitch range

0.5mm-4.2mm



characteristics

Good transferring, clearly pictures, no shaking, and transfer issues



dvantages

Manufacturing factory;

Competitive price and quality;

Short lead time

Applications

LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA

Camera/LCM/Notebook/tablet PC/ HDD

ISO certificate

ISO9001:2008



Service

OEM/ODM products are acceptable.



More information

ISO/RoHS/UL



Performance Test: 100% electrical and electricity performance test




Product Details:

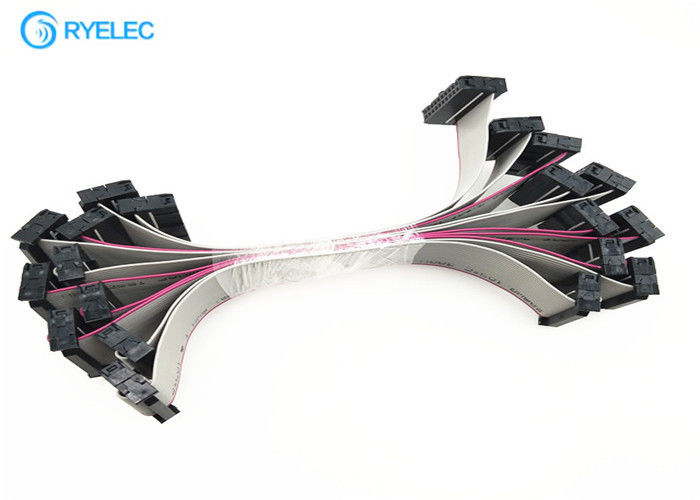

2*10 Pin Idc 20 Pin Flat Ribbon Cable With 2651 28awg 1.27mm Pitch Wire 0

2*10 Pin Idc 20 Pin Flat Ribbon Cable With 2651 28awg 1.27mm Pitch Wire 1



* IDC Cable Pitch: 0.635MM 1.0MM 1.27MM 2.0MM 2.54MM

* IDC Connector Pitch: 1.27MM 2.0MM 2.54MM

* Wire gage: UL2651 32AWG 30AWG 28AWG 26AWG 24AWG
* Copper wire Conductor: General 7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.12MM, 7/0.16MM, 7/0.2MM (7 of 7-strand copper wire)
* Conductor cross-sectional area: 0.36mm2
* Insulator tensile strength 1.066Kg/mm2
* Spark test 3.0KV/0.15SPC
* Withstand Voltage: 2KV 10mA /
* Conductor resistance ≤237 ohms RM
* Insulation resistance ≥100m ohm/RM
* Capacitance 40PF/M
* Impedance: 100 ohms
* Operating temperature: -40 °C ~ + 105 °C
* Insulation Jacket: Environmental PVC 45P (RoHS) 8058 Grey
* Testing requirements:
UL ribbon cable has Good appearance, without defects of plastic injection molding, Metal parts may not have scratches, deformation and other defects of performance to meet the requirements
This UL  ribbon cable widely used in various computer equipment, machinery, electrical appliances, cars, color TV, air conditioning, LED display, DVD, VCD, and other connectors and connector.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. If I want to customize products, how will it work?
Equipped with professional equipments, technicians & skilled employees, OEM service are welcome. Pls offer us drawings or pictures.


5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
