20 Pin Connector JAE FI - S20S LVDS Cable Assembly LED LCD Display Mount

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-20492
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.88~6.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name:: RY Pin: 20PIN
Application:: Electronic 1 Connector:: FI-S20S
2 Connector:: FI-S20S Housing:: JAE
Length:: Customized Samples:: Available
High Light:

custom lvds cable

,

lvds extension cable

Product Description

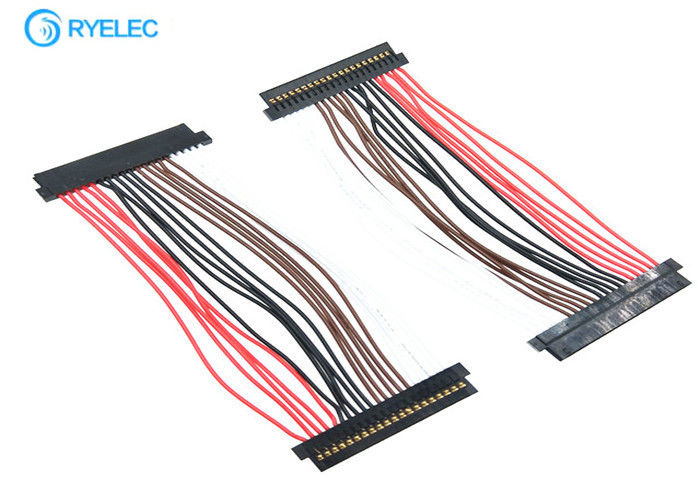

20 Pin Connector JAE FI-S20S LED LCD Display Mount 1.25mm Pitch Wire Harness​




-------What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.


Electrical Characteristics



Cable type
32AWG,30AWG, 28AWG, 26AWG;
LCD 20cores single shield cable, LCD 20cores double shield cable;
LCD 32cores single shield cable, LCD 32cores double shield cable;





Cable color
Black/Grey
Connectors
JAE
Cable Length
50mm-15000mm.
Processing ways
Crimping, pressing and soldering types.
Pin out connection
As per customer’s request(customer can send the datasheets of LCD and main board to us).
Connector pitch range
0.3mm-4.2mm
characteristics
Good transferring, clearly pictures, no shaking, and transfer issues
Advantages
Manufacturing factory;
Competitive price and quality;
Short lead time.

Applications
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD


ISO certificate
ISO9001:2008
Service
OEM/ODM products are acceptable.
More information
ISO/RoHS/UL
Performance Test:
100% electrical and electricity performance test


Product Details:
20 Pin Connector JAE FI - S20S LVDS Cable Assembly LED LCD Display Mount 0

20 Pin Connector JAE FI - S20S LVDS Cable Assembly LED LCD Display Mount 1
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.


FAQ:



1. How to choose a right cable?

a designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.



2. What’s will impact the material you select?

Specific equipment, machine structure and environment



3. Follow question 2, below you have to concern

Unshielded or shielded (taped, braided, or combination of both)?

Round or flat? Coaxial, multiconductor or twisted pair cable?



4. Why cable need to be shielding?

To reduce electrical noise from affecting the signals, and to reduce electromagnetic

radiation that may interfere with

other devices.



5. What sort of cable need suggest to?

For long transmission lines, a braided or served shield is recommended to ensure good isolation between the signal lines and the environment.



6. Is that double-shielded cables that are both taped and braided typically perform better?

Yes



7. What kind of cable is cheaper and easy to handle?

Multiconductor cables are cheaper and easier to handle than twisted pair or coaxial cables, especially in terms of termination.



8. What’s you recommended for differential data transmission, such as LVDS?

The twisted pair cable is recommended since it provides two identical conductors to transmit the signal and its complement.
