Brand Name:
RY
Model Number:
RY-4g-57257
Certification:
CE,ROHS
Place of Origin:
China
Contact Us
Video

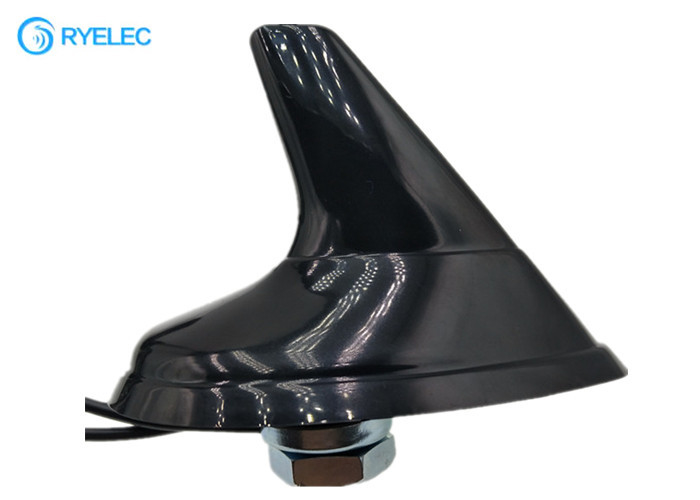

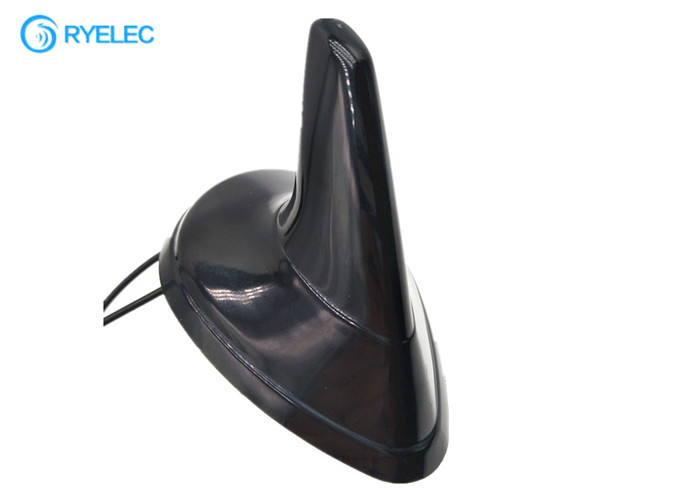

Screw Mount Waterproof Shark Fin 1575.42mhz Gps 4g Roof Mount Radio Antenna For Car
Electrical Characteristics:
|
GPS specifications
|
|
| Center Frequency | 1575.42MHz±3 MHz |
|
V.S.W.R
|
1.5:1 |
|
Band Width
|
±5 MHz |
|
Attenuation
|
fo±100MHz>30dB |
|
Impedance
|
50 ohm |
|
Peak Gain
|
>3dBic, Based on 7×7cm ground plane |
|
Gain Coverage
|
>-4dBic at –90°<0<+90°(over 75% Volume) |
|
Polarization
|
Right-handed Circular(RHCP) |
|
LNA specifications
|
|
|
LNA Gain (Without cable) |
28dB Typical |
|
Noise Figure
|
1.5dB |
|
V.S.W.R
|
<1.65 |
|
DC Voltage
|
2.7V-5.0V±0.5V |
|
DC current
|
15mA Max(5V DC) |
|
LTE specifications
|
|
|
Frequency Range
|
698-960/1710-2700MHz |
|
V.S.W.R
|
2.0:1 |
|
Gain
|
3dBi |
|
Polarization
|
Linear |
|
Radiation
|
Omni directional |
|
Max Input power(W)
|
50 |
|
Impedance
|
50 ohm |
|
Mechanical Specifications
|
|
| Cable |
GPS: 3m RG174, RG316, LMR100 or other LTE: 3m RG174, RG316, LMR100 or other |

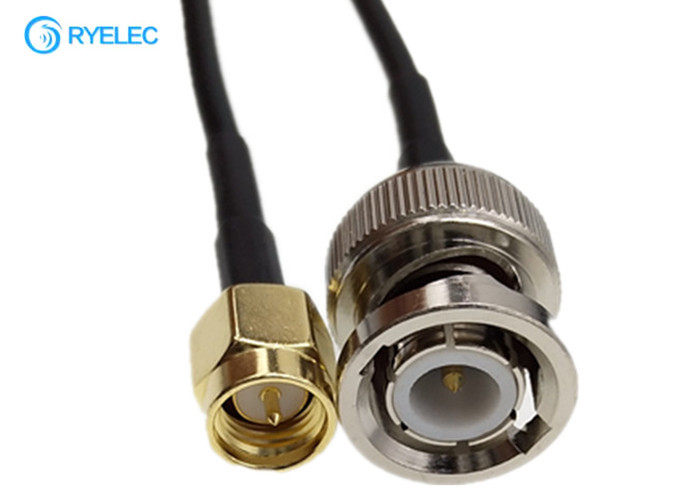

| Connector |
GPS: SMA male , SMB, FME, FAKRA or other LTE: SMA male , SMB, FME, FAKRA or other |
|

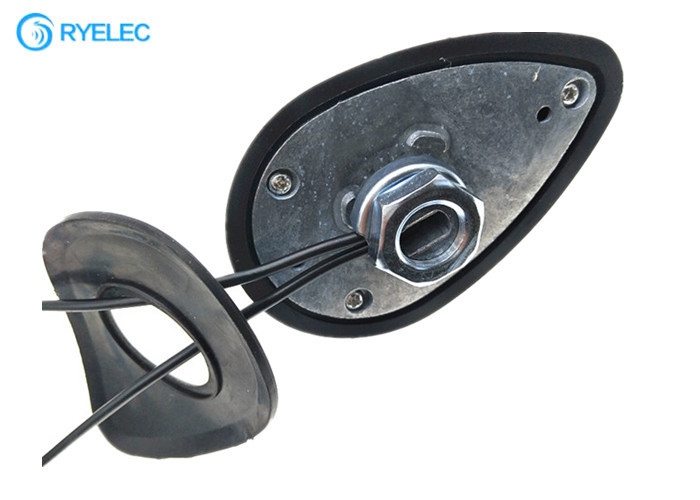

Mounting
|
Screw & Adhesive |
|
Environmental Specification
|
|
|
Working Temp
|
-40℃~+85℃ |
|
Vibration
|
Sine sweep 1g(0-p), 10~50~10Hz each axis |
|
Humidity
|
95%~100%RH |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
Send your inquiry directly to us
