Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-GPS-25254
Contact Us

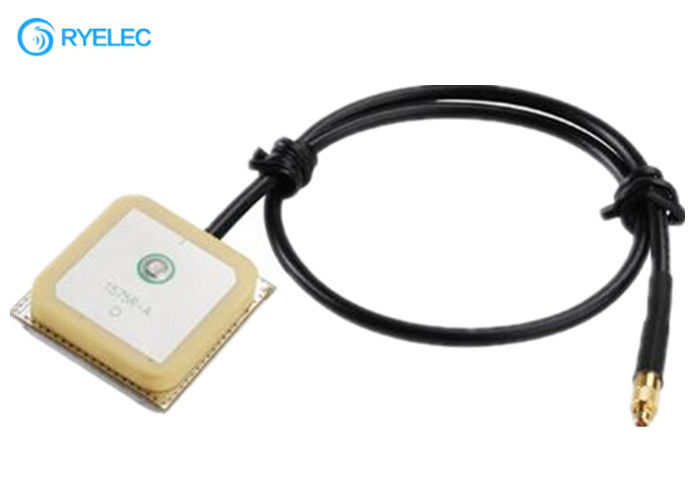

25x25x4mm 28dbi 1575.42mhz Gps Internal Antenna Active Passive With Rf1.13 Ipex Ufl
Electrical Characteristics:
| Center Frequency | 1575.42MHz |
| Bandwidth | ± 5 MHz |
| Gain | 28dBi |
| V.S.W.R | <2 |
| Polarization | Vertical |
| Output Impedance | 50 Ω |
| Max Input Power | 50 w |
| 3) Mechanical Information | |
| Cable Material | 1.13/RG-178 (Customizable) |
| Lenght of Cable | 1m/1.5m/2m/3m/5m |
| Connector | SMA/FAKRA/MMCX/IPEX (Customizable) |
| Appearance | Customizable |
| Size (mm) | 25x25x4mm |
| 4) Environmental Information | |
| Mounting | Magnet / Adhesive |
| Radiation | Omni-directional |
| Operating Temperature | -40°C ~ +85°C |
| Storing temperature | -40°C ~ +85°C |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Fast Delivery Time :2~15 days, On-Time Delivery.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. 1 Year Warranty.
5. OEM/ODM service.
6. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
The working principle of ceramic antenna :
The working principle of ceramic antenna is to use GPS satellite to realize navigation and positioning. The main task of user's receiver is to extract pseudo-random noise code and data code from satellite signal, so as to further calculate navigation information such as position, velocity and time of receiver carrier. The principle of ceramic antenna is divided into two parts: 1. It is the transmitting antenna and the receiving antenna.
Simply put, the ceramic antenna transmitting antenna transforms the high frequency electric field formed between the antenna and the ground into electromagnetic waves through an "antenna" electrode, so that it can emit and transmit waves to a distant place.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
