Mini Micro Sh 2pin 1.0mm Pitch Connector Wire Harness 1mm Pitch Jst Connector To Sh 1.0

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-SH10
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.55~4.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs

Detail Information

Brand Name:: RY Pin: 2pin
Application:: Electronic 1 Connector:: SH
2 Connector:: SH Length:: Customized
Samples:: Available Pitch: 1.0mm
High Light:

wire harness cable assembly

,

electronic wiring harness

Product Description



Mini Micro Sh 2pin 1.0mm Pitch Connector Wire Harness 1mm Pitch Jst Connector To Sh 1.0​



Electrical Characteristics:



Product name

JST CONNECTOR



Material

PA66



Type

SH



Installation style

Wire to Board



Color:

According to customer's requirement



Current rating

1.0.A AC , DC



Voltage rating

50V AC , DC



Temperature range

-40℃ to +85℃



Cotact resistance

≤30MΩ(Initial)

≤60MΩ(Final)



Insulation resistance ≥1000MΩ
Withstand Voltage

500V AC/minute



Applicable wire

AWG 32-28



Material

Housing :LCP L94-0

Shield:Stainless Steel

Lock:Staniless Steel

Cable

shield or unshield type



Cable color

Optional



Processing ways

Crimping, pressing and soldering types.



Certification

Rohs,ISO9001:2008





Wire Harness Applications:

1. Wire Harness for LCD
2. Wire Harness for PDA

3. Wire Harness for Advertising machine

4. Wire Harness for Monitoring

5. Wire Harness for PC and Computer

6. Wire Harness for TV

7. Wire Harness for Medical system/monitoring

8. Wire Harness for Laptop
9. Wire Harness for Advertising machine

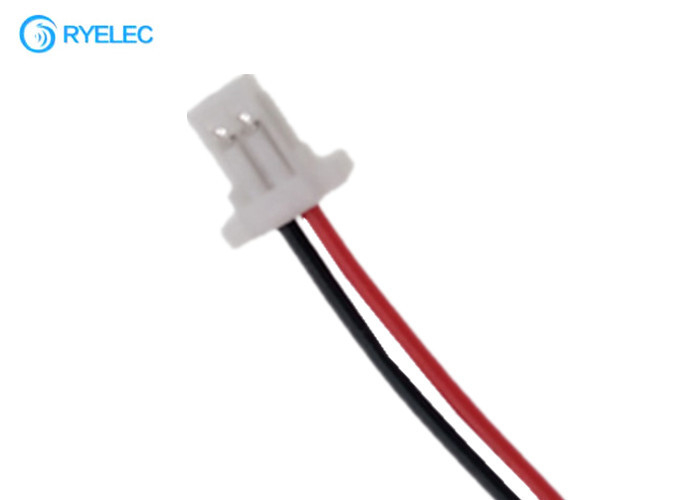

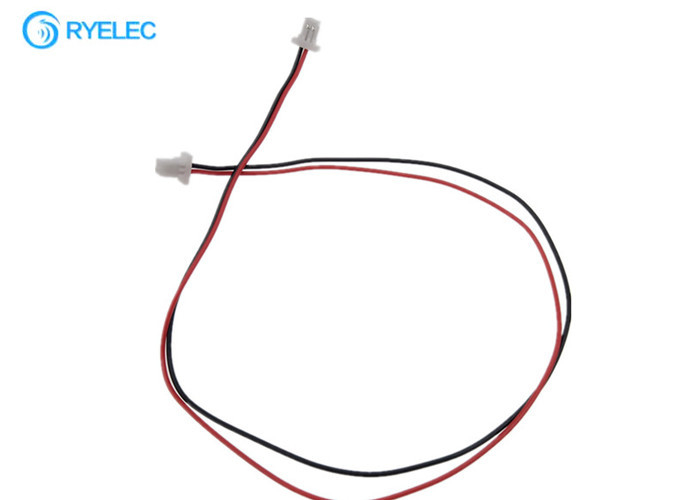

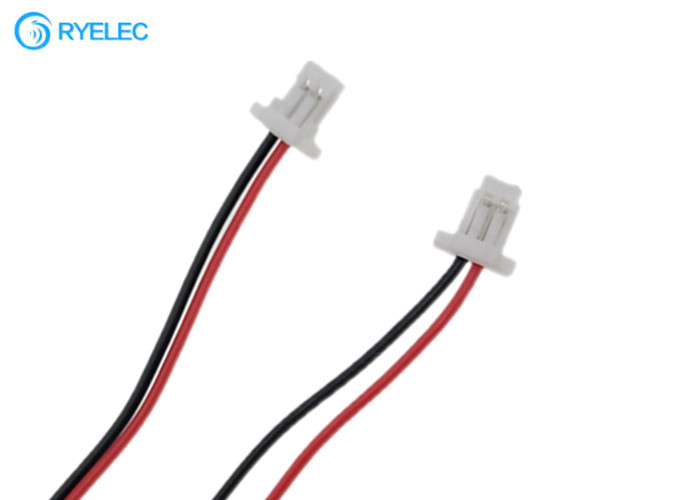

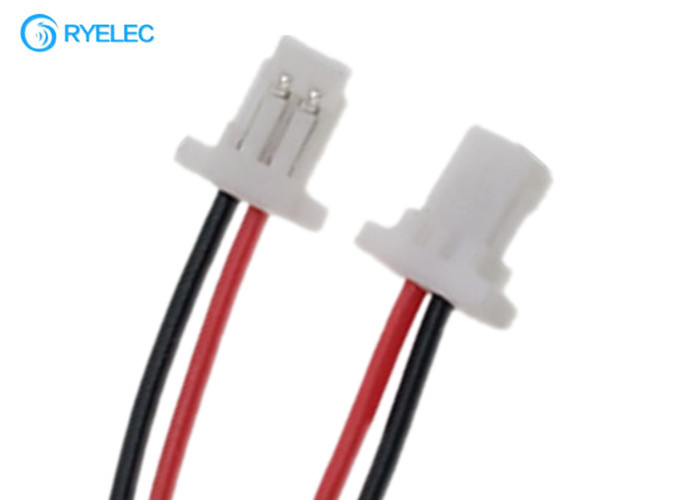

Product Details:
Mini Micro Sh 2pin 1.0mm Pitch Connector Wire Harness 1mm Pitch Jst Connector To Sh 1.0 0

Mini Micro Sh 2pin 1.0mm Pitch Connector Wire Harness 1mm Pitch Jst Connector To Sh 1.0 1
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.


3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.


4.The usual payment method.
T/T or Paypal.Usually, the small amount(less than 1000 usd) need to full payment before bulk production.
Also, can accept Western Union,alipay

5.When the goods is ready after the payment?
Usually 10-40 days.It depends ont the QTY and the product.
The specific delivery date will be update to you after 3 days when you place an order.
