30 Pin Lvds Flex Cable DF19G - 30S Hirose 1.0mm Pitch To DF19G-30S For TV / DVD With 30awg

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-DF19G-30S
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.88~8.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name: RY Pin: 30PIN
Application: Electronic 1 Connector: DF19G-30S
2 Connector: DF19G-30S Housing: Hirose
Length: Customized Samples: Available
High Light:

custom lvds cable

,

lvds extension cable

Product Description



30 Pin DF19G-30S Hirose 1.0mm Pitch To DF19G-30S For TV / DVD Lvds Cable With 30awg




-------What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.


Electrical Characteristics



Current rating

1 AC,DC



Voltage rating

100V AC,DC



Temperature range

-40℃~+105℃



Contact resistance

30m Max



lnsulation resistance

500M Min



Withstanding voltage

500V AC/minute



Material

Brass



Keywords

WAFER CONNECTOR



Cable

UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type



Cable color


Optional

Processing ways


Crimping, pressing and soldering types.

Performance Test


100% electrical and electricity performance test



Product Details:

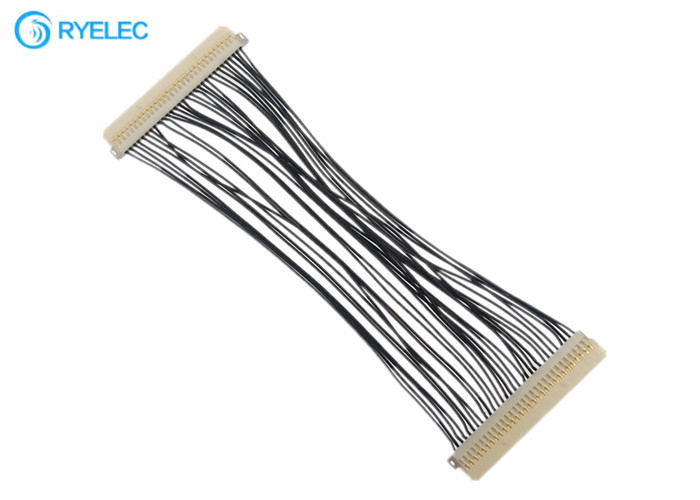

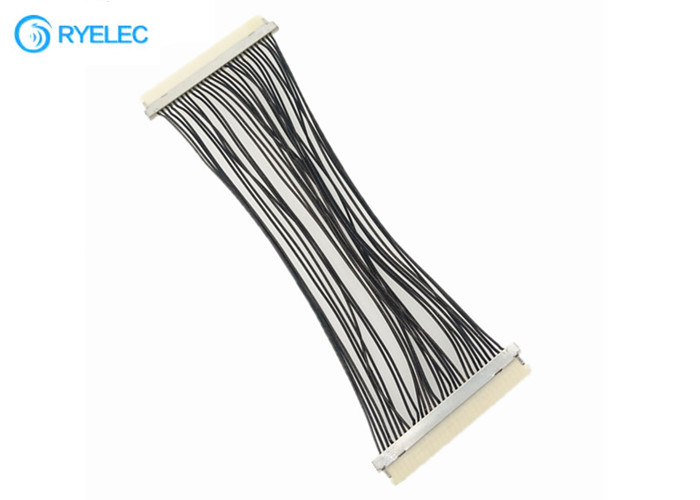

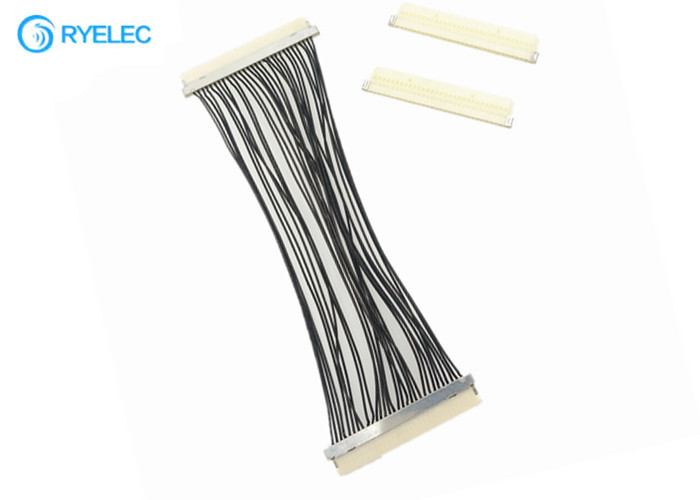

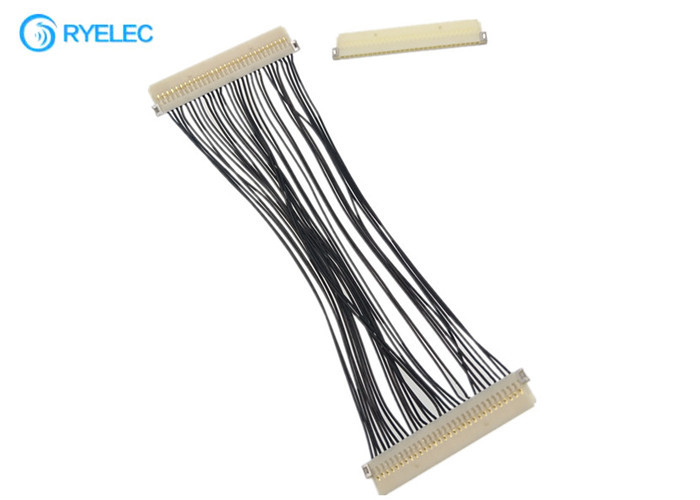

30 Pin Lvds Flex Cable DF19G - 30S Hirose 1.0mm Pitch To DF19G-30S For TV / DVD With 30awg 0

30 Pin Lvds Flex Cable DF19G - 30S Hirose 1.0mm Pitch To DF19G-30S For TV / DVD With 30awg 1


Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.


FAQ:

1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.

3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
