N Male To DIN 7/16 Female Rf Cable Connector DFNM Base Station Project Test

N Male To DIN 7/16 Female Rf Cable Connector DFNM Base Station Project Test

sma rf connector

rf cable connector

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-03155

Contact Us

Request A Quote
Product Details
Type:
N To DIN
Application:
RF
Gender:
Male To Female
Plating:
Nickel,gold
Contacts:
Gold-plated Brass Alloy
Samples:
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~3.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description

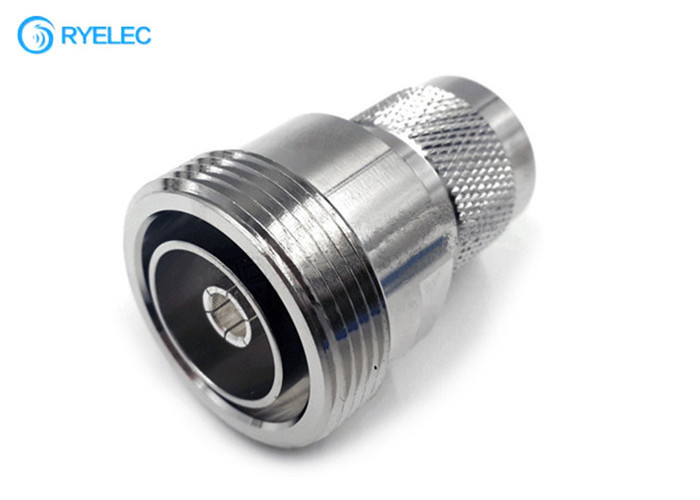

N Male To DIN 7/16 Female DFNM The Base Station Project Test RF Adapter​





Electrical Characteristics:














Electrical Characteristics

Impedance



50 ohm or 75 ohm

Frequency Range



0-4 GHz

VSWR

(Voltage Standing Wave Ratio)

Straight type ≤ 1.22/3GHz,
R/A type ≤ 1.30/3GHz

Dielectric Withstanding Voltage



1500 V rms

Working Voltage



500 V rms

Center Contact Resistance



≤ 1.5 mΩ (Milliohms max.)

Outer Contact Resistance



≤ 2.0 mΩ (Milliohms max.)

Insultation Resistance



≥5 × 10³ mΩ (Milliohms min.)





Mechanical Characteristics

Coupling



Bayonet

Contact Retention



6 lbs min

Mating Durability



≥500 cycles



Our this product line features popular coaxial cable, RF connectors, RF cable and other high quality coaxial products such as SMA connectors, coax adapters, and tools.

RF Coaxial cable assemblies are available in 50 Ohm and 75 Ohm styles. In addition, We stocks hundreds of low loss 50 Ohm antenna RF cable assemblies, pigtails and bulk cable for all your wireless connectivity needs.
Coax interfaces include: BNC, SMA, TNC, Type F, RCA, SMB, MCX, MMCX, Type-N, and more. We carry coax RF connectors and tools such as cable strippers, coaxial crimp tools, compression tools, and pin crimp tools to accommodate all of your coaxial termination requirements.



Product Details:

N Male To DIN 7/16 Female Rf Cable Connector DFNM Base Station Project Test 0

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2. What is the Minimum order quantity ?

It is depending on items, it is usually 100 pcs. Samples can be offered. Welcome to inquiry.



3. What is the delivery time?

The delivery time usually is about 7-14 days after your order.



4. What about the samples?

We can supply samples. But we should charge the sample fee.



5. What is our Shipping & Trade terms?

Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.
Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Trade terms: EXW, FOB , CIF etc.
