Brand Name:
RY
Model Number:
RY-4g-300-S
Certification:
CE,ROHS
Place of Origin:
China
Contact Us
Video

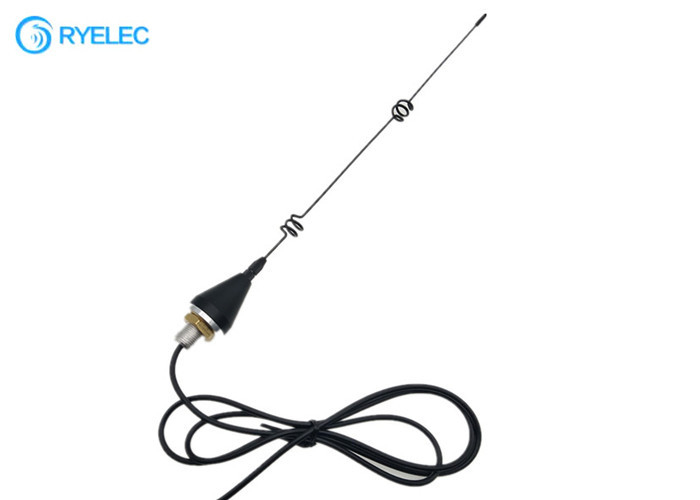

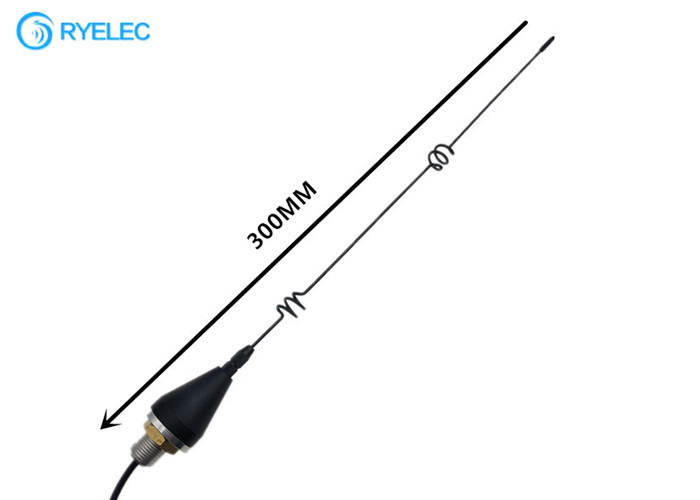

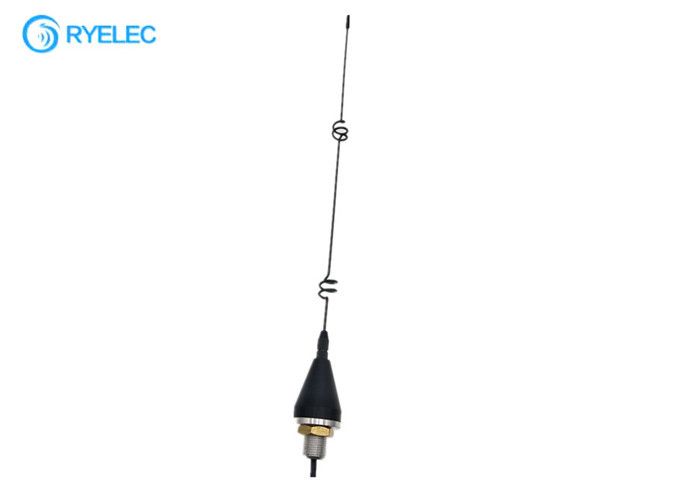

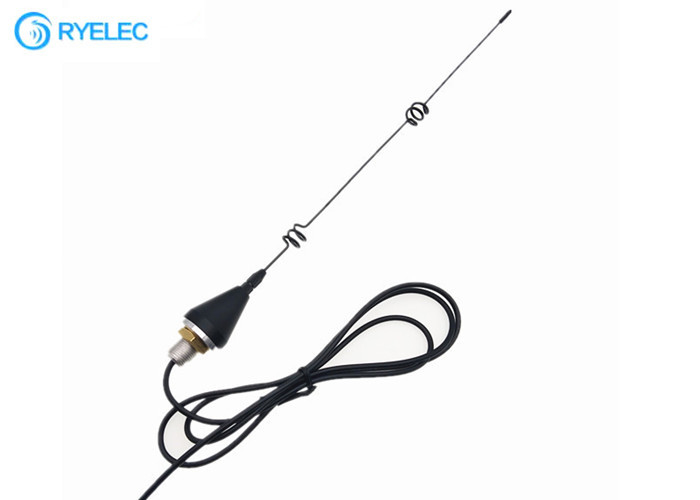

High Gain GSM 2.4G 3G 4G Helical Coil Antenna 7.5dBi Screw Base Mount With 1 Meter Cable
Electrical Characteristic:
Item | Specifications | |
| Antenna | Frequency Range | 824~960/1710~2170MHz/2700MHz |
Polarization | Linear | |
Gain | 7.5dBi | |
V.S.W.R | <2.0 | |
Impendance | 50 ohm | |
| Mechanical | Cable | RG174 |
Connector | SMA/FAKRA or others | |
Radome Material | ABS | |
Mounting Method | Screw | |
| Environmental | Operating Temperature | -40°C to +85 ° |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
☀ We are RY Communication, we can provide different type wifi antennas of different gain.
☀Our wifi antennas are mainly use in Wireless Router to Enlarge the wireless network signal.
☀ Our wifi antennas can be made in different gains and frequency, if you need, we can accept customized.
☀ Our wifi antennas can be made with different connectors such as sma connectors, tnc connectors and n connectors.
☀ We can also produce GSM antennas, indoor or out door panel antennas, sucker antenna and so on.
☀ If you need, we can also customized cable assembly used in antnna like sma to IPEX/UFL cable assemblies. For this product, please contact our sales deparment and get more details.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
magnetic mount antenna
Application:
1. The antenna radiates and receives radio waves. However, it is not radio waves that the transmitter sends to the antenna through the feeder. The receiving antenna can not send radio waves directly through the feeder to the receiver, which must go through the energy conversion process. Next, we take the radio communication equipment as an example to analyze the signal transmission process, and then explain the energy conversion function of the antenna.
2. At the transmitter end, the modulated high frequency oscillating current (energy) generated by the transmitter is fed into the transmitting antenna by the feeding device (the feeding device can transmit current wave or electromagnetic wave directly depending on the frequency and form). The transmitting antenna converts the high frequency current or guided wave (energy) into radio wave-free electromagnetic wave (energy) to the circumference. Circumferential radiation (see Figure 1); at the receiving end, radio waves (energy) are converted into high-frequency current or guided waves (energy) through the receiving antenna and transmitted to the receiver via the feeding device. From the above process, it can be seen that the antenna is not only a device for radiating and receiving radio waves, but also an energy converter and an interface device between circuit and space.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
