U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial

U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial

antenna coaxial cable

rf coaxial cable

Place of Origin:

China

Certification:

CE,ROHS

Model Number:

RY-MHF4SMA-081

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Application:
Electronic
1 Connector:
MHF4
2 Connector:
SMA Female
Length:
Customized
Samples:
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~2.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description


U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial

Electrical Characteristics:


ELECTRICAL DATA


Impedance

50Ω


Frequency range

DC-3Ghz


VSWR

1.3 max


Voltage

60V AC(rms)


Insulation Resisitance

500 MΩ min.


Insertion Loss

0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ


MATERIAL DATA


Bodies

Brass--gold /nickel plating


Pin contacts

Brass--gold plating


Socket contacts

Copper-beryllium alloy--Au plating


Insulator

PTFE


Cable type

0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240


Application

smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc


Temperature range

-40°C to +80°C



Product Details:

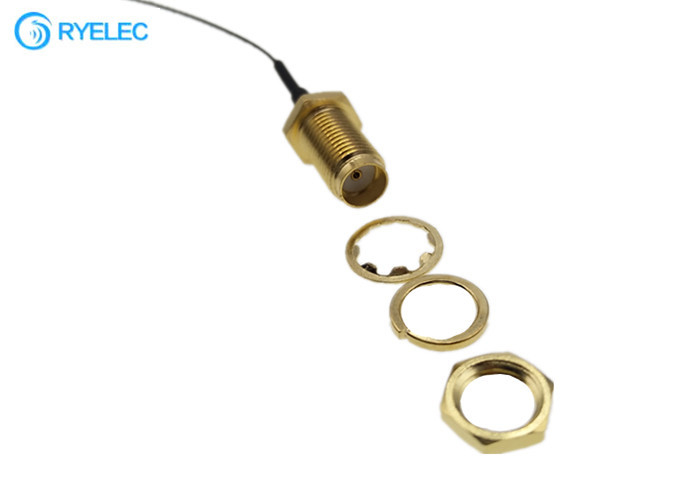

U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 0

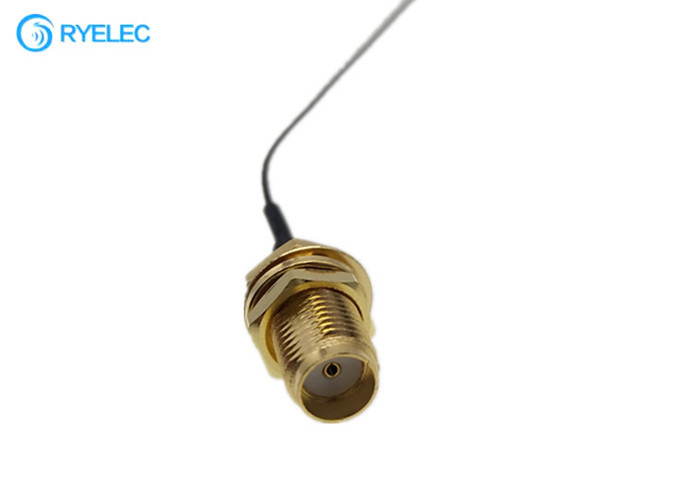

U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 1
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

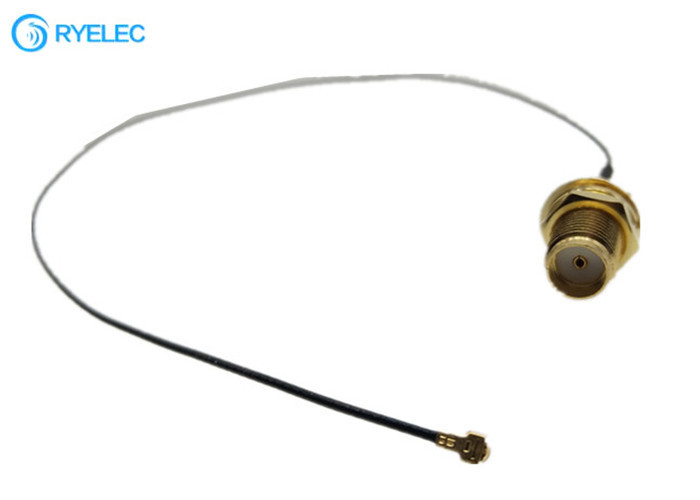

U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 2

Application:

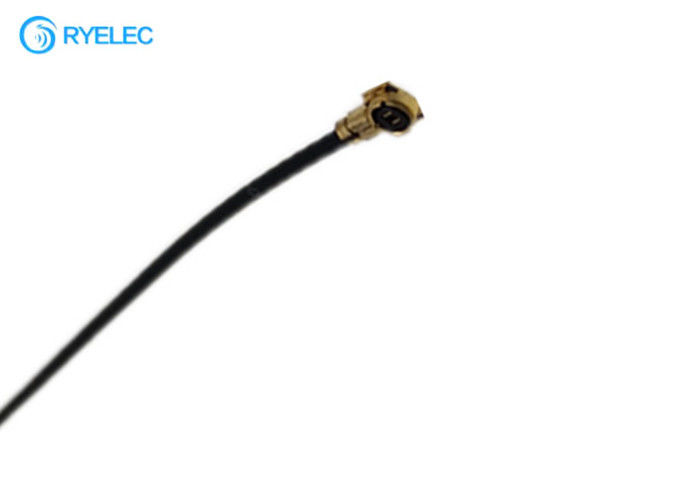

U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 3

Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals and etc.replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. and short delivery

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

Related Products:​
U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 4
U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 5
U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 6
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3. Can you do the design for us?
Yes. As we have many type of wire harness, pls sent your own drawing or pic for our reference .So that we can provide the quotation and spec more precisely and promptly.

4.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

5. What's your payment terms?
100 % T/T before delivery

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Payment:
U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 7
Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

U.FL Mini To SMA Pigtail Antenna WiFi Cable IPEX MHF4 SMA Female 0.81mm RF Jack Coaxial 8
