Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-NSMA2233 n male to sma male cable
Contact Us
Video

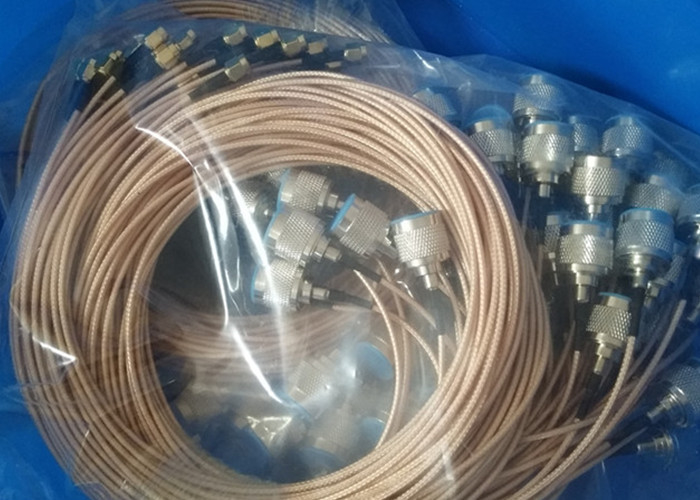

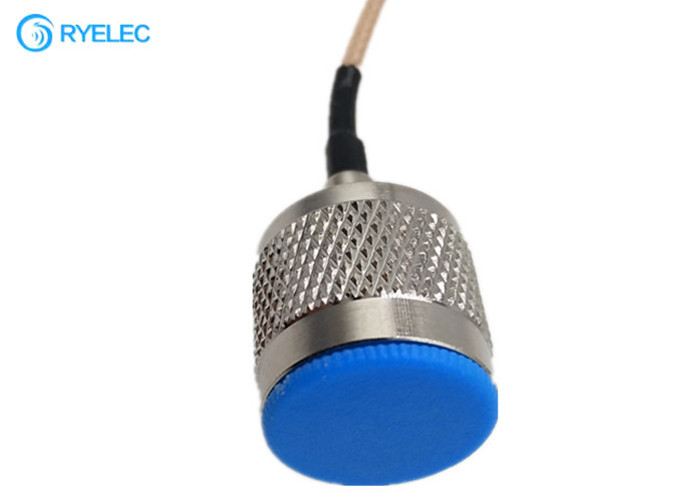

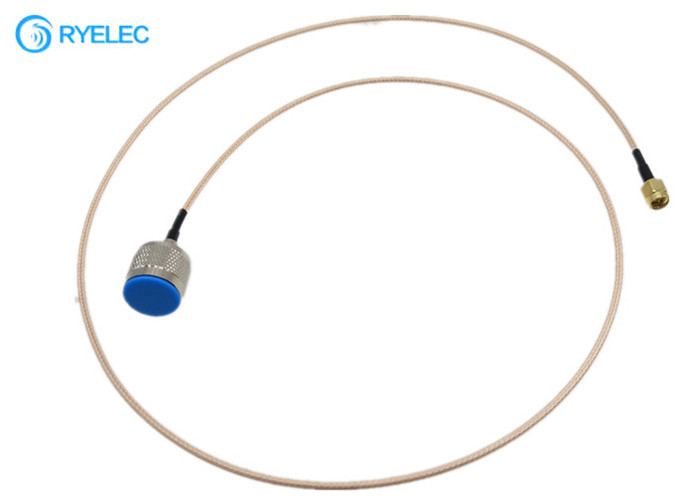

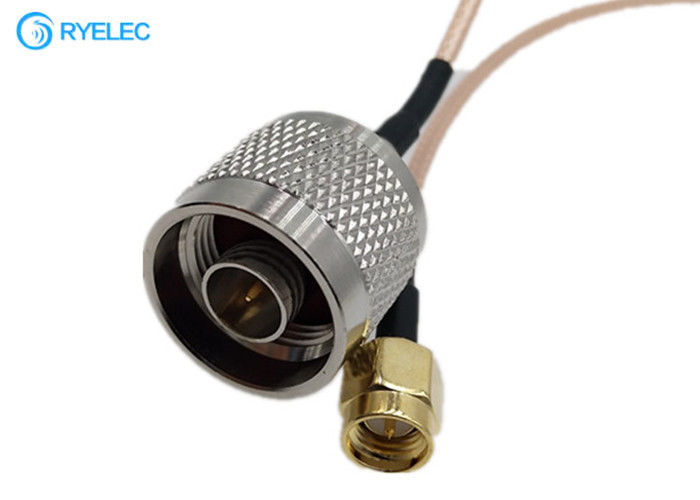

Low Loss RG316 Straight N Male to SMA Male RF Pigtail Cable For Wireless Communication Antenna
Electrical Characteristics:
| emperature range | -55—+155℃(PE Cable -40—+85℃) |
| Impedance | 50Ω,75Ω |
| Frequency range | DC-4GHz |
| Working voltage | 500V r.m.s at sea level |
| Withstanding voltage | 1500V r.m.s at sea level |
| Contact resistance | |
| Center contact | ≤1.5mΩ |
| Outer contact | ≤1 mΩ |
| Insulation resistance | ≥5000MΩ |
| Center conductor retention force | ≥0.57N |
| Insertion loss | ≤0.30dB/3GHz |
Product Details:
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Related Products:
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team
5. What's the warranty?
One year, 12 months.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
