Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-13sma-ufl
Contact Us
Video

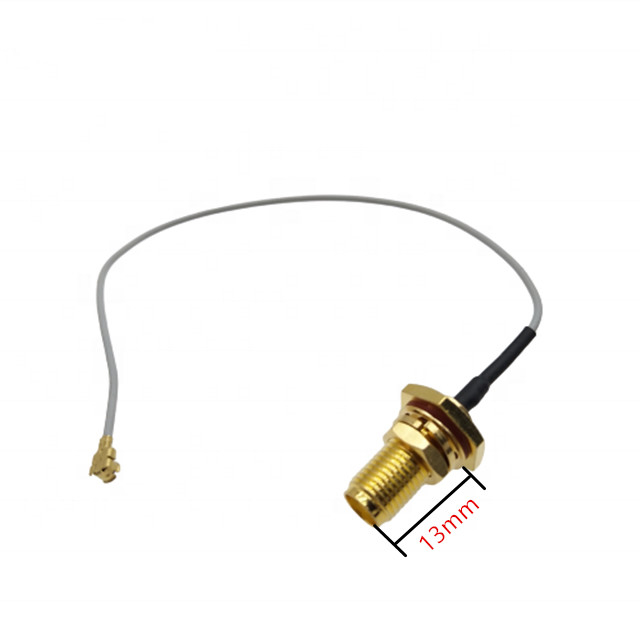

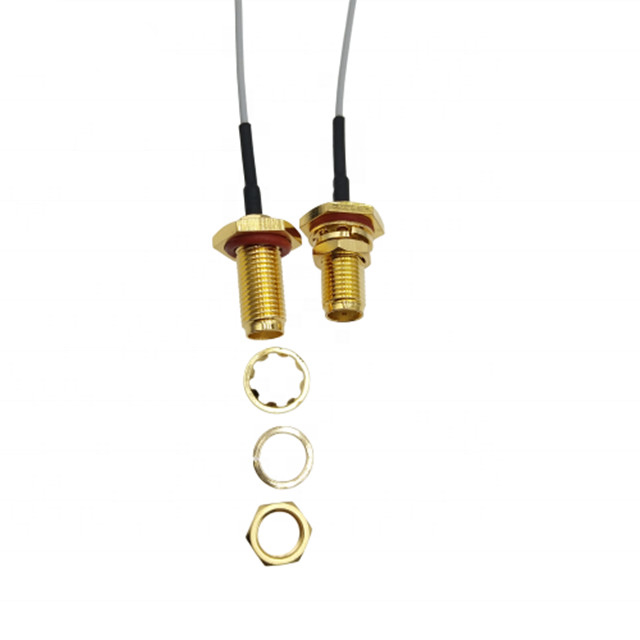

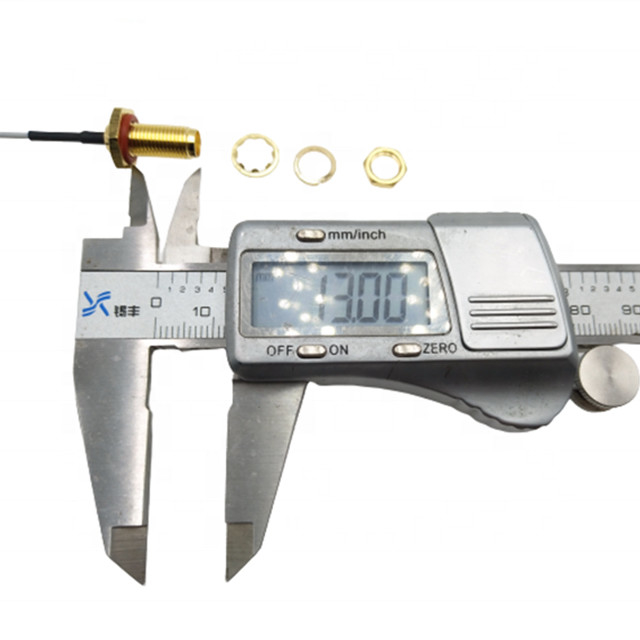

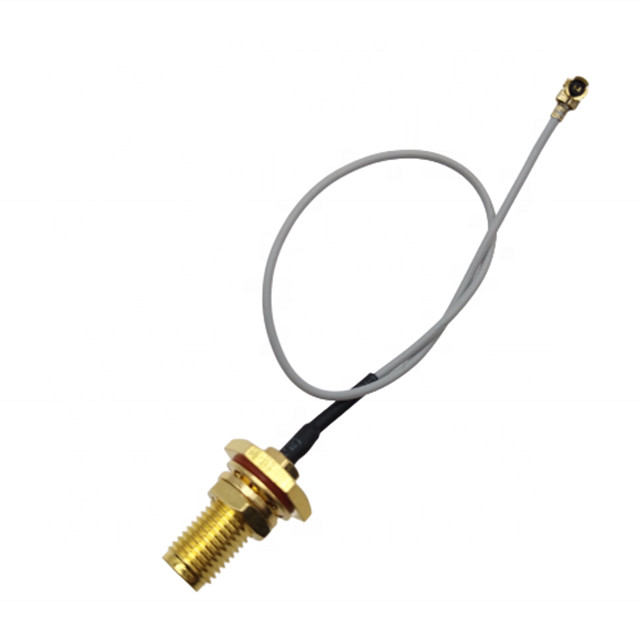

U.Fl To Waterproof IP67 SMA Female Connectors With 13mm Thread Coaxial RF Cable
Electrical Characteristics:
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range | DC-6Ghz |
| VSWR | 1.3 max |
| Voltage | 60V AC(rms) |
| Insulation Resisitance | 500 MΩ min. |
| Insertion Loss | 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ |
| MATERIAL DATA | |
| Bodies | Brass--gold/Nickel plating |
| Pin contacts | Brass--gold plating |
| Socket contacts | Copper-beryllium alloy--Au plating |
| Insulator | PTFE |
| Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240 |
| Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
| Temperature range | -40°C to +80°C |
Product Details:
Features:
50 Ohm data signal transmission;
The inner conductor could be stranded or solid;
Special insulation materials,providing good electrical property and welding performance;
Small diameter is ideal for tight fit applications;
Customized cable color , winding and connector, meet your different requirements;
RoHS compliant;
☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Related Products:
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
2. What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
3. What is your term of delivery?
We accept EXW, FOB Shanghai. You can choosethe one which is the most convenient or cost effective for you.
4. What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
Payment:
Delivery:
1. Sample order will be send in 3-5 days after payment.
2. 2-1000pcs, Lead time is 9-12 working days.
3. 1000-5000pcs,Lead time is 15 working days.
4. Over 5000pcs,lead time is 15-25 working days.
5. Parcel will be sent by DHL/UPS/Fedex/EMS or customers own shipping agent.
