6 Core G652D Anti Rodent GYTA Fiber Optic Cable Long Distance Telecommunication

6 Core G652D Anti Rodent GYTA Fiber Optic Cable Long Distance Telecommunication

GYTA Fiber Optic Cable

G652D 6 core fiber cable

GYTA 6 core fiber cable

Place of Origin:

China

Brand Name:

RY

Model Number:

RY-G652D-6

Contact Us

Request A Quote
Product Details
Certification:
UL/CE/ROHS
Application:
Aerial For Telecommunication
Core:
6
Type:
G652D
Strength Member:
Steel Wire FRP KFRP
Color:
Black
Package:
1km/roll/2km/roll
Name:
Optic Cable
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.79~0.82
Packaging Details
3000M/A Roll
Delivery Time
Shipped in 7 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000M
Product Description



6 Core G652D Anti-Rodent GYTA Areial Conduit Light Fiber Price Loose Tube Optic Cable



A fiber-optic cable, also known as an optical-fiber cable, is an assembly similar to an electrical cable, but containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable[1] are used for different applications, for example, long distance telecommunication, or providing a high-speed data connection between different parts of a building.



Optic Cable​ Electrical Characteristics:



Optocal Characteristics


G.652.D
G.655.D
50/125µm
62.5/125µm
Attenuation
@850nm


≤3.0dB/km
≤3.0dB/km
@1300nm


≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40 dB/km


@1550nm
≤0.22dB/km
≤0.32 dB/km


Bandwidth
@850nm


≥500MHZ●KM
≥200MHZ●KM
@1300nm


≥1000MHZ●KM
≥600MHZ●KM
Numerical Aperture


0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm


Technical Parameters


Cable Diameter mm


Cable Weight kg/km
Rec. daily max. working tension KN
Max. allowable working tension KN
Break strength KN
Strentth Member CSA mm2
Modulus of Elasticity kN/mm2
Heat
Expansion coefficient
x10-6/K
12.5
125
1.5
4
10
4.6
7.6
1.8
13.0
132
2.25
6
15
7.6
8.3
1.5
13.3
137
3.0
8
20
10.35
9.45
1.3
13.6
145
3.6
10
24
13.8
10.8
1.2
13.8
157
4.5
12
30
14.3
11.8
1.0
14.5
164
5.4
15
36
18.4
13.6
0.9
14.9
171
6.75
18
45
22.0
16.4
0.6
15.1
179
7.95
22
53
26.4
18.0
0.3
15.5
190
9.0
26
60
32.2
19.1
0.1
15.6
194
10.5
28
70
33.0
19.6
0.1
16.3
211
12.75
34
85
40.0
20.1
0.1
16.8
226
15.45
41
103
48.0
24.0
-0.4
17.2
236
16.2
45
108
51.0
25.1
-0.5
17.9
249
18.0
50
120
58.8
26.1
-0.8
Storage/Operating Temperature : -40℃ to + 70℃



Reliability And Quality?

Optical fibers are very strong, but the strength is drastically reduced by unavoidable microscopic surface flaws inherent in the manufacturing process. The initial fiber strength, as well as its change with time, must be considered relative to the stress imposed on the fiber during handling, cabling, and installation for a given set of environmental conditions. There are three basic scenarios that can lead to strength degradation and failure by inducing flaw growth: dynamic fatigue, static fatigues, and zero-stress aging.

Telcordia GR-20, Generic Requirements for Optical Fiber and Optical Fiber Cable, contains reliability and quality criteria to protect optical fiber in all operating conditions.[6] The criteria concentrate on conditions in an outside plant (OSP) environment. For the indoor plant, similar criteria are in Telcordia GR-409, Generic Requirements for Indoor Fiber Optic Cable



Optic Cable Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies
optical fibers cable and antennas router in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



Optic Cable Product Details:

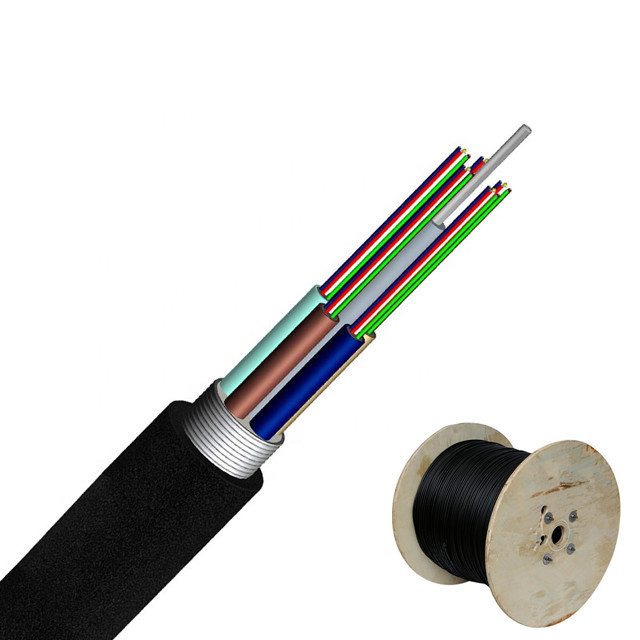

6 Core G652D Anti Rodent GYTA Fiber Optic Cable  Long Distance Telecommunication 0

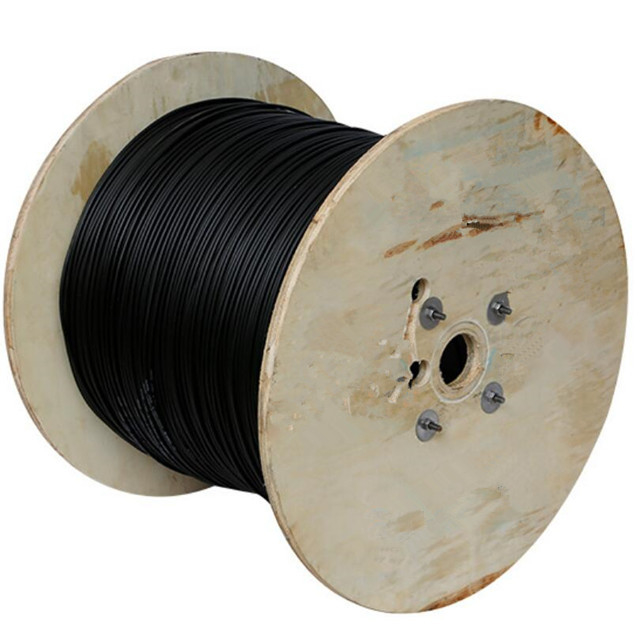

6 Core G652D Anti Rodent GYTA Fiber Optic Cable  Long Distance Telecommunication 1

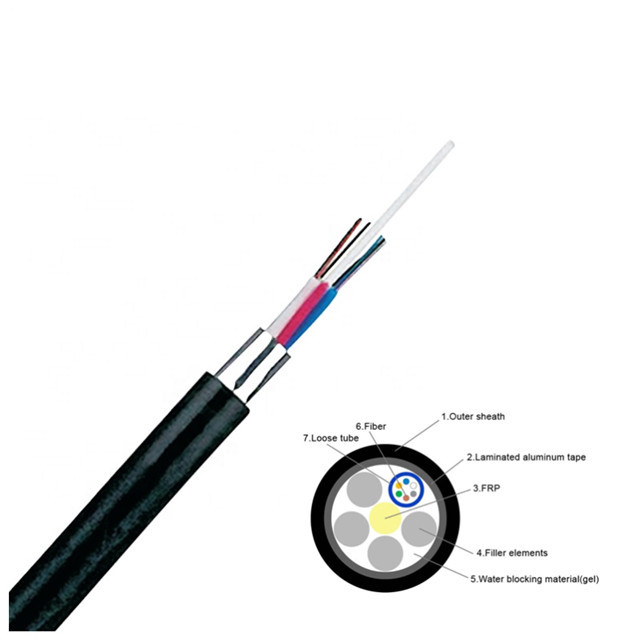

6 Core G652D Anti Rodent GYTA Fiber Optic Cable  Long Distance Telecommunication 2

6 Core G652D Anti Rodent GYTA Fiber Optic Cable  Long Distance Telecommunication 3

6 Core G652D Anti Rodent GYTA Fiber Optic Cable  Long Distance Telecommunication 4
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
