BUS Car 4G LTE Preload OpenWRT 5ghz Wireless Router Modem

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-WE1026-5G
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD38~42
Packaging Details: 35*21*6cm/Pcs
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability: 100000
Contact Now

Detail Information

Max. LAN Data Rate: 1000Mbps Standards And Protocols: Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac
Wi-Fi Supported Frequency: 2.4G & 5G Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100Mbps 2.4G Wi-Fi Transmission Rate: 300 Mbps
Function: FireWall, QoS, VPN Antenna: 2*2.4G Antennas, 2*5G Antennas
High Light:

BUS openwrt wireless router

,

Car openwrt wireless router

,

BUS openwrt 5ghz router

Product Description



BUS Car Wifi Industrial 4G LTE Preload OpenWRT Wireless Router Modem With Sim Card Slot



What's a 4G router?
A 4G WiFi router, containing a built-in LTE broadband modem, uses a SIM card to share internet connections. ... It can provide internet connections using a telephone line. Connect the cables and subscribe to broadband services from DSL service providers, then you can enjoy a stable and reliable network.



4G Router Electrical Characteristics:



Hardware
RAM
DDR2 128MB (Max 256MB)
FLASH
16MB (Max 32MB)
Antenna
7 external 5dbi OMNI antennas
(4 for Wi-Fi antennas, 2 for 3/4g module antenna, 1 for GPS antenna, the details need according to customer’s requirements)
Interface
1* 10/100M Auto MDI/MDIX LAN
Button
Reset
LED
Power,WLAN,LAN,3G/4G,USB,5G
Power
Input 12V 1A(9-28V)
Consumption
<=15W
Product Size
125.5*100.5*25mm
Wireless
Protocol Standard
IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b,
IEEE 802.11a,
IEEE 802.11ac
Wireless Rate
2.4GHz: Up to 300Mbps
5.8GHz: Up to 900Mbps
Work Frequency
2.4G:2412 MHz-2484MHz(channel 1 -channel 14).
5.8G: 5725MHZ-5850M(channel:149, 153, 157, 161, 165)
RF Output Power
802.11b 18dBm±2dBm
802.11g 15dBm±2dBm
802.11n 15dBm±2dBmu
802.11a 20dBm±2dBm
802.11ac 20dBm±2dBm
Receive sensitivity
802.11b <=-76dBm
802.11g <=-65dBm
802.11n <=-61dBm
802.11a <=-64dBm
802.11ac <=-59dBm
PPM
±10
Distance
50 Meters radio
QTY of current users
45-55users
Wi-Fi security
64/128/152 WEP
WPA-PSK/WPA2-PSK
WPA/WPA2 Security system


How to choose a 4G router for your business?

There are many 4G routers on the market, offering a wide variety of features. You need to make sure that the router provides functionality and flexibility for your solution needed. Here are the main things to consider when you a compare 4G routers for your business.

Multi-SIM
For speed and reliability in a 4G WAN connection, you’ll need a router that supports more than one cellular connection. This is usually referred to as multi-SIM. Look out for a router that supports this.

SIM Capacity
The performance and throughput of a Multi-SIM router is ultimately limited by the number of simultaneous cellular connections it can support. This is usually referred to by the number of SIMs it can accommodate. However, be aware of the difference between connections and SIMs: a router may allow you to insert two SIMs in case one of them fails, but not be able to use both at the same time. We normally choose a router with the SIM capacity required for your expected usage (eg 6 SIMs). Some routers can be stacked to allow more SIMs (we’ve often used 18 SIMs) in heavy usage scenarios.

Cellular Technology
Most routers today support a version of the 4G standards called Category 4 LTE. Some manufacturers are rolling out support for Category 6 LTE, which uses two chunks of spectrum rather than one, to double the theoretical maximum download speeds from 150 Mbps to 300 Mbps. Cat 6 LTE is still being rolled out by the mobile carriers, so it isn’t available everywhere. However, it’s worth considering routers that support it, in order to future-proof your investment. There are a number of interchangeable terms: look for Cat 6 LTE, LTE-Advanced (aka LTE-A) and 4G+.

Bonding
A router that can bond (ie combine) the traffic streams from multiple SIMs into one, will allow you to have a faster, more reliable connection to your company network. This is essential if you’re planning to connect a multi-user site to your company network using 4G WAN, and especially if you need a very reliable connection for sensitive applications (see Managed Hubs). The rationale for bonding is primarily to provide a reliable and stable connection, with performance as a by-product.

Load Balancing
Alternatively, a router that can Load Balance can spread the usage of several separate users and sessions across several SIMs. This can provide flexibility, but no single session can be faster than the SIM its using can support, and if any single cellular connection drops out, the reconnection time can be measured in seconds, which the user will notice! Find out more here in our blog: 4G WAN Bonding vs Load balancing.

SIM Failover
Typically found in single-connection routers, SIM failover allows two SIMs to be inserted, so that the second can be switched-in if the first fails (or if the first is blocked when usage climbs too high).

Prioritisation by traffic type
Some routers can be set to optimise the performance of your 4G WAN connection. They might prioritise (and de-prioritise) different traffic types. They might route those traffic types over different cellular connections according to the real-time performance of the connections (eg latency and reliability of the connection). If you have performance sensitive applications, or if you are delivering traffic using performance sensitive applications like Citrix, you will need these features for optimum results. This is only really relevant when bonding, because bonding allows you to control priority in both directions, both to and from the site. If you load balance on multi-sim, you can only control priority in one direction (outbound) – you cannot influence the inbound priority.

Caching
Some routers will allow you to cache data. When multiple users access the same intranet pages or stored files, for example, caching allows them to access it faster and with less data usage.

Other WAN interfaces
Some routers will allow you to connect an additional WAN circuit that can be used alongside the cellular connections. The rationale would be to allow the use, where available, of a connection that is faster, cheaper or has more capacity than the cellular connections. The additional connection might be a DSL, EFM or satellite circuit, or perhaps the ability to connect into a WiFi hotspot. It might be implemented as an Ethernet port, or perhaps a dedicated DSL port.

WiFi
Some 4G routers provide WiFi, access for users, reducing the need for additional equipment in small installations. Some will provide isolated guest access. Some will provide private corporate access as well a public guest access via a captive portal to enable you to force guests to provide details about themselves.

WiFi controller
Some routers can act as the WiFi controller for a number of WiFi access points, simplifying WiFi deployment and extending the coverage in larger installations.

Modular Design
Some router manufacturers use fixed router configurations, keeping the deployment as simple as possible. Others employ a modular design in which cards are inserted for the particular application. For example, two 4G cards might be installed on one occasion and a 4G card plus a DSL card on another. This can be helpful if you envisage re-using the device in different locations. It can also allow you to install with 4G and then later to migrate seamlessly to a fixed circuit (eg DSL or EFM) once that is installed. This is particularly useful if you need to install rapidly and/or if you would like to retain the 4G card for backup once a fixed circuit is installed. See our Rapid Site Deployment for a next day infrastructure delivery.

Power over Ethernet (POE)
Some 4G routers can provide Power over Ethernet, to devices that are plugged into their Ethernet ports. This allows you to provide power to Wireless Access Points or IP phones without having to buy separate power over ethernet switches or power injectors.

Reporting
Some devices provide detailed reporting on cellular usage, including information on which devices are driving the usage. This can be very helpful in managing costs.

What Hardware do we use?
Having explored the features to compare in a 4G WAN router, an obvious question is: “ What is the best 4G router for business use?” We have built up a lot of experience from deploying 4G WAN technology to hundreds and hundreds of sites. Over the years we have settled on one manufacturer for the majority of our installations: Peplink.

Peplink offers:
True multi-SIM, multi-carrier bonded connections.
The ability for remote site users to access the service via WiFi (without additional hardware)
The ability to configure local breakout to the internet (not through the tunnel to the data centre)
The ability to have 2 SIMs for every modem (even on single modem devices) … so that if you lose one carrier, you can continue working.
A management portal that allows you to manage usage and monitor performance
A proven supplier, recognised on Gartner’s Magic Quadrant for WAN edge infrastructure



4G Router Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies
optical fibers cable and antennas router in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



4G Router Product Details:

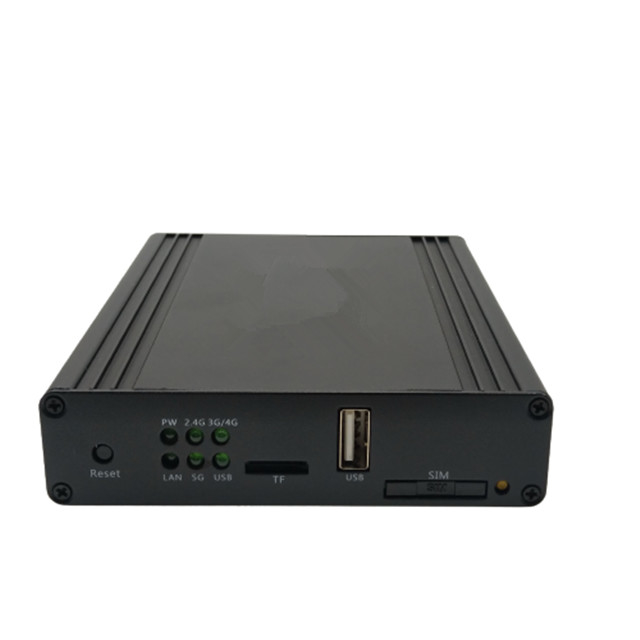

BUS Car 4G LTE Preload OpenWRT 5ghz Wireless Router Modem 0

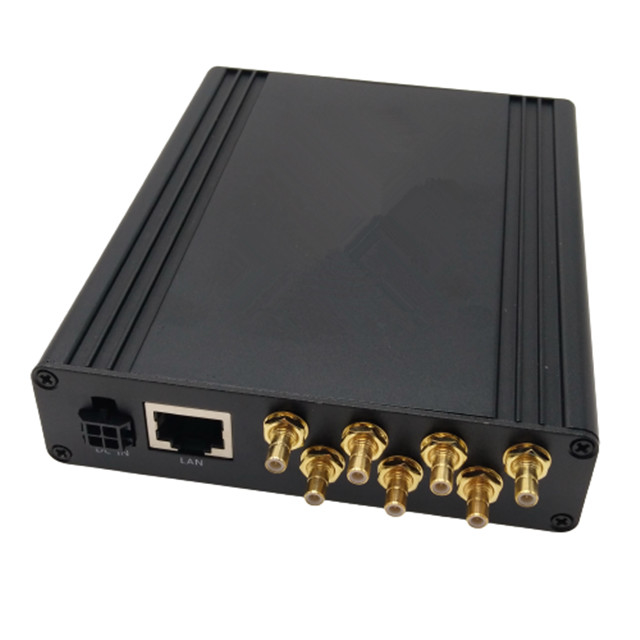

BUS Car 4G LTE Preload OpenWRT 5ghz Wireless Router Modem 1

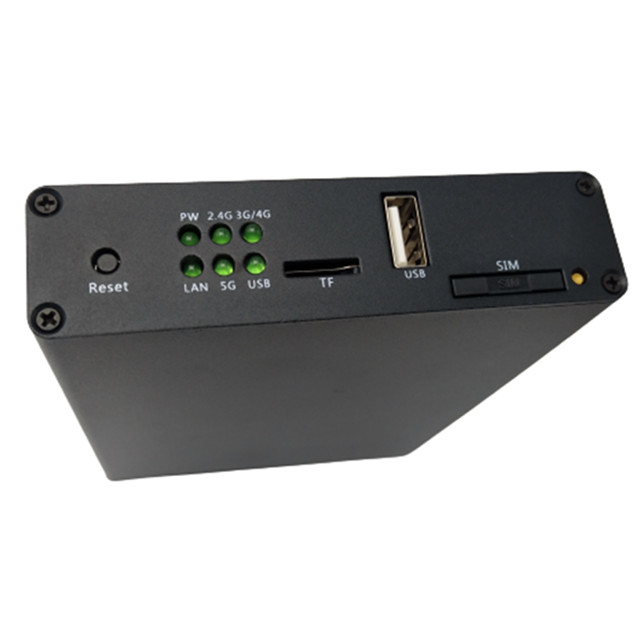

BUS Car 4G LTE Preload OpenWRT 5ghz Wireless Router Modem 2

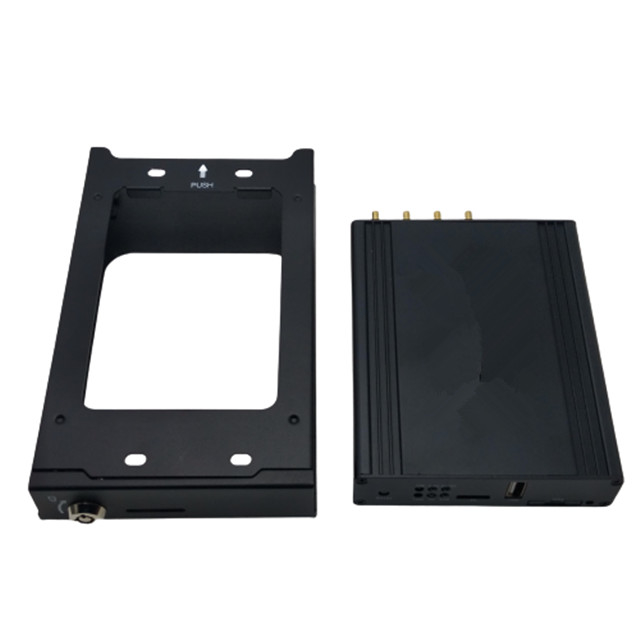

BUS Car 4G LTE Preload OpenWRT 5ghz Wireless Router Modem 3

BUS Car 4G LTE Preload OpenWRT 5ghz Wireless Router Modem 4


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
