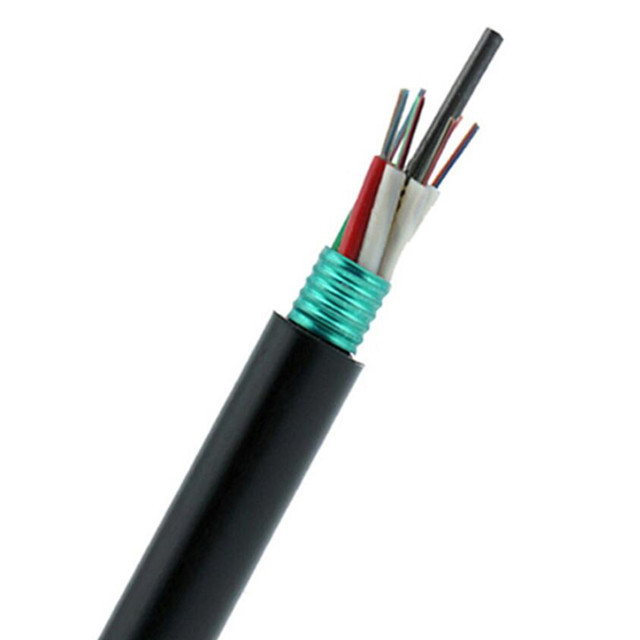

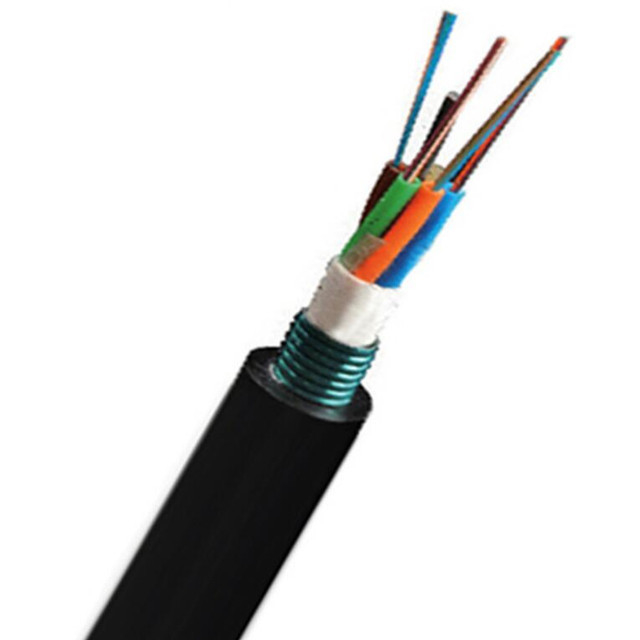

GYTS-6B1.3 6 Core Single Mode Armoured GYTS Fiber Optical Cable For Underground

Outdoor GYTS-6B1.3 6 Core Gingle Mode Armoured GYTS Fiber Optical Cable For Underground

How fiber optics works?

Fiber optics transmit data in the form of light particles -- or photons -- that pulse through a fiber optic cable. The glass fiber core and the cladding each have a different refractive index that bends incoming light at a certain angle. When light signals are sent through the fiber optic cable, they reflect off the core and cladding in a series of zig-zag bounces, adhering to a process called total internal reflection. The light signals do not travel at the speed of light because of the denser glass layers, instead traveling about 30% slower than the speed of light. To renew, or boost, the signal throughout its journey, fiber optics transmission sometimes requires repeaters at distant intervals to regenerate the optical signal by converting it to an electrical signal, processing that electrical signal and retransmitting the optical signal.

Fiber optic cables are moving toward supporting up to 10-Gbps signals. Typically, as the bandwidth capacity of a fiber optic cable increases, the more expensive it becomes.

Optic Cable​ Electrical Characteristics:

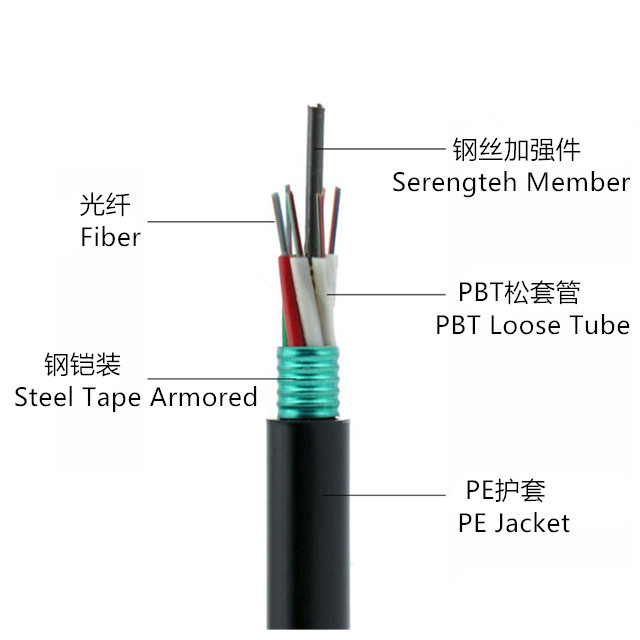

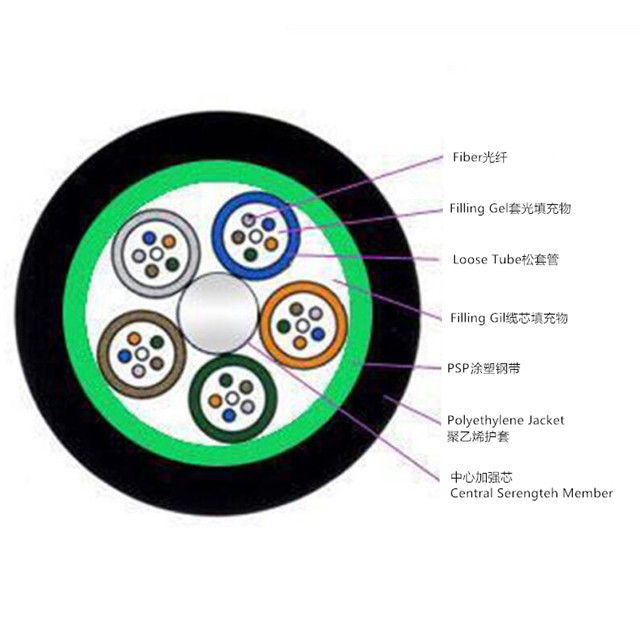

GYTS optical cable structure is to put 9 / 125 μ m single-mode optical fiber or 50 / 125 μ m, 62.5/125 μ m multimode optical fiber (silica) into the loose tube made of high water blocking material, and the loose tube is filled with water blocking compound material. The center of the cable core is a metal reinforced core. For the multi-core optical cable, the reinforced core needs a PE jacket. The loose tube and filling rope are twisted with each other around the center reinforcing core, and the cable core is compact and round. The gap in the cable core is filled with water blocking filler. The double-sided corrugated steel strip (PSP) is longitudinally wrapped and then extruded with polyethylene sheath to form cable. Characteristics of GYTS optical cable:

The loose tube material itself has good hydrolysis resistance and high strength The tube is filled with characteristic grease, which provides key sealing protection for the optical fiber PE sheath has good anti ultraviolet radiation performance The center reinforcing core of a single steel wire is helpful for the parallel and stretching of the optical cable It has good mechanical properties and temperature characteristics, such as tensile resistance, wear resistance, impact resistance, flat pressure resistance, repeated bending, torsion, bending and winding (bending angle not exceeding 90 °) The double-sided corrugated steel strip (PSP) improves the anti moisture ability of the optical cable. At the same time, the corrugated part can be better combined with PE to make the structure more solid. The GYTS single-mode optical cable produced by Fuxin Xintong Cable Co., Ltd. has the advantages of fast transmission speed, long distance, good confidentiality, anti electromagnetic interference, good insulation, good chemical stability, long service life and low loss, which has good characteristics and economic benefits.

Application scope and laying:

Suitable for long distance communication and inter office communication Laying mode: overhead pipeline Applicable temperature range: - 40 ℃ - + 70 ℃

Optic Cable Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies optical fibers cable and antennas router in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.

4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.

Optic Cable Product Details:

RFQ:

1. Are you the real factory?
Yes we are the real factory with 16 years history

2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?
20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

5. What is your delivery time?
Within 48 hours for 30KM normal kinds of fiber optic cable

6. MOQ: what is your minimum quantity?
MOQ for fiber optic cables 3KM
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds

7. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered

8. Payment
For large orders: T/T LIC
For small orders: T/T Western Union and Paypal are acceptable

9. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
