NTC Thermistor MF52AT 10kohm 50K Electrical Wiring Harness

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS,ISO
Model Number: RY-MF52-103F-3435-2000L
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.5~3.0
Packaging Details: sample size:18*12*9cm,40*40*20cm..etc
Delivery Time: Shipped in 9 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1000000pcs
Contact Now

Detail Information

Usage: SENSOR Sample: Sample Can Be Provided For Evaluating
Model: MF52-103F-3435-2000L Length: 50m..(we Can Customize)
Pitch: 1.0/1.25/2.0mm/2.54mm.. Test: 100% Testing Inspection
Temperature Range: -20~105C Name: MF52 Thermistor Cable
High Light:

MF52AT Wiring Harness

,

NTC Thermistor cable wire

,

10kohm MF52AT Wiring

Product Description



NTC Thermistor Thermal Resistor MF52 NTC-MF52AT 1K 2K 3K 10K 10kohm 50K With 2P Cable



① MF - negative temperature coefficient (NTC) thermistor code.
② 52 - NTC thermistor of epoxy resin encapsulated temperature sensor.
③ 103 -- the nominal resistance of the thermistor, which means that the nominal resistance of the thermistor is 10 × 103 (Ω).
④ F -- error (precision) of resistance value: F = ± 1%, g = ± 2%, H = ± 3%, j = ± 5%
⑤ 3950 -- thermal sensitivity index (material coefficient) b value of resistance: 395 × 10 (k)



Electrical Characteristics:



Model Rated resistance(R25) value

work

temperature

Dissipation coefficient(mW/℃) Thermal time constant(S)

Resistance value

(KΩ)

Allowable deviation

(± %)

Nominal value

(K)

MF52-102-3435 1

±1%

±2%

±3%

±5%

3435

-40℃

~

+200℃

≥2.0



≤15



MF52-202-3435 2 3435
MF52-2.252-3950 2.252 3950
MF52-472-3950 4.7 3950
MF52-502-3470 5 3470
MF52-502-3950 5 3950
MF52-682-3950 6.8 3950
MF52-103-3435 10 3435
MF52-103-3470 10 3470
MF52-103-3600 10 3600
MF52-103-3950 10 3950
MF52-103-3977 10 3977
MF52-103-4100 10 4100
MF52-153-3950 15 3950
MF52-203-3950 20 3950
MF52-233-3950 23 3950
MF52-303-3950 30 3950
MF52-333-3950 33 3950
MF52-40.27-3950 40.27 3950
MF52-473-3950 47 3950
MF52-503-3950 50 3950
MF52-503-3990 50 3990
MF52-503-4050 50 4050
MF52-104-3950 100 3950
MF52-104-3990 100 3990
MF52-104-4200 100 4050
MF52-204-3950 200 3950
MF52-204-4260 200 4260



The resistance table is the RT relation table of NTC thermistor temperature sensor, which mainly reflects the different resistance values of NTC at different temperatures. The correct parameters play a very important role in software development. The standard RT table generally includes several main parameters: ① nominal resistance value; ② b value; ③ allowable tolerance resistance value within ± range

NTC thermistor, in the low temperature range of use, the resistance value of 10K is the most common, the most widely used and the most economical

Nominal resistance: 10K K Ω @ 25 ℃; tolerance accuracy: 1%

B value: 3435K@25/50 The accuracy of B value is 1%



Application:

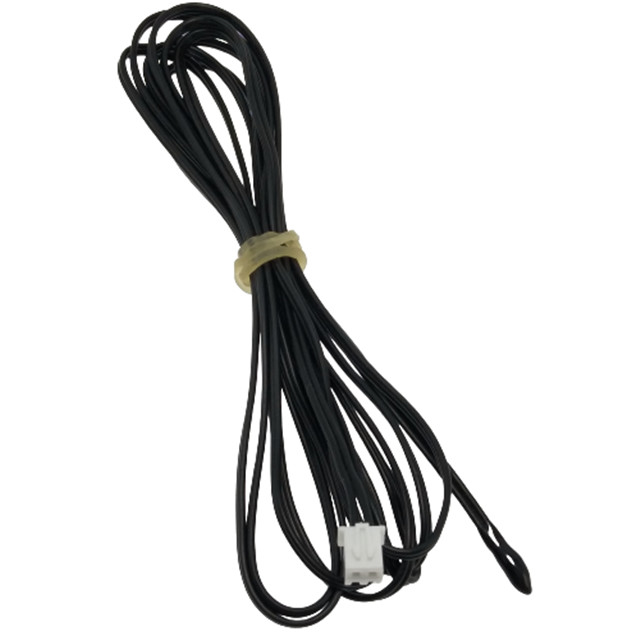

NTC Thermistor MF52AT 10kohm 50K Electrical Wiring Harness 0

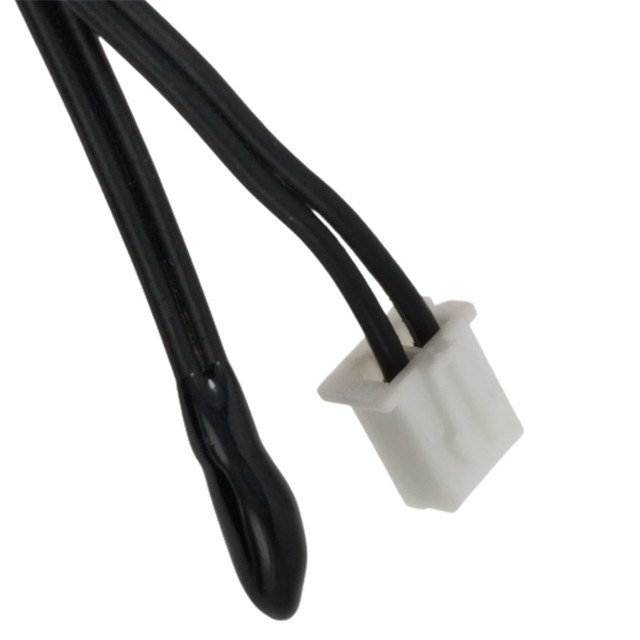

NTC Thermistor MF52AT 10kohm 50K Electrical Wiring Harness 1



Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.

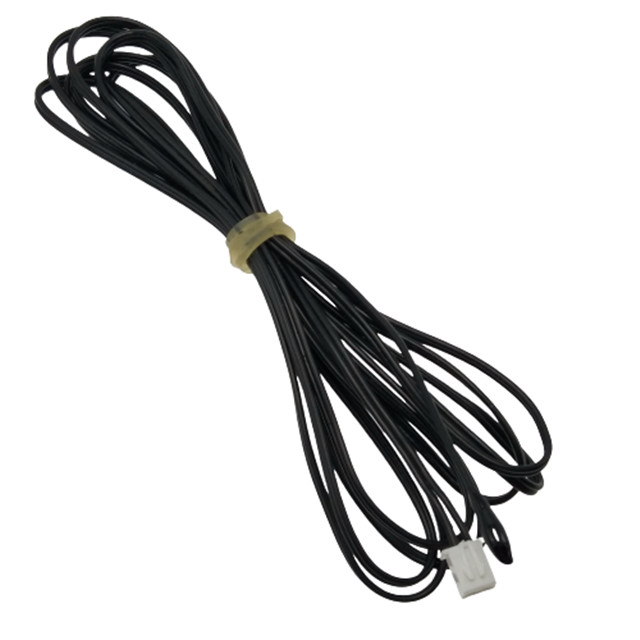

NTC Thermistor MF52AT 10kohm 50K Electrical Wiring Harness 2



Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Payment:

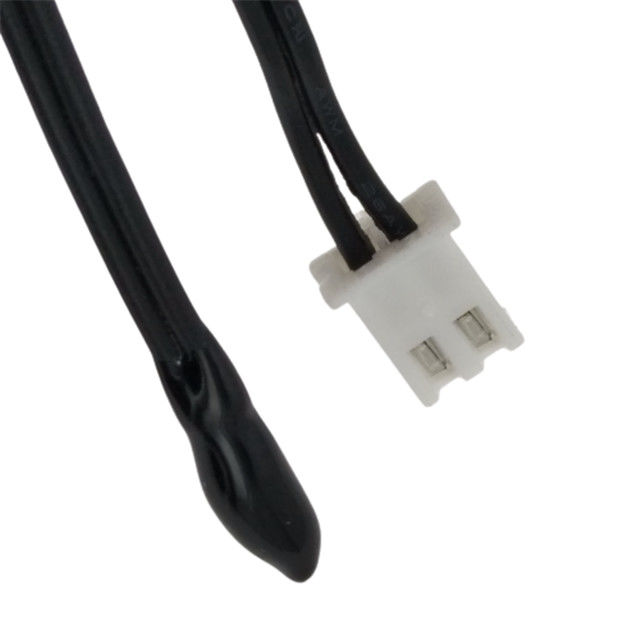

NTC Thermistor MF52AT 10kohm 50K Electrical Wiring Harness 3
Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
