Ul1571 32 Awg Custom Harness 0.8mm Pitch 10 Pin DF52-10P-0.8C Hirose PVC Cable
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||20|
|Packaging Details:||sample size:18*12*9cm,40*40*20cm..etc|
|Delivery Time:||Shipped in 9 days after payment|
|Payment Terms:||L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P|
|Awg:||16awg||Sample:||Sample Can Be Provided For Evaluating|
|Connector:||JST-VH||Length:||50m..(we Can Customize)|
|Pitch:||3.96MM||Test:||100% Testing Inspection|
JST VH-3.96MM 16AWG Cable Wire,
2Pin 16AWG Cable Wire,
ST VH-3.96MM Insulated cable wire

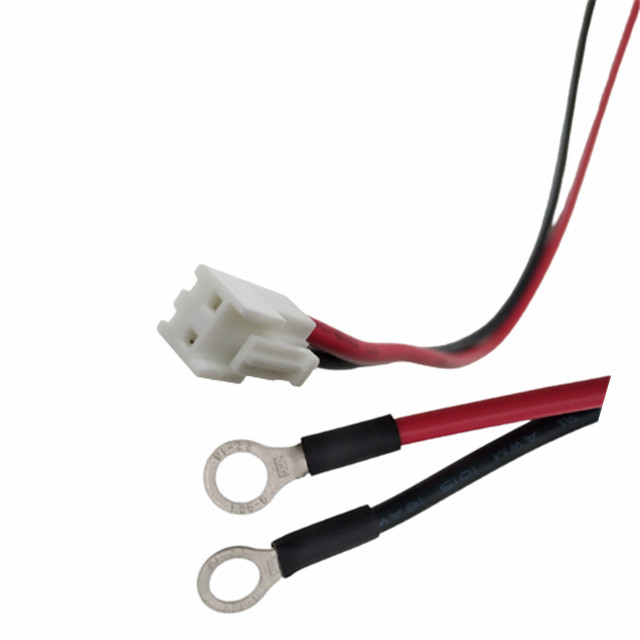

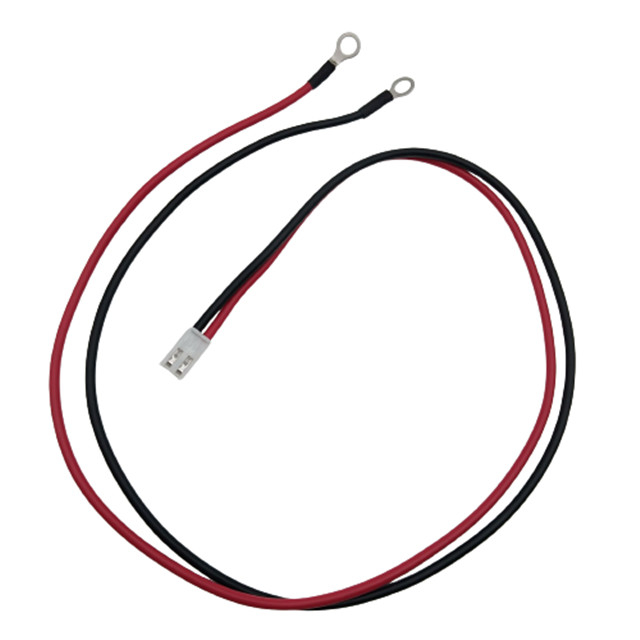

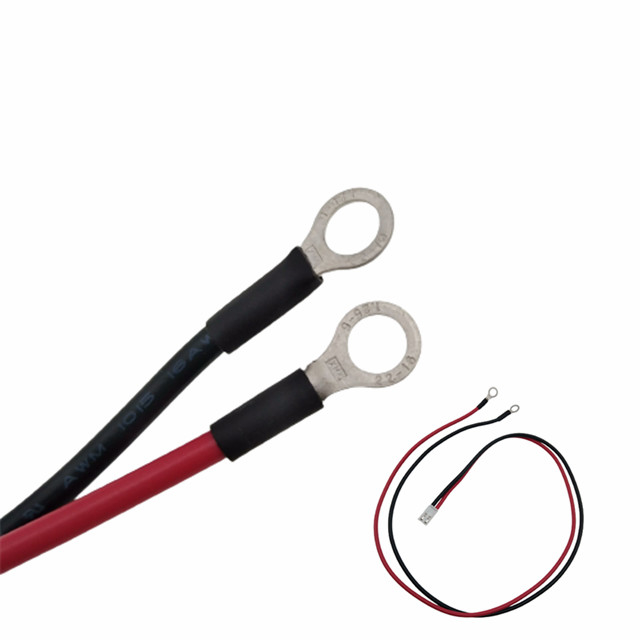

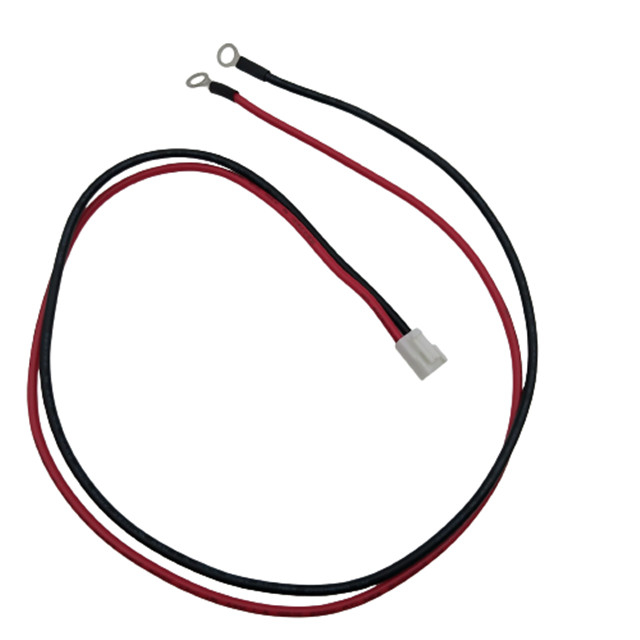

2Pin JST VH-3.96MM With Earth Speaker Cable Wire 16AWG 1015 PVC Copper Insulated
Ul1015#16 electron wire
1. Conductor: single or multiple strands of tinned copper wire
2. Insulation material: commonly used heat-resistant PVC insulation
3. Rated temperature: 105 ℃
4. Rated voltage: 600V
5. Combustion test: it can pass VW-1 and FT1 vertical combustion test
6. Safety regulation: UL758, can pass UL SF-2 test
7. Environmental protection: comply with EU ROHS environmental protection directive and pass SGS test
8. Features: acid and alkali resistance, oil resistance, moisture and mildew resistance
9. Lettering: e336285 AWM 1015 16awg VW-1 105 ℃ 600V C AWM ia 105 ℃ 600V FT1 Zhongzheng - LF-
10. Color: red, black, blue, white, yellow, green, purple, orange, gray and brown
11. application: widely used in aviation, metallurgical oil, electronic instruments, instruments, household appliances, transformers and motor leads
WHAT IS A WIRING HARNESS?
To put it simply, a wiring harness is a group of wires bundled together. A wiring harness can be very small in size such as a small group of wires found in your computer or car. A wiring harness can also be very huge such as some of the ones that InterConnect manufactures for aircraft. These huge wiring harnesses may have thousands of wires in them and hundreds of connectors. The finished wiring harness may weigh over 100 pounds and cost over $50,000.
When I meet people and they ask what a wiring harness is, I give them the example of an extension cord. When you buy an extension cord you are buying a small wiring harness. Wiring harnesses have many different names including: electrical wiring harnesses, looms, cable assemblies, coax cables, RF cables, injection molded cable assemblies, fiber optic cables, and many times are simply called harnesses.
Wiring harnesses are important for aircraft because they can be installed as one unit instead of one wire at a time. It is much easier to build them on a table in a production area such as InterConnect Wiring’s production area as opposed to putting in wires one at a time in an aircraft and then connecting each wire to a connector or terminal or a splice. It is much easier and faster to route a group of wires already bundled together than routing them individually.
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.
4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.
2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.
3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.
4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.
5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
