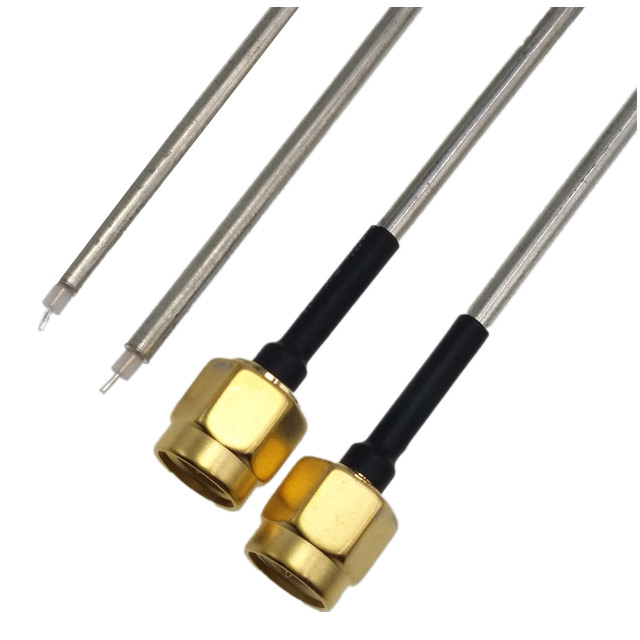

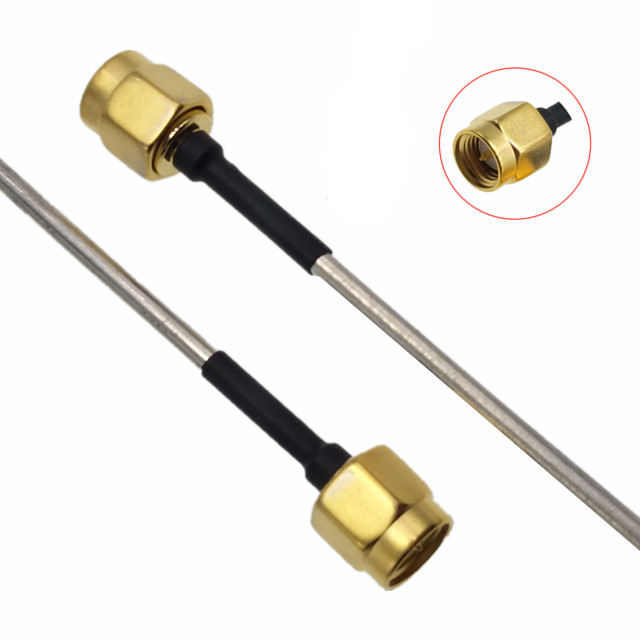

Straight 50ohm Semi Rigid RF Pigtail Coaxial Cable SMA Male To SMA Male

Straight 50ohm Semi Rigid RF Pigtail Coaxial Cable SMA Male To SMA Male

Semi Rigid coax pigtail

Semi Rigid rf pigtail

50ohm rf pigtail

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-SMASMA-407

Contact Us

Request A Quote
Product Details
Connector:
SMA Male Or Customizable
Frequency Range:
DC-6GHz/DC-3GHz
Cable Type:
RG0.81/RF1.13/RG405/RG407
Impedance:
50ohm
Material:
Copper +PVC
Length:
20cm / Customized
Name:
SMA Semi-rigid Cable
Service:
OEM ODM
Temperature Range:
-40C~+80C
Payment & Shipping Terms
Minimum Order Quantity
50
Price
USD2.0~4.5
Packaging Details
sample carton:17*12*4cm / 42*42*20cm / 70*70*40cm
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
1000000pcs
Product Description



SMA Male To SMA Male Straight With RG407 Semi-rigid RF Pigtail Coaxial Cable For Modular



What Is The Purpose Of Coaxial Cable?

Coaxial cable refers to the cable with two concentric conductors, and the conductor and shielding layer share the same axis. The most common coaxial cable is composed of copper conductor isolated by insulating material. On the outside of the inner insulating material is another layer of ring conductor and insulator, and then the whole cable is wrapped by PVC or sheath. At the same time, coaxial cable is widely used in radio frequency or audio and video transmission. The transmission impedance is generally 75 Ω, which has become the standard impedance of video transmission. High quality standard coaxial cable is generally more expensive than twisted pair, because the reliable physical characteristics of coaxial cable can provide excellent performance for audio and video. The frequency and resolution of the signal and the effective transmission distance of the cable also play a decisive role in the audio and video system.



Electrical Characteristics:



ELECTRICAL DATA
Impedance
50 Ohm
Frequency range
DC-20Ghz
VSWR
1.3 max
Voltage
60V
Insulation Resisitance
500 M Ohm min.
Insertion Loss
0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
MATERIAL DATA
Bodies
Brass--gold/nickel plating
Pin contacts
Brass--gold plating
Socket contacts
Copper-beryllium alloy--Au plating
Insulator
PTFE
Cable type
0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240,LMR400,Semi-rigid,semi-flexible,super flexible, Formable,etc
Application
smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range
-40°C to +80°C/200°C



Coaxial cable is sometimes called RF cable or RF coaxial cable. Coaxial RF cable is the most commonly used structure. Because the inner and outer conductors are concentric, the electromagnetic energy is limited in the medium between the inner and outer conductors, so it has the advantages of small attenuation, high shielding performance, wide frequency band and stable performance. It is usually used to transmit RF energy from 500 kHz to 18 GHz. Coaxial cable has two concentric conductors, and the conductor and shield share the same axis. The most common coaxial cable is composed of copper conductor isolated by insulating material. Outside the inner insulating material is another layer of ring conductor and its insulator, and then the whole cable is wrapped by PVC or sheath. Coaxial cable can be divided into 50 Ω baseband cable and 75 Ω broadband cable. Baseband cable is divided into thin coaxial cable and thick coaxial cable. Baseband cable is only used for digital transmission, and the data rate can reach 10Mbps.



Product Details:

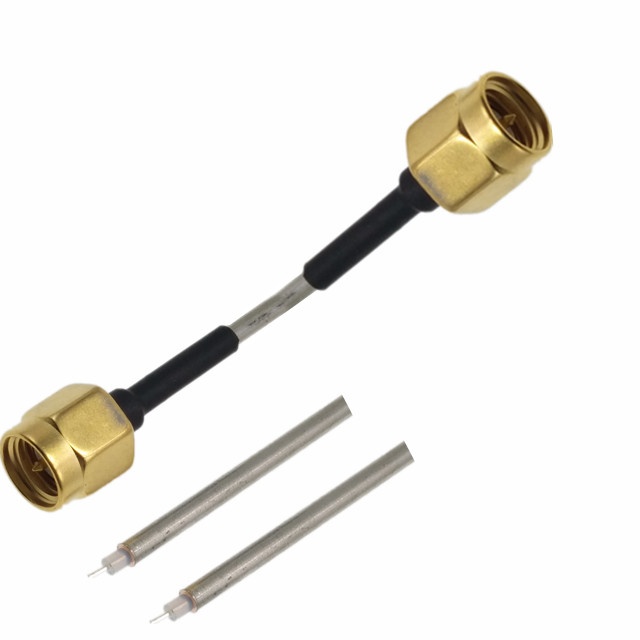

Straight 50ohm Semi Rigid RF Pigtail Coaxial Cable SMA Male To SMA Male 0

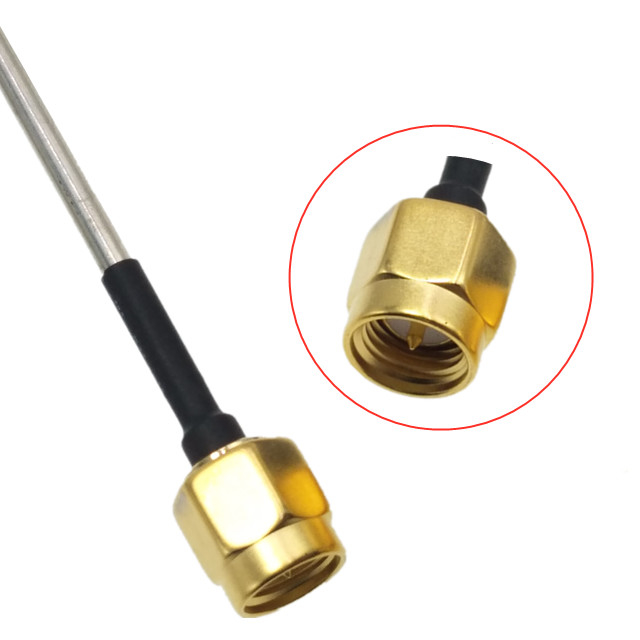

Straight 50ohm Semi Rigid RF Pigtail Coaxial Cable SMA Male To SMA Male 1

☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Straight 50ohm Semi Rigid RF Pigtail Coaxial Cable SMA Male To SMA Male 2



Why Choose Us?

1. We are professional antenna and accessories mamufacturer for 10 years.



2. Our sales manager will reply your inquiry in 24 working hours.



3. Customized design is available, OEM are welcomed.



4. Excellent after-sales service.



FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.



Packaging & Shipping:

1. Usually we ship your order by sea or by air.

2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
