Brand Name:
RY
Model Number:
RY-4G-5925-M14
Certification:
CE,ROHS
Place of Origin:
China
Contact Us
Video

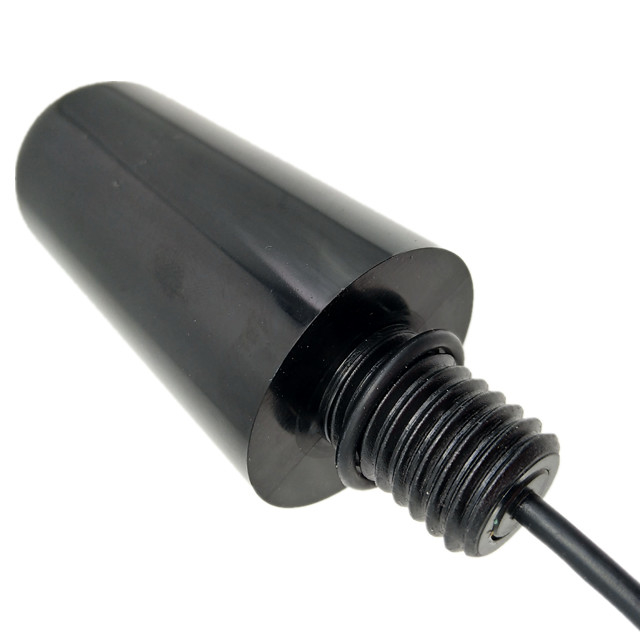

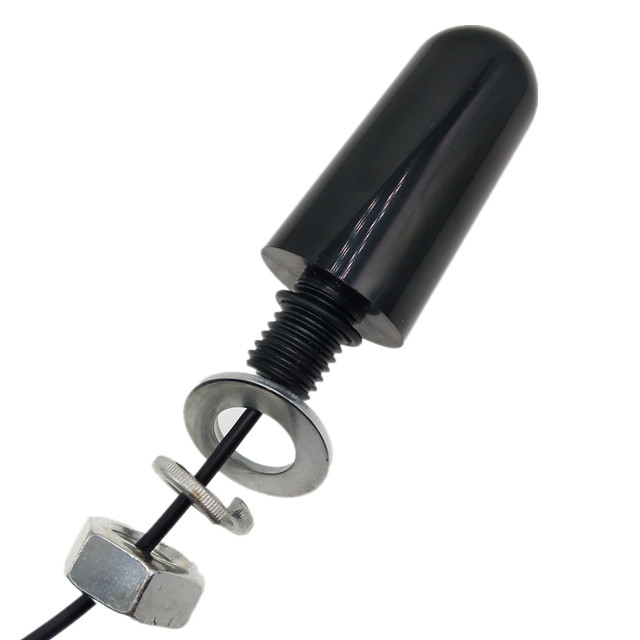

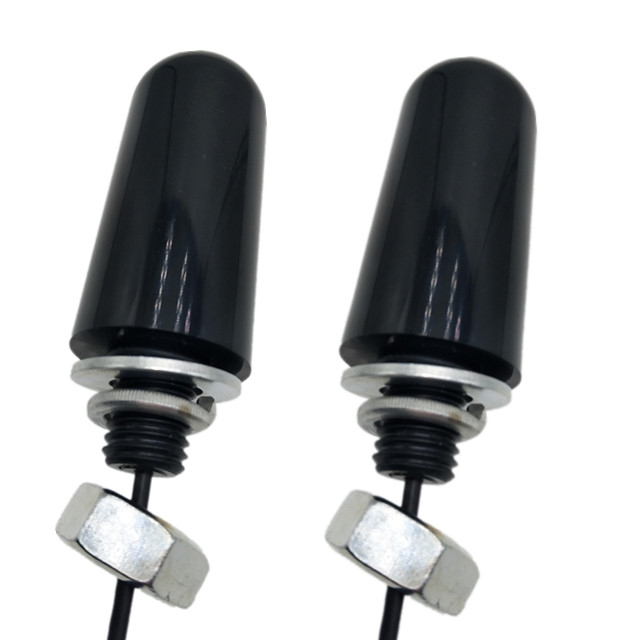

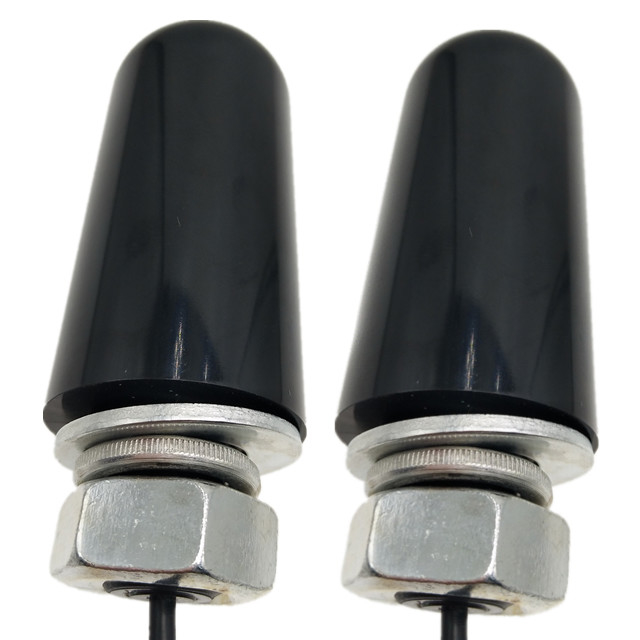

Aerials Explosion Proof Stubby Omni Directional Feeder 4g LTE Antenna For Screw Mount
Antenna installation For outdoor antennas, lightning protection equipment needs to be added between the antenna and the wireless AP; for directional antennas, pay attention to the direction that the front of the antenna faces the remote site; the antenna should be installed as high as possible, between the antenna and the site as much as possible Meet the visual distance (visible to the naked eye, avoid obstacles in the middle).
Electrical Characteristics:
| 4G/LTE antenna Specification | |
| Frequency Range | 698-960/1710-2170/2500-2700 |
| V.S.W.R | 2.0 |
| Band Width | 60/460/200MHz |
| Gain | 2.5dBi |
| Polarization | Vertical |
| Radiation | Omni directional |
| Max Input power(W) | 50 |
| Impedance | 50 ohm |
| Max wind speed | 200km/h |
| Mechanical Specifications | |
| Size | 59*25mm |
| Connector | SMA male or others |
| Housing | ABS |
| Environmental Specification | |
| Working Temp | -40℃~+85℃ |
| Vibration | Sine sweep 1g(0-p), 10~50~10Hz each axis |
| Humidity | 95%~100%RH |
Product Details:
☀ We focus on coaxial connectors / cable / antenna.
☀ Our custom RF cable connectors are built-in and shipped worldwide.
☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team
5. What's the warranty?
One year, 12 months.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Send your inquiry directly to us
