GSM External Omni Rubber Duck Slim Screw 4G LTE Antenna With Wall Mount Bracket

GSM External Omni Rubber Duck Slim Screw 4G LTE Antenna With Wall Mount Bracket

Rubber Duck 4G LTE Antenna

External 4G LTE Antenna

Omni gsm external antenna

Brand Name:

RY

Model Number:

RY-4G-250MM-M12

Certification:

CE,ROHS

Place of Origin:

China

Contact Us

Request A Quote
Product Details
Frequency:
700-2700MHZ
Size:
250MM
Impedance:
50 Ohm
Samples:
Available
Cable Type:
RG174 RG58
Connector:
SMA SMB TNC FME BNC TNC..etc
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
USD1.0~6.0
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000000pcs / Month
Delivery Time
Shipped in 15 days after payment
Packaging Details
40*40*20cm ..45*30*25cm..
Product Description



Gsm 3g 4g Lte External Omni Rubber Duck Slim Screw Antenna With Wall Mount Bracket



Electrical Characteristics:



Item Specifications
Antenna Frequency Range 700-2700MHz
Gain 5dBi
V.S.W.R ≤2
Impendance 50Ω
Antenna size 250mm
Cable Length 1M/2M/3M or customizable
Polarization Linear
Mechanical Cable type RG174 or customizable
Connector type SMA male or customizable
Mounting Method Screw mount
Environmental Operating Temperature -40℃~+80℃
Storage Temperature -40℃~+85℃
Environmentally Friendly ROHS Compliant


Product Details:

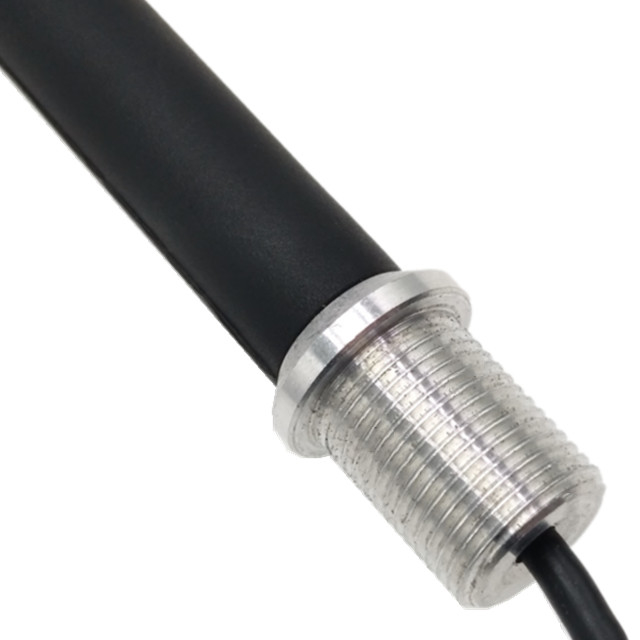

GSM External Omni Rubber Duck Slim Screw 4G LTE Antenna With Wall Mount Bracket 0

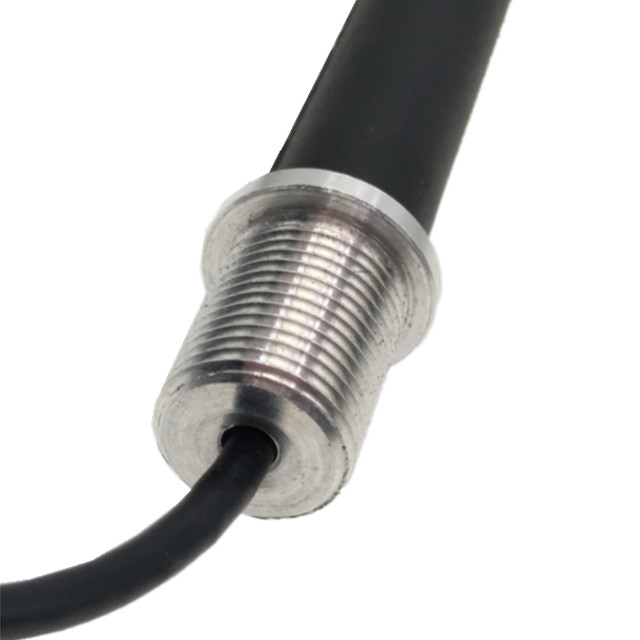

GSM External Omni Rubber Duck Slim Screw 4G LTE Antenna With Wall Mount Bracket 1

☀ We focus on coaxial connectors / cable / antenna.

☀ Our custom RF cable connectors are built-in and shipped worldwide.

☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



Why Choose Us?

1. We are professional antenna and accessories mamufacturer for 10 years.



2. Our sales manager will reply your inquiry in 24 working hours.



3. Customized design is available, OEM are welcomed.



4. Excellent after-sales service.



FAQ:

1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps developing as our business grows larger.



2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.



3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.



4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team



5. What's the warranty?

One year, 12 months.



Payment:

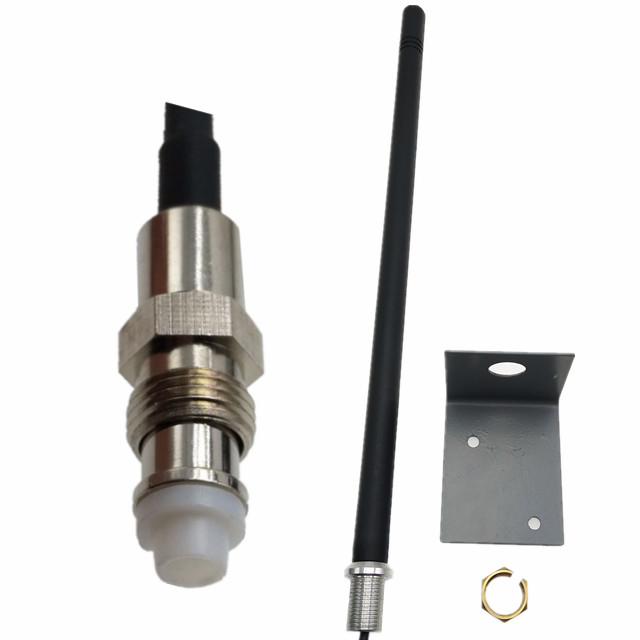

GSM External Omni Rubber Duck Slim Screw 4G LTE Antenna With Wall Mount Bracket 2



Packaging & Shipping:

1. Usually we ship your order by sea or by air.

2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

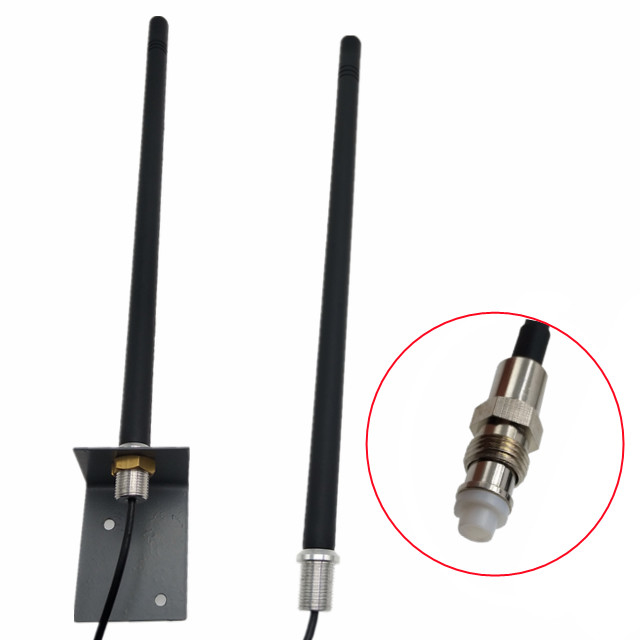

GSM External Omni Rubber Duck Slim Screw 4G LTE Antenna With Wall Mount Bracket 3
