Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS,ISO
Model Number:
RY-SMA-S018
Contact Us
Video

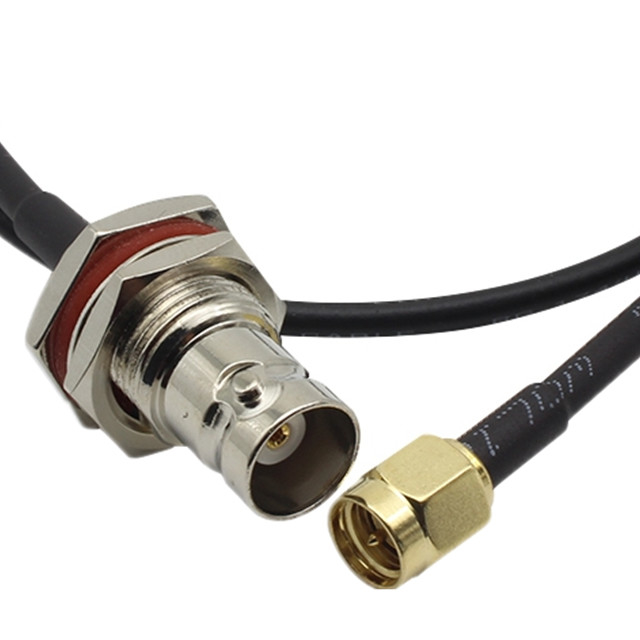

Waterproof Bulkhead BNC Female Jack To SMA Male RF RG174 RG58 Antenna Pigtail Cable
Products Feature:
| Connector Type | BNC / TNC / SMA / SMB / SSMB / SMC / SMP / F / N / MCX / MMCX / 1.0/2.3 / UHF / RCA / IPEX / FME / TS9 / CRC9 / AVIC / FAKRA / HSD / etc |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Polarity | Standard / RP |
| Impedance | 50Ohm / 75Ohm |
| Cable Type | 0.81 / 1.13 / 1.37 / RG6 / RG11 / RG58 / RG59 / RG141 / RG142 / RG174 / RG178 / RG179 / RG188 / RG223 / RG316 / RG400 / RG401 /RG402 / RG405 / LMR100 / LMR195 / LMR200 / LMR400 / etc |
| Cable Colours | Black / White / Gray / Blue / Brown / etc |
| Cable Length | 5CM / 10CM / 15CM / 50CM / 100CM / etc |
1. SMA connector
The applicable frequency range is 0~18GHz. It is an ultra-small, suitable for semi-rigid or flexible radio frequency coaxial cable connection. It has the characteristics of small size, superior performance, high reliability, and long service life. However, the ultra-small connectors are easily damaged in engineering and are suitable for microwave applications that require high performance, such as the internal connection of microwave equipment.
2. BNC Connector
The applicable frequency range is 0-4GHz. It is a coaxial cable connector with a bayonet connection mechanism for low power. This kind of connector can be quickly connected and separated, has the characteristics of reliable connection, good vibration resistance, and convenient connection and separation. It is suitable for frequent connection and separation occasions, and is widely used in radio equipment and test instruments to connect coaxial radio frequency cables.
The characteristic impedance is very important, otherwise it will cause a mismatch. When the impedance is matched, the maximum output power can be obtained, and the equipment utilization efficiency is the highest: when the impedance is not matched, the output effective power will be reduced: when the external impedance is equal to the internal impedance of the device, it becomes an impedance match.
After reading the above content, you should understand the difference between the use of BNC connectors and SMA connectors. BNC connector and SMA connector are two different products, each has different uses, and there are also differences in performance, so they cannot be mixed.
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team
5. What's the warranty?
One year, 12 months.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Send your inquiry directly to us
