Black GPS Puck Antenna With Rubber Pad Base , 2*5m 4G LTE Signal Booster Antenna

Black GPS Puck Antenna With Rubber Pad Base , 2*5m 4G LTE Signal Booster Antenna

4g lte external antenna

4g lte aerial

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-GPS/4G-10

Contact Us

Request A Quote
Product Details
Color::
Black
Mounting Type::
Embedded,Screw,adhesive,magnetic
Application::
Indoor/Outdoor
Cable Type::
RG174
Connector::
SMA
Type::
Whip,puck,panel
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~6.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





GPS+4G puck combo antenna with rubber pad base,2*5m cables to SMA male connectors







Electrical Characteristic:



( I ) Product Overview



(i)Dielectric Antenna

Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane

Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)

Polarization:RHCP


(ii)LNA/Filter

LNA Gain(Without Cable) :28 dBi Typical

Noise Figure(dB):1.5

Filter Out Band Attenuation (f0=1575.42 MHz)

7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0

DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current (mA):11 Max


(iii)4G Antenna

Center Frequency(MHz):850/900/1800/1900/2100/2300/2700

VSWR:2.0:1
Impedance(Ω):50

Typical Gain:2dBi


(iv)Mechanical

Weight(gram )<150

Size(mm):Φ75×16
Cable (m):RG174 etc.
Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.

Mounting:Screw(Hole/Roof) with Rubber Pad

Housing:Black



(v)Environmental

Working Temp:-40℃~+85℃

Storage Temp:-45℃~+100℃

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity:Humidity95%~100%RH

Weatherproof:100%Waterproof



Product Details:

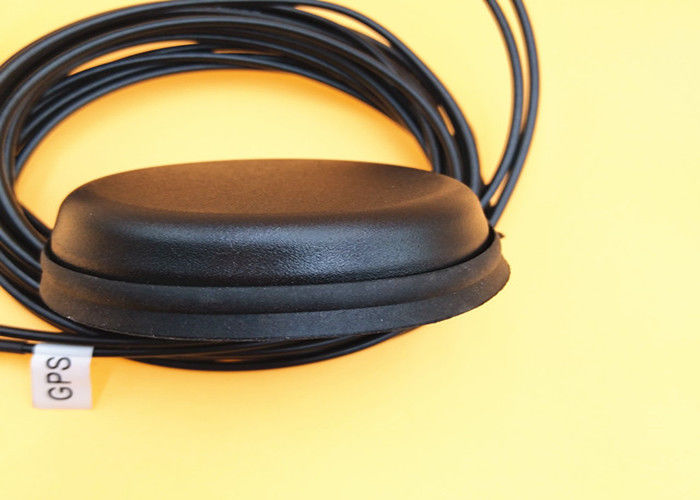

Black GPS Puck Antenna With Rubber Pad Base , 2*5m 4G LTE Signal Booster Antenna 0

Black GPS Puck Antenna With Rubber Pad Base , 2*5m 4G LTE Signal Booster Antenna 1



Download Drawing Here:



RY-GPS 4G-10.pdf



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



Application:



1. The antenna radiates and receives radio waves. However, it is not radio waves that the transmitter sends to the antenna through the feeder. The receiving antenna can not send radio waves directly through the feeder to the receiver, which must go through the energy conversion process. Next, we take the radio communication equipment as an example to analyze the signal transmission process, and then explain the energy conversion function of the antenna.



2. At the transmitter end, the modulated high frequency oscillating current (energy) generated by the transmitter is fed into the transmitting antenna by the feeding device (the feeding device can transmit current wave or electromagnetic wave directly depending on the frequency and form). The transmitting antenna converts the high frequency current or guided wave (energy) into radio wave-free electromagnetic wave (energy) to the circumference. Circumferential radiation (see Figure 1); at the receiving end, radio waves (energy) are converted into high-frequency current or guided waves (energy) through the receiving antenna and transmitted to the receiver via the feeding device. From the above process, it can be seen that the antenna is not only a device for radiating and receiving radio waves, but also an energy converter and an interface device between circuit and space.



FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.


4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
