Single Row Molex Clik Mate 6 1.25mm Pitch Custom Wire Harness To 1.5mm Jst - Zh 4 Pin

Single Row Molex Clik Mate 6 1.25mm Pitch Custom Wire Harness To 1.5mm Jst - Zh 4 Pin

custom cable assemblies

wire harness cable assembly

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-83566

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
2-64pin
Application::
Electronic
1 Connector::
Molex Clik Mate 6
2 Connector::
Jst-zh
Length::
Customized
Samples::
Available
Wire::
Custom
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~6.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description

Single Row Molex Clik-Mate 6 1.25mm Pitch To 1.5mm Jst-Zh 4 Pin Twisted Wire Harness









Electrical Characteristics:



Product Name



Molex/CLIK-Mate 2.00 SMT Wire-to-Board Connectors

Type



Board to board connector
Material:

Housing:PA66;Terminal:Phosphor/Brass



Terminal:brass



Craft

Plated:Tin-plated



color

Black,various colors for your selection



Specification

Gender:male and female



Current Rating:2Amps AC DC



Voltage Rate:50V AC DC



Contact resistance:20mohms Max



Insulator Resistance:100mohms Min



Withstanding Voltage:500V AC/minutes



Temperature Range:-25°C~+85°C



Poles:2-15 pin



Row:single row





ZH Specification:

Poles: 2 to 16P

Current rating:1.0 A AC,DC

Voltage rating:50V AC,DC

Temperature range:-25C to +85C

Contact resistance :20m

Insulation resistance:500m

Withstand voltage:500VAC/minute

Applicable wire:AWG #32 to #26

Applicable PC board thickness:0.6mm to 1.2mm,1.6mm



Wire Harness Applications:

1. Wire Harness for PDA
2. Wire Harness for DVD
3. Wire Harness for Digital camera

4. Wire Harness for LCD

5. Wire Harness for Back projection

6. Wire Harness for TV

7. Wire Harness for Medical system/monitoring

8. Wire Harness for Laptop
9. Wire Harness for PC and Computer

10. Wire Harness for Display

11. Wire Harness for Advertising machine



Product Details:

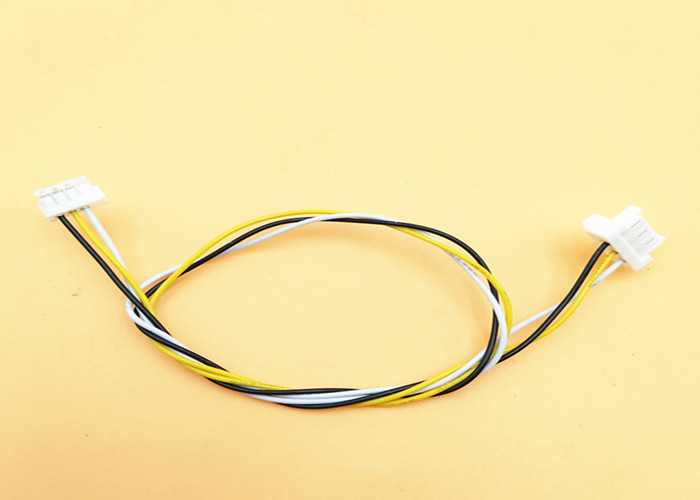

Single Row Molex Clik Mate 6 1.25mm Pitch Custom Wire Harness To 1.5mm Jst - Zh 4 Pin 0

Single Row Molex Clik Mate 6 1.25mm Pitch Custom Wire Harness To 1.5mm Jst - Zh 4 Pin 1



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:

1. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

2. Fast Delivery Time :2~15 days, On-Time Delivery.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.


FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
