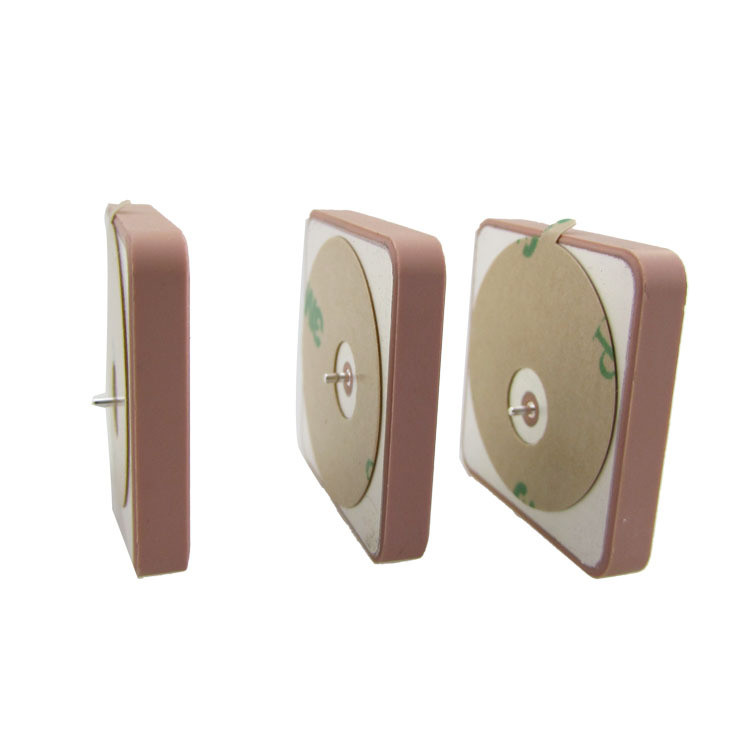

25x25mm Internal Ceramic Patch GPS Navigation Antenna Multilayer

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS,ISO
Model Number: RY-Active-GPS-254
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: USD0.3~1.8
Packaging Details: sample size:18*12*9cm,40*40*20cm..etc
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 100000pcs
Contact Now

Detail Information

Size: 25*25*4mmmm Impedance: 50Ω
Mounting Type: Internal Type: Ceramic Patch
VSWR: ≤2 Frequency: 1575.42mhz
High Light:

Ceramic Patch GPS Navigation Antenna


25x25mm GPS Navigation Antenna


25x25mm glonass gps antenna

Product Description


15*15mm 18*18mm 25*25mm Internal Ceramic Patch GPS Build-in Antenna For Navigation


What are the important parameters of ceramic antenna?

1. VSWR voltage standing wave ratio

The VSWR is less than 2.0, and the VSWR at the working frequency point is less than 1.5. If the VSWR is too large, the communication distance will be shortened, and the reflected power will return to the power amplifier part of the transmitter, which is easy to burn the power amplifier tube and affect the normal operation of the communication system.

2. Bandwidth

Generally, the electrical parameters of ceramic antenna are related to the working frequency. To ensure the allowable frequency variation range of electrical parameters is the working bandwidth of ceramic antenna. Generally, the working bandwidth of omnidirectional ceramic antenna can reach 5-8% of the working frequency range, and that of directional ceramic antenna can reach 3-10% of the working frequency range.

3. Gain

Gain is one of the main indexes of ceramic antenna. It is the product of direction coefficient and efficiency, and it is the performance of the size of the wave radiated or received by the ceramic antenna. The choice of gain depends on the requirements of the system design for the coverage area of the wave. In short, under the same conditions, the higher the gain, the farther the distance of the wave propagation.
4. Noise figure

The larger the coefficient is, the larger the noise will be, which indicates that the more noise will be added in the transmission process, reflecting the unsatisfactory characteristics of the device or channel. When the noise figure of the amplifier is low, the noise figure of the amplifier is usually expressed by the noise temperature (T).


Electrical Characteristics:

Frequency Range (MHz) 1575.42MHz±3MHz Gain(dBi) 28
Input Impendence (Ω) 50 V.S.W.R (≤) 1.5
Max Input Power (W) 50 Radiation omni
Connector Type / Polarization Type Right circular polarization
Material / Wire Length (m) /
Packing 50pcs/a bag Angle Adjustable /
(mm) 25*25*4 Net Weight (g) /
Working Temp () -40-85 Storage Temp () -20-40

Ceramic antenna is another kind of miniaturized antenna suitable for Bluetooth devices. The types of ceramic antenna are divided into block ceramic antenna and multilayer ceramic antenna. Block antenna uses high temperature to sinter the whole ceramic body at one time, and then prints the metal part of the antenna on the surface of the ceramic block.

The multilayer antenna is fired in the way of low temperature co firing. The multilayer ceramic is laminated and aligned, and then sintered at high temperature. Therefore, the metal conductor of the antenna can be printed on each layer of ceramic dielectric layer according to the design requirements. In this way, the antenna size can be effectively reduced, and the purpose of hiding the antenna can be achieved. Because the dielectric constant of ceramic is higher than that of PCB, ceramic antenna can reduce the size of antenna effectively

Ceramic antenna is made of ceramic and weighs only 200g. Its frequency range is between 902mhz and 928mhz. Moreover, the dielectric loss of ceramic is smaller than that of PCB, so it is very suitable for Bluetooth module with low power consumption. The effect of ceramic antenna is better than that of on-board antenna. Generally, it has ant access pin and anchor, so it is very convenient to use.

The ceramics of ceramic antenna are used in radio. In addition to capacitors, there is also a device called ceramic filter (because it is connected to the antenna circuit, many people mistakenly think it is an antenna). It is made of lead zirconate titanate ceramic material. The ceramic material is made into flakes, and both sides are coated with silver as electrodes. After DC high voltage polarization, it has piezoelectric effect. It plays the role of filtering and has the characteristics of stability and good anti-interference performance.

Ceramic antenna has four important parameters: gain, VSWR, noise figure and axial ratio. Especially the axis ratio, which is an important index to measure the difference of signal gain in different directions.
