Hirose 20 Pin Electronic LVDS Cable Assembly For LCD Monitor / Advertising Machine

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-876543
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD1.88~8.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name:: RY Pin: 40PIN
Application:: Electronic 1 Connector:: DF19
2 Connector:: DF19 Housing:: Hirose
Length:: Customized Samples:: Available
High Light:

lvds extension cable

,

lvds lcd cable

Product Description





hirose 20pin DF19-20S-1c to DF19-20S-1c lvds convertion cable for lcd monitor







-------What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.

Electrical Characteristics



Cable type
32AWG,30AWG, 28AWG, 26AWG;
LCD 20cores single shield cable, LCD 20cores double shield cable;
LCD 32cores single shield cable, LCD 32cores double shield cable;
LCD 20cores non-shield cable, LCD 32cores non-shield cable;


Cable color
Black/Grey
Connectors
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
Cable Length
50mm-15000mm.
Processing ways
Crimping, pressing and soldering types.
Pin out connection
As per customer’s request(customer can send the datasheets of LCD and main board to us).
Connector pitch range
0.3mm-4.2mm
characteristics
Good transferring, clearly pictures, no shaking, and transfer issues
Advantages
Manufacturing factory;
Competitive price and quality;
Short lead time.

Applications
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD


ISO certificate
ISO9001:2008
Service
OEM/ODM products are acceptable.
More information
ISO/RoHS/UL
Performance Test:
100% electrical and electricity performance test


Product Details:

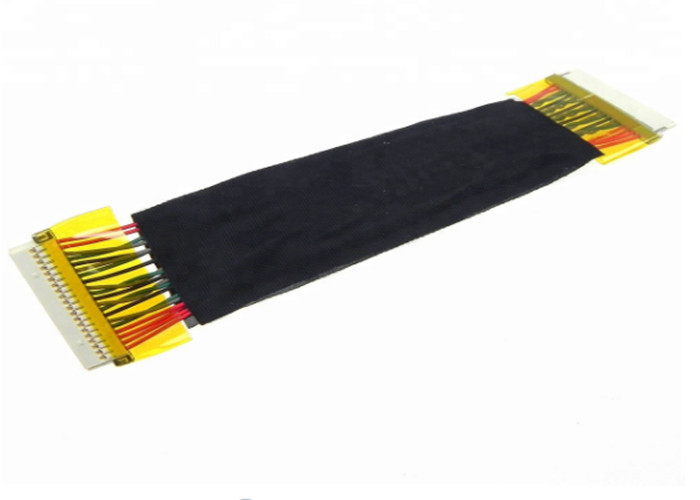

 Hirose 20 Pin Electronic LVDS Cable Assembly For LCD Monitor / Advertising Machine 0

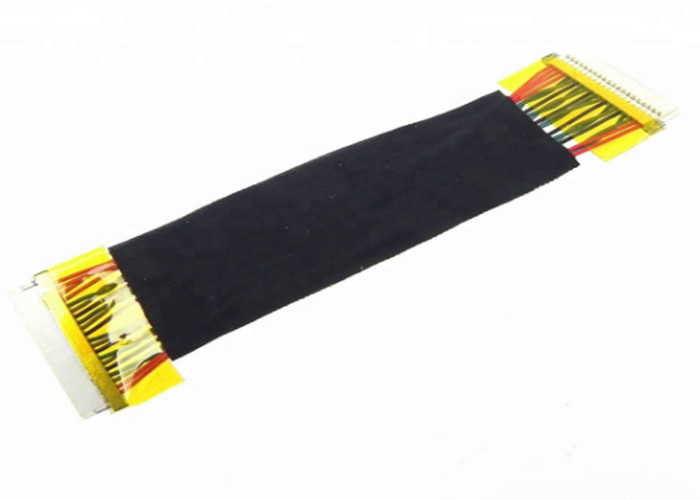

Hirose 20 Pin Electronic LVDS Cable Assembly For LCD Monitor / Advertising Machine 1
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
   •100% product quality protection
   •100% on-time shipment protection
   •100% payment protection for your covered amount

 FAQ:

Q1: Are you Manufacturer or Trading Company?
A1: We are Manufacturer specializes in Cable& Wire Harness included Auto wire harness, Electronic wiring Harness, LVDS cable, eDP Cable, Micro-Coaxial Cable, Inverter Cable, Ribbon Cable and more.

Q2: Do you provide OEM and customized products service?
A2: We offer OEM and customized wire harness for 10 years and our products meet international quality standard.

Q3: Can I get sample to testing? What’s the sample lead time?
A3: Yes, we can provide sample based on your drawing and it will take around 3-5days to make samples.

Q4: What’s Mass production delivery time?
A4: Generally, it will take 10-15days to finish production. For top urgent order, please inform us when confirm order.

Q5: What‘s your MOQ?
A5: Generally, our MOQ is 100-300pcs. Some customized wire harness will depend on connector and wire material.

Q6: Could we make a new mould? How long to make a new mould?
A6: Yes. OEM, ODM and customized mould are warmly welcomed and we have more than 7 units injection moulding machines in factory. It will take around 20-30days to make new one.

Q7: How soon we can receive your quotation?
A7: Please send us detailed drawing, picture and part No., we will send you official quotation within 24 hours.

Q8: What’s your payment term?
A8: T/T, L/C, Trade Assurance, Western Union, PayPal.
