OEM/ODM LVDS Cable Assembly From JAE FI-X30HL 30P 1.0mm Pitch To JAE FI-S20S 20P And SHLP-6P

OEM/ODM LVDS Cable Assembly From JAE FI-X30HL 30P 1.0mm Pitch To JAE FI-S20S 20P And SHLP-6P

wire harness assembly

custom cable assemblies

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

JAE FI-X30HL or FI-S20S connector

Contact Us

Request A Quote
Product Details
Product Name::
JAE FI-X30HL Or FI-S20S Connector
Connector A::
JAE FI-X30HL
Connector::
JAE/JST
Connector B::
JAE FI-S20S
Item::
30Pin/20Pin/6Pin
Contact Pitch::
1.0mm
Service::
Design
Length::
Customize
High Light::
SHLP-6P LVDS Cable Assembly, JAE FI-X30HL 30P LVDS Cable Assembly, JAE FI-S20S 20P LVDS Cable Assembly
Payment & Shipping Terms
Minimum Order Quantity
quantity can be negotiable
Price
Most favorable
Packaging Details
PE inner, carton outer
Delivery Time
Shipped in 3-9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union,
Supply Ability
10000pcs
Product Description

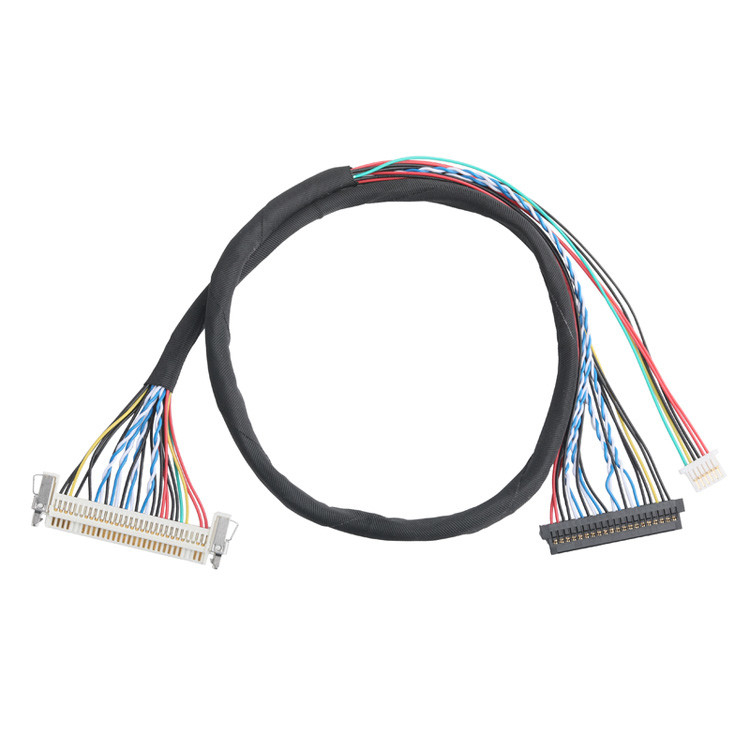

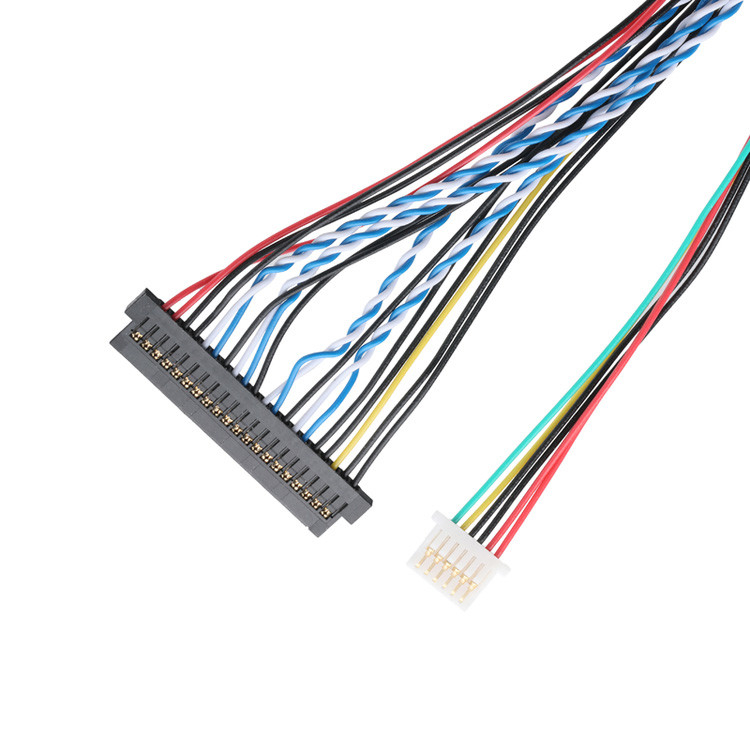

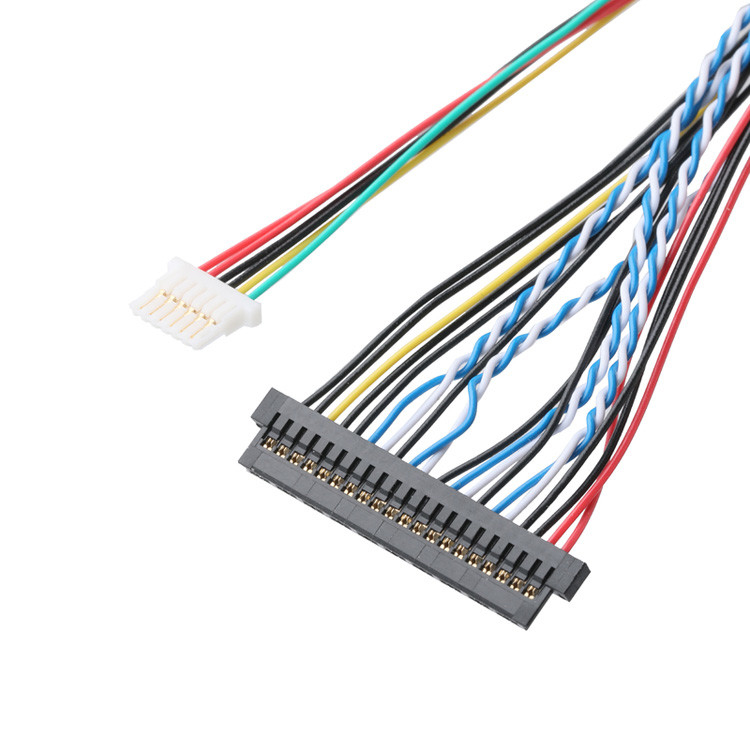

JAE FI-X30HL 30P 1.0mm pitch to JAE FI-S20S 20P and SHLP-6P

LVDS cable assembly OEM/ODM



The micro coaxial cables we can produce include , LVDS cable, SGC cable, MCC cable, micro coaxial

cable assembly, LVDS eDP transmission,HRS cable, I-PEX cable, Hirose Micro Shaft cable, KEL micro

coaxial cable, ACES micro coaxial cable, etc.
LVDS cable,LCD cable,eDP cable,IPEX LVDS cable,LCD Ribbon cable
Hirose DF13 Common used connector part number.



Introducing our LVDS Cable Assembly designed specifically for LCD electronic screen circuit boards.

With precision engineering and high-quality components, this cable assembly ensures reliable

and seamless connectivity, enabling optimal performance of your LCD displays.



Featuring a JAE FI-X30HL 30Pin connector with a pitch of 1.0mm on one end and an

HD-SUB 26P Female connector on the other, this cable assembly provides a secure and stable connection

between your LCD electronic screen circuit boards and associated components.



Crafted with UL 1571 28AWG cable, this assembly guarantees durability and longevity, even in demanding

environments. Its robust construction and meticulous design make it suitable for various LCD display applications,

from consumer electronics to industrial displays.



Test Type Requirement
Open/Short Testing 100% of cables must be tested for open and short circuits
Hi-Pot Testing Apply AC-100V for 0.1 seconds
Insulation Resistance Test with DC-200V; minimum insulation resistance of 20 megaohms
Contact Resistance Maximum allowable contact resistance is 5 ohms
