Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-470368
Contact Us

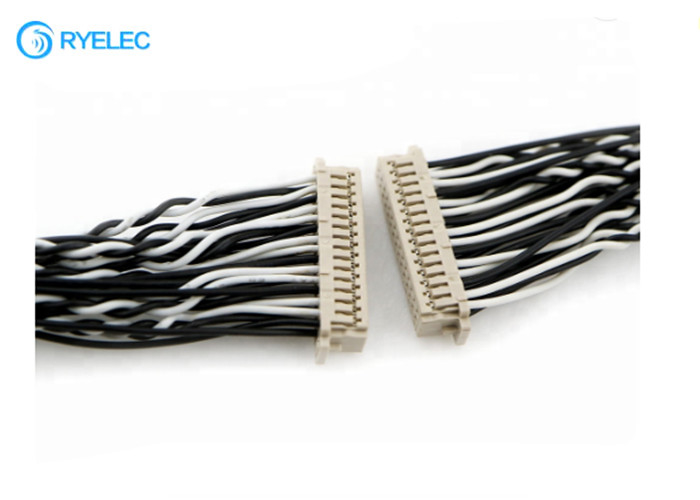

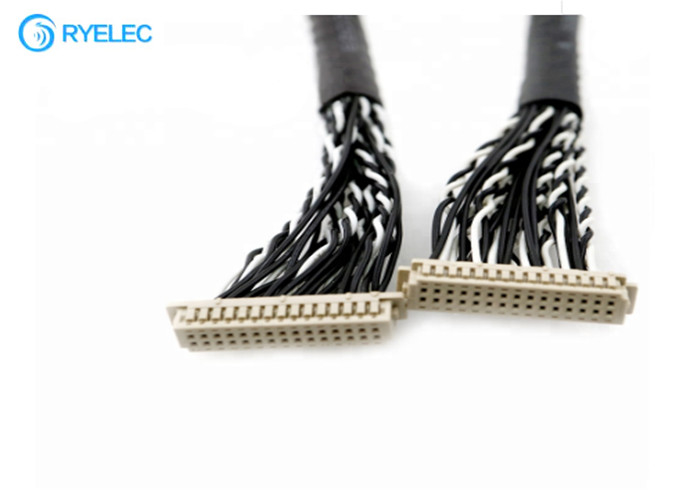

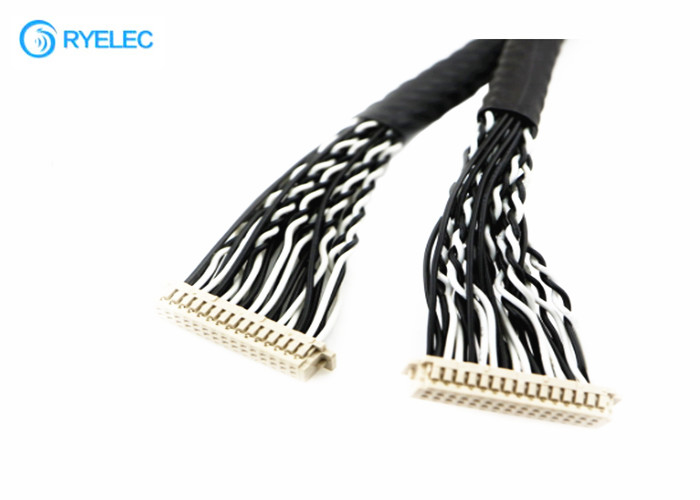

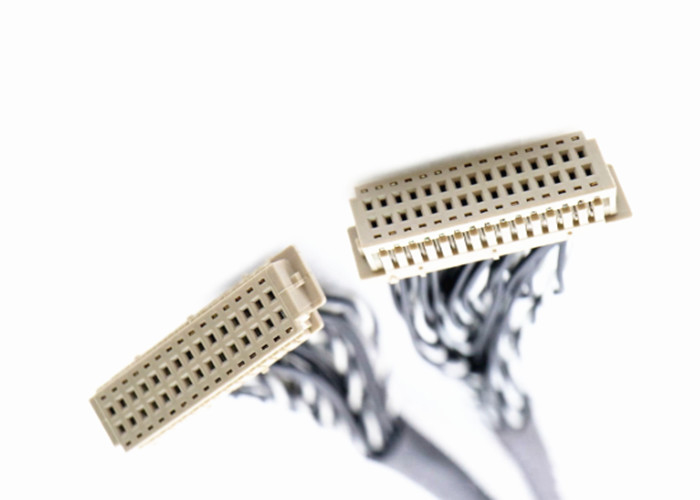

30pin 2*15 pin hirose DF13-30DS-1.25C Connector With 1.25mm Pitch lvds cable Assembly
-------What's the lvds cable?
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.
Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video, graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.
Electrical Characteristics
Cable type
|
UL1571 28AWG
|
||
Cable color
|
Black/Grey
|
||
Connectors
|
DF13-30DS-1.25C | ||
Cable Length
|
50mm-15000mm.
|
||
Processing ways
|
Crimping, pressing and soldering types.
|
||
Pin out connection
|
As per customer’s request(customer can send the datasheets of LCD and main board to us).
|
||
Connector pitch range
|
0.3mm-4.2mm
|
||
characteristics
|
Good transferring, clearly pictures, no shaking, and transfer issues
|
||
Advantages
|
Manufacturing factory;
Competitive price and quality; Short lead time.
|
||
Applications
|
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD |
||
ISO certificate
|
ISO9001:2008
|
||
Service
|
OEM/ODM products are acceptable.
|
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
