7 / 16 DIN Male To N Rf Antenna Adapter Female DMNF - NFDM Base Station Project
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RY |
| Certification: | CE,ROHS |
| Model Number: | RY-355637 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 20 |
| Price: | USD0.88~5.88 |
| Delivery Time: | Shipped in 3 days after payment |
| Payment Terms: | L/C, T/T,Paypal, Western Union, MoneyGram |
| Supply Ability: | 10000pcs |
|
Detail Information |
|||
| Type: | Sma | Application: | RF |
|---|---|---|---|
| Gender: | Female | Dielectric: | PTFE |
| Freqency Range: | DC To 11GHz | Temperature: | -55-+155℃ |
| High Light: | sma rf connector,rf cable connector |
||
Product Description

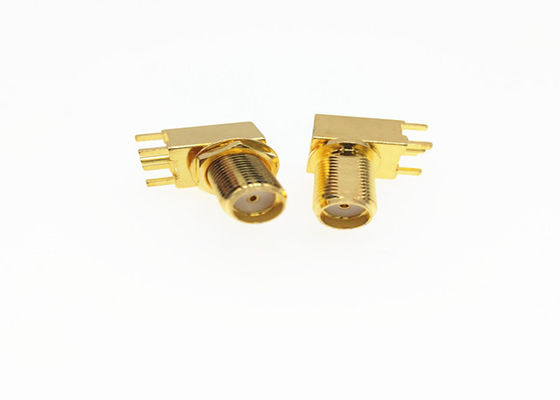

50 ohm rf gold plated SMA female right angle board mount pcb antenna connector
Electrical Characteristics:
SMA female connector is a type of RF connector for coaxial cables. SMA Coaxial RF Connector is of compact design, high durability and outstanding electronic performance.
SMA RF Coax Connector has been one of the most widely used connectors in RF and Microwave applications all over the world. Normally it works under frequency from DC-18GHz. There are also precision versions SMA connectors that the frequency can reach to 27GHz. SMA connector is available both in Standard and Reverse Polarity.
Temperature Range | -55~+155°C | |
Impedance | 50Ω | |
Vibration | 150m/s2(10~2000Hz)15g | |
Frequency Range | DC-11GHz | |
Insertion Loss | ≤0.20dB | |
Withstanding Voltage | 1500Vr.m.s at sea level | |
Working Voltage | 500Vr.m.s at sea level | |
Insulation Resistance | ≥ 5000 MΩ | |
Durability | ≥ 500(cycles) | |
Center conductor retention force | ≥0.57N | |
Contact resistance: | Center Contact ≤10mΩ | |
Outer Contact ≤2.5mΩ | ||
Voltage Standing Wave Ratio: |
Straight | ≤ 1.22/3GHz |
Right angle | ≤ 1.30/3GHz | |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
