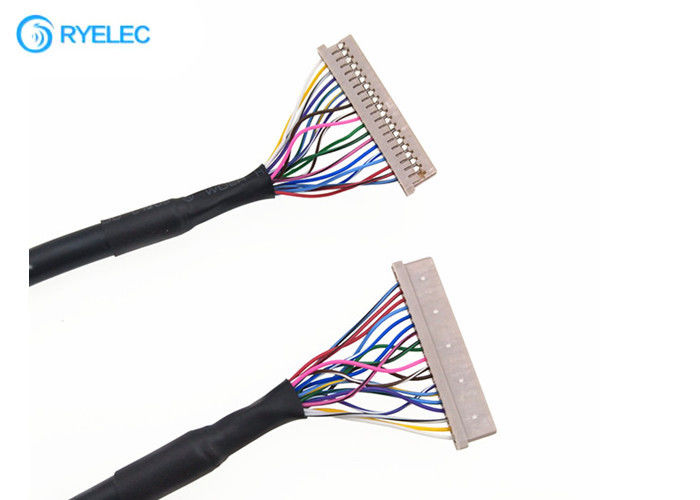

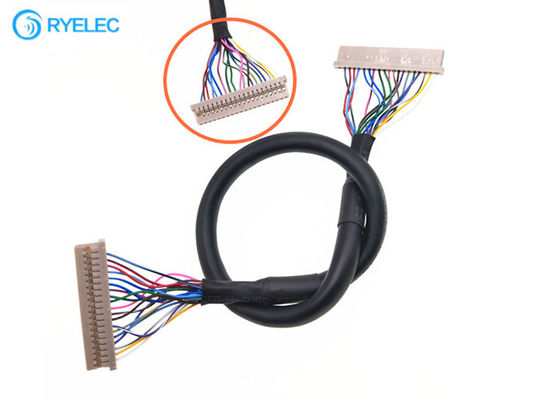

Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft

Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft

    • Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft
    • Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft
    • Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft
    • Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft
  • Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-df14-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~8.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name: RY Pin: 20PIN
    Application: Electronic 1 Connector: DF14
    2 Connector: DF14 Housing: Hirose
    Length: Customized Samples: Available





    Df14 To Df14 Laptop Coaxia Lvds Cable 20p To 20Pin Hirose For Remote Controlled Aircraft​




    -------What's the lvds cable?



    Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
    serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

    Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,

    industrial cameras and machine vision,notebook and tablet computers,and communications systems.

    The typical applications are high-speed video,graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
    the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
    the video-display engineering vocabulary.


    Electrical Characteristics



    Poles



    20

    Current Rating



    1.0A/AC.DC

    Voltage Rating



    250V/AC.DC

    Temperature Range



    -25℃ TO 85℃

    Contact Resistance



    ≤10mΩ

    Insulation Resistance



    ≥500MΩ

    Withstand Voltage



    500V AC/MINUTE

    Housing Material



    PA66 UL94 V-0

    Applicable wires



    AWG #32 TO #28

    Applicable pcb board thickness



    0.6~1.2 mm

    Certificate



    UL/ROHS/TUV/CQC/NQA
    Cable Type LCD 20cores single shield cable, LCD 20cores double shield cable;
    LCD 32cores single shield cable, LCD 32cores double shield cable;
    LCD 20cores non-shield cable, LCD 32cores non-shield cable;



    Product Details:
    Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft

    Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft
    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Good After-Sales Service: we could offer technical support or return service in short time.

    4. 1 Year Warranty.


    FAQ

    1. How to choose a right cable?

    A designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.



    2. What’s will impact the material you select?

    Specific equipment, machine structure and environment



    3. Why cable need to be shielding?

    To reduce electrical noise from affecting the signals, and to reduce electromagnetic

    radiation that may interfere with

    other devices.



    4. What sort of cable need suggest to?

    For long transmission lines, a braided or served shield is recommended to ensure good isolation between the signal lines and the environment.



    5. What is your terms of delivery?
    UPS,TNT,EMS,DHL,etc.Or you can choose the one which is the most convenient or most cost-effective for you.
