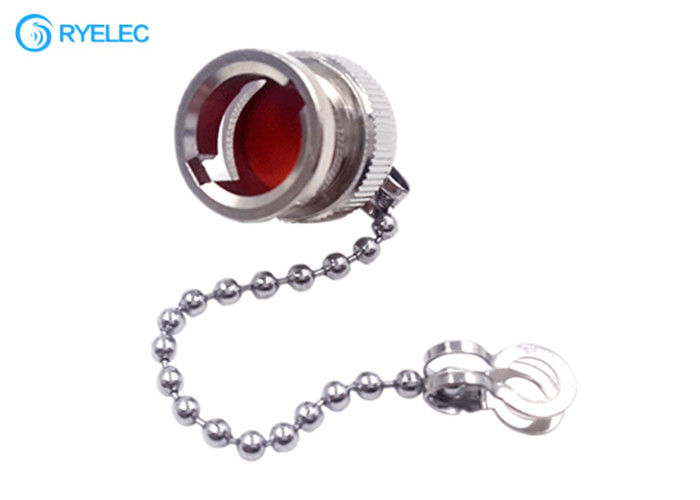

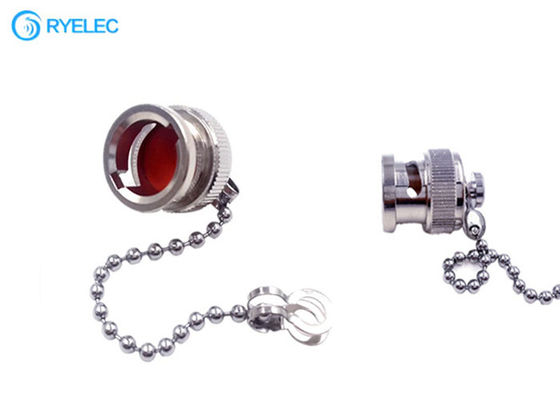

Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective

Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective

    • Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective
    • Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective
    • Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective
  • Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-859

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~3.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Type: BNC Cap Application: RF
    Gender: Female Dielectric: PTFE
    Freqency Range: DC To 4GHz Temperature: -55-+155℃





    Prevent Oxidation And End Cap Compliant BNC Female Protective BNC Dust Cap ​





    Electrical Characteristics


    Temperature Range



    -55~+155°C (PE Cable -40~+85°C)

    Impedance



    50Ω, 75Ω

    Frequency Range



    DC-4GHz

    Insertion Loss



    less than or equal to 0.24dB/6GHz

    Withstanding Voltage



    1500V r.m.s at sea level

    Working Voltage



    500Vr.m.s at sea level

    Insulation Resistance



    >= 5000 MΩ

    Durability



    >= 500(cycles)
    Contact resistance:

    CenterContact <= 1.5mΩ



    Outer Contact <= 1mΩ



    Voltage Standing Wave Ratio: Straight <= 1.22/3GHz
    Right angle <= 1.30/3GHz



    Product Details:
    Prevent Oxidation And End Cap Compliant Bnc Connector Dust Cap Female Protective

    Type BNC is one of RF coaxial connectors using a bayonet type coupling mechanism, characteristic impedance has two types: 50ohm and 75ohm. They can be quick connect/disconnect, reliable lock etc. they are widely used in connection with the RF coaxial cables in computer filed, network of wireless, medical equipment and electronic instrument.



    Our Company:


    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.


    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


    Our advantages:


    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.


    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.


    3. Fast Delivery Time :2~15 days, On-Time Delivery.


    4. Good After-Sales Service: we could offer technical support or return service in short time.


    5. 1 Year Warranty.


    6. OEM/ODM service.


    7. We are available with Trade Assurance, you'll enjoy:
    •100% product quality protection
    •100% on-time shipment protection
    •100% payment protection for your covered amount


    FAQ:


    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



    2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.



    3. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

    4. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.



    5. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
