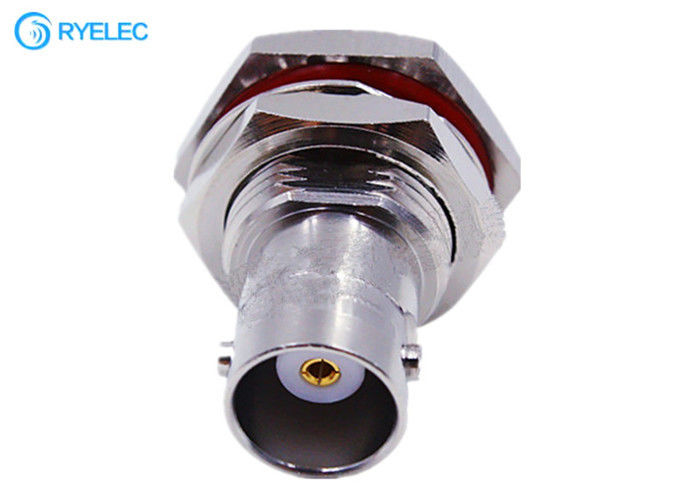

BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut

BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut

    • BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut
    • BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut
    • BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut
  • BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-03153

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~3.88/PC
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Type: SMA To BNC Application: RF
    Gender: Female To Female Dielectric: PTFE
    Freqency Range: DC To 4GHz Temperature: -55-+155℃





    BNC Female Waterproof Connector To SMA Female All-Copper With Nut Fixed Adapter​





    Electrical Characteristics:



    Temperature range

    -55—+155℃(PE Cable -40—+85℃)



    Impedance

    50Ω,75Ω



    Frequency range

    DC-4GHz



    Working voltage

    500V r.m.s at sea level



    Withstanding voltage

    1500V r.m.s at sea level



    Contact resistance



    Center contact

    ≤1.5mΩ



    Outer contact

    ≤1 mΩ



    Insulation resistance

    ≥5000MΩ



    Center conductor retention force

    ≥0.57N



    Insertion loss

    ≤0.30dB/3GHz



    Voltage Standing Wave Ratio



    Straight

    ≤1.22/3GHz



    Right angle

    ≤1.30/3GHz



    Durability(mating)

    ≥500(Cycles)







    All kind of RF coaxial connectors

    1) MMCX, MCX RF coaxial connectors
    2) SMA SMB SMC RF coaxial connectors
    3) TNC BNC RF coaxial connectors
    4) N 7/16 coaxial connectors
    5) F UHF MIniUHF coaxial connectors
    6) FME RF coaxial connectors
    7) Reverse polarity connectors
    8) Adapter connectors



    Product Details:

    BNC Female Waterproof RF Antenna Connector To SMA Female All - Copper With Nut

    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. 1 Year Warranty.

    6. OEM/ODM service.

    FAQ:

    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

    2. Can I get samples to test before place an order?

    Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



    3. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

    4. What is our Shipping & Trade terms?

    Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.
    Delivered time: 2-3 business days for sample, 20-25 days for mass order.
    Trade terms: EXW, FOB , CIF etc.
