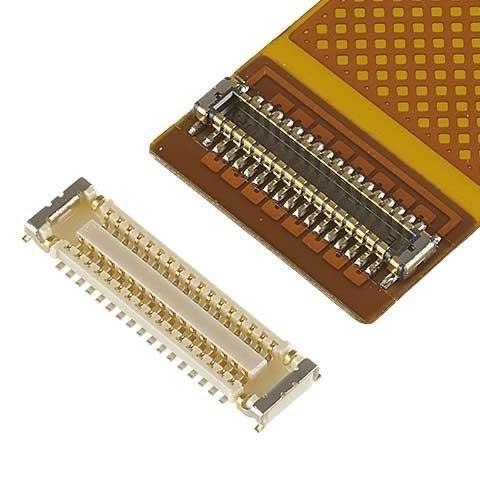

I-PEX NOVASTACK® 35-P 20708-010E-01 Micro Coax Cable Suitable For Electronic Products

I-PEX NOVASTACK® 35-P 20708-010E-01 Micro Coax Cable Suitable For Electronic Products

micro coaxial connector cable

micro coax connector cable

micro coax cable assembly

Place of Origin:

china

Brand Name:

RY

Certification:

UL ,ISO13485 , ISO9001.2005 , ISO14001

Model Number:

20241024

Contact Us

Request A Quote
Product Details
Contact Pitch::
0.35 Mm Pitch
Available Pin Count::
10 14 18 20 24 30 34 40 50 60
Service::
Design
Height::
0.80 Max (0.70 Nom.)
Environmental Protection Rating::
IP20 Or IP67
Payment & Shipping Terms
Minimum Order Quantity
quantity can be negotiable
Price
Most favorable
Packaging Details
PE inner, carton outer
Delivery Time
Shipped in 3-9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union,
Supply Ability
10000pcs
Product Description
Termination Type Solder or Press-Fit
Contact pitch
0.35 mm
Height
0.80 Max (0.70 Nom.) ,
Pin count
10 14 18 20 24 30 34 40 50 60
Depth
2.30 mm
Width Formula
2.17+(0.35*?p/2) mm
Contact type
signal plus power pins
Data Rate Up to 10Gbps
PCB Mounting Style Surface Mount or Through-Hole
Current rating
0.3A / Signal pin 2.0A / Power pin
Full shielding (ZenShield®)
No









I-PEX NOVASTACK® 35-P 20708-010E-01 Micro Coax Cable Suitable For Electronic Products 0
