Custom Screw Mount Anti Explosion Proof GSM 2.4G 3G 4G LTE Antenna With RG174 Cable

Product Details:
Place of Origin: china
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-135747
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: USD0.88~5.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Color: Black Mounting Type: Embedded,Screw,adhesive,magnetic
Application: Indoor/Outdoor Cable Type: RG174
Connector: SMA,etc Type: Screw
High Light:

4g lte external antenna

,

4g lte aerial

Product Description



Custom Screw Mount Anti Explosion Proof GSM 2.4G 3G 4G LTE Antenna With RG174 Cable​



key specification:



4G/LTE antenna Specification



Frequency Range

698-960/1710-2700MHz



V.S.W.R

2.5:1



Gain

6dBi



Polarization

Vertical



Radiation

Omni directional



Max Input power(W)

50



Impedance

50 ohm



Max wind speed

200km/h



Mechanical Specifications



Size

149mm



Cable

3m RG174, RG58, RG316, LMR100 or others



Connector

SMA straight male, SMB, FME, FAKRA or others



Mounting

Screw mount(M12)



Housing

Black ABS



Environmental Specification



Working Temp

-40℃~+85℃



Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis



Humidity

95%~100%RH



Waterproof

100% waterproof




Product shows:

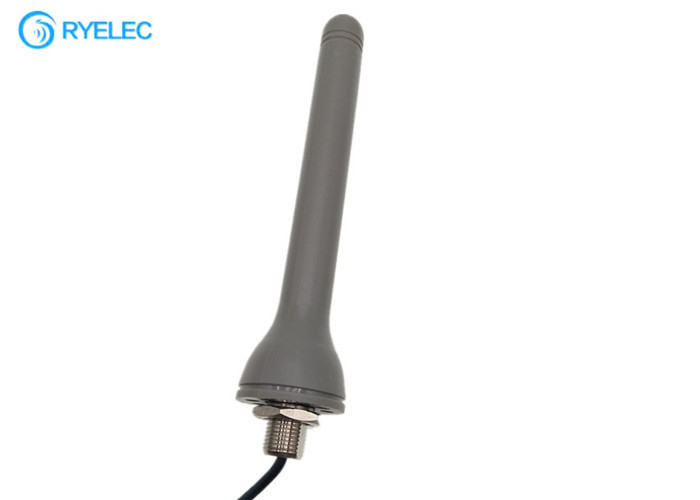

Custom Screw Mount Anti Explosion Proof  GSM 2.4G 3G 4G LTE  Antenna With RG174 Cable 0

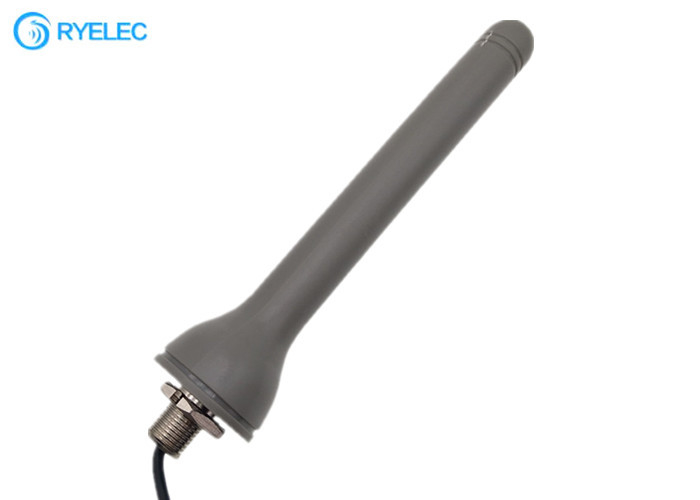

Custom Screw Mount Anti Explosion Proof  GSM 2.4G 3G 4G LTE  Antenna With RG174 Cable 1

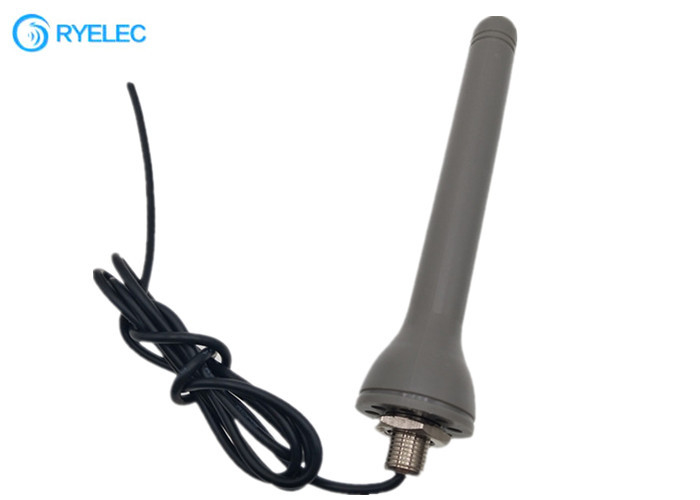

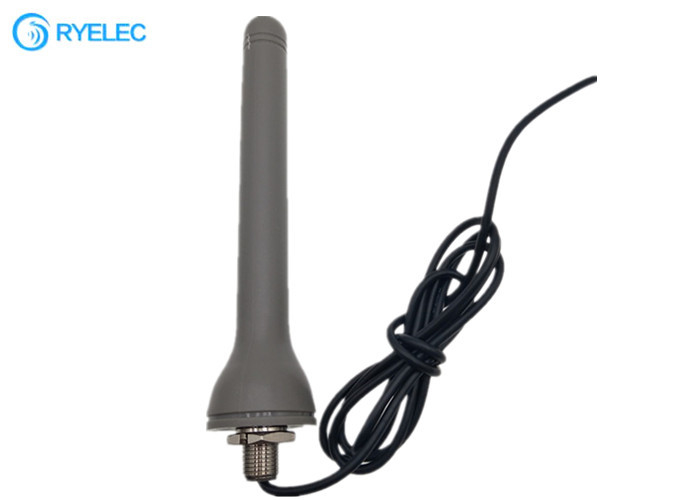

Custom Screw Mount Anti Explosion Proof  GSM 2.4G 3G 4G LTE  Antenna With RG174 Cable 2

Antenna is a kind of converter, which transforms the guided wave propagating on the transmission line into electromagnetic wave propagating in unbounded medium (usually free space), or vice versa. A part of a radio device used to transmit or receive electromagnetic waves. Radio communication, radio, television, radar, navigation, electronic countermeasures, remote sensing, radio astronomy and other engineering systems, which use electromagnetic waves to transmit information, all rely on the antenna to work. In addition, in the transmission of energy by electromagnetic wave, non signal energy radiation also needs antenna. Generally, antennas are reversible, that is, the same pair of antennas can be used as both transmitting and receiving antennas. The basic characteristic parameters of the same antenna as transmitting or receiving are the same. This is the reciprocity theorem of antenna.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount


FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What’s the delivery time?
It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.


3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.

4. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.



5. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.



6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
