806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna

806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna

    • 806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna
    • 806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna
    • 806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna
    • 806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna
  • 806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna

    Product Details:

    Place of Origin: china
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-800-2500-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 20pcs
    Price: USD4.88~20.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Color:: White Mounting Type:: Embedded,Screw,adhesive,magnetic
    Application:: Indoor/Outdoor Cable Type:: RG58
    Connector:: N Female,etc Type:: Puck



    806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna​



    Key Specification:



    Electric Specification



    Frequency Range (MHz)



    806 to 960/1710 to 2500

    Bandwidth (MHz)



    154/790

    Gain (dBi)



    3

    Beam Width (°)



    H: 360 V: 55

    VSWR



    ≤ 1.5

    Input Impedance (Ω)



    50

    Polarization



    Vertical

    Max Power (W)



    50

    Lightning Protection



    DC Ground

    Connector Model



    N Female

    Mechanical Specification



    Size (mm)



    Φ165 × 95

    Antenna Weight (kg)



    0.2

    Working Temperature (℃)



    Below 40 to 60

    Radome Color



    White

    Mounting Way



    Twisted with Screw



    Product shows:

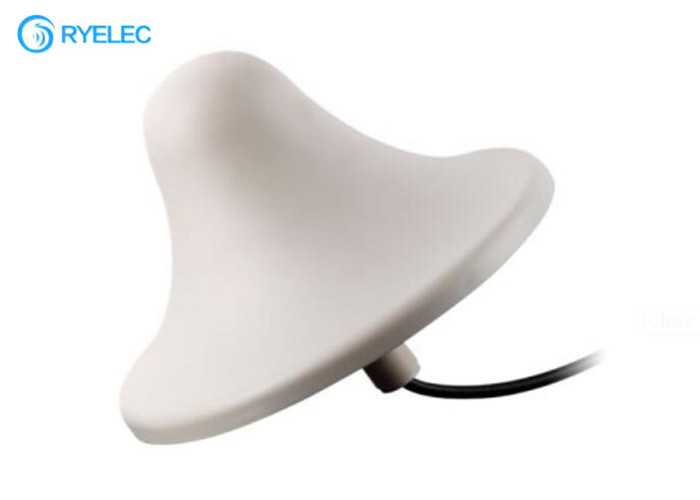

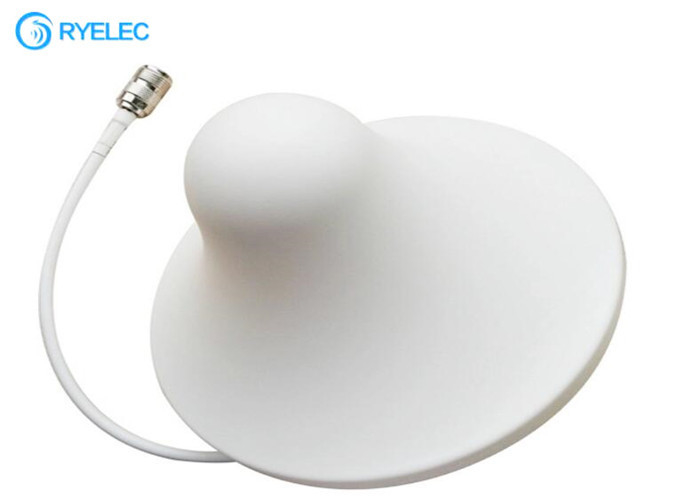

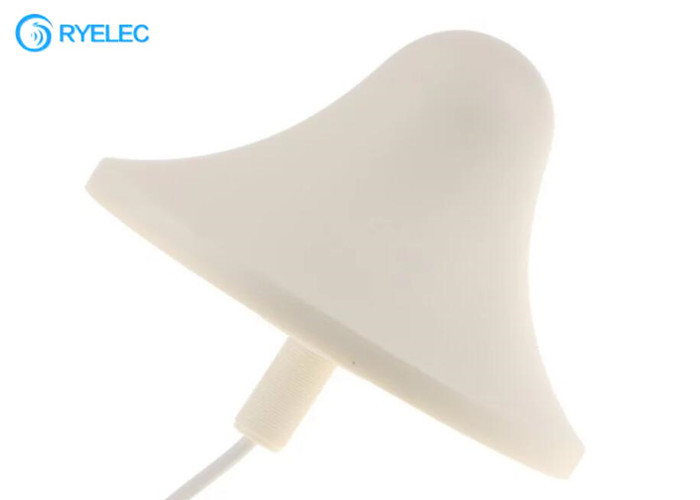

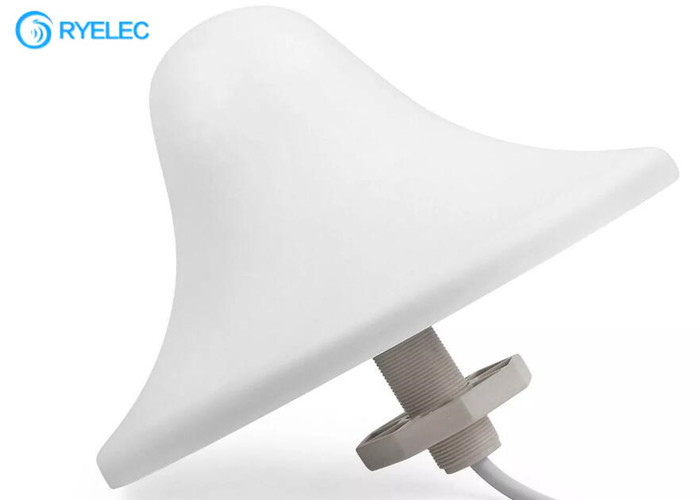

    806 To 960/1710 To 2500 Low Profile 360 Degree Coverage Omni Ceiling Antenna

    Ceiling antenna is a kind of mobile communication antennas which is applied for indoor coverage. It is suited to any indoor areas that require a wireless network, such as hotels, conference centers, exhibition halls, offices, retail outlets, etc. A high gain omidirectional ceiling mount antenna is constituted by enclosure, cable and connector.



    Features
    1. Ceiling antenna is with low profile and good appearance, which make it unobtrusive indoors.
    2. Broad band.
    3. Low VSWR.
    4. Ceiling mount antenna can be easily mounted on a ceiling.
