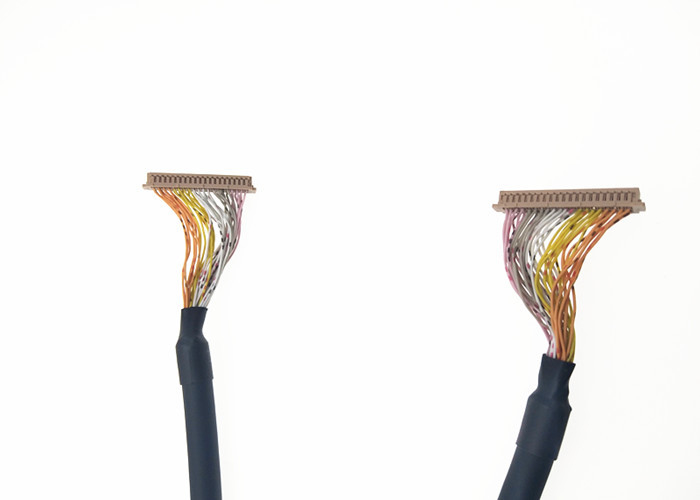

Df14 To Df14 Coaxia Laptop Lvds Cable 20p To 20 Pin Hirose For Remote Controlled Aircraft
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||20|
|Delivery Time:||Shipped in 3 days after payment|
|Payment Terms:||L/C, T/T,Paypal, Western Union, MoneyGram|
custom lvds cable,
lvds lcd cable

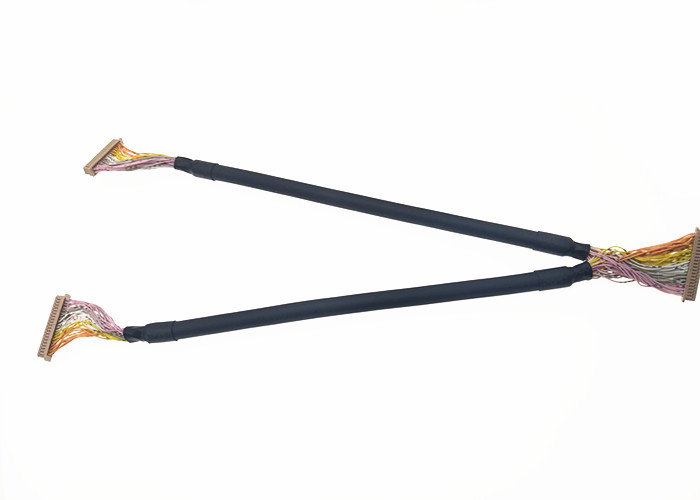

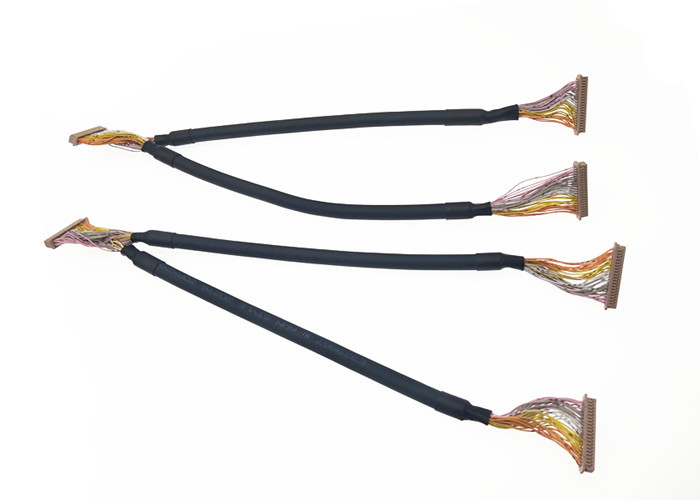

hirose 40pin df13-40ds-1.25c to 2*DF13 40Pin with UL20276 30AWG Y LVDS CABLE
-------What's the lvds cable?
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.
Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.
32AWG,30AWG, 28AWG, 26AWG;
LCD 20cores single shield cable, LCD 20cores double shield cable;
LCD 32cores single shield cable, LCD 32cores double shield cable;
LCD 20cores non-shield cable, LCD 32cores non-shield cable;
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
Crimping, pressing and soldering types.
Pin out connection
As per customer’s request(customer can send the datasheets of LCD and main board to us).
Connector pitch range
Good transferring, clearly pictures, no shaking, and transfer issues
Competitive price and quality;
Short lead time.
Camera/LCM/Notebook/tablet PC/ HDD
OEM/ODM products are acceptable.
100% electrical and electricity performance test
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
