Strip Tinned Custom Wire Harness 2.5mm Pitch Crimping / Pressing / Soldering Types

Strip Tinned Custom Wire Harness 2.5mm Pitch Crimping / Pressing / Soldering Types

electronic wiring harness

wire harness cable assembly

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-871468874

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Pin:
6pin
Application:
Electronic
1 Connector:
Jst
2 Connector:
No
Length:
Customized
Samples:
Available
Voltage Rating:
30V
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~4.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description

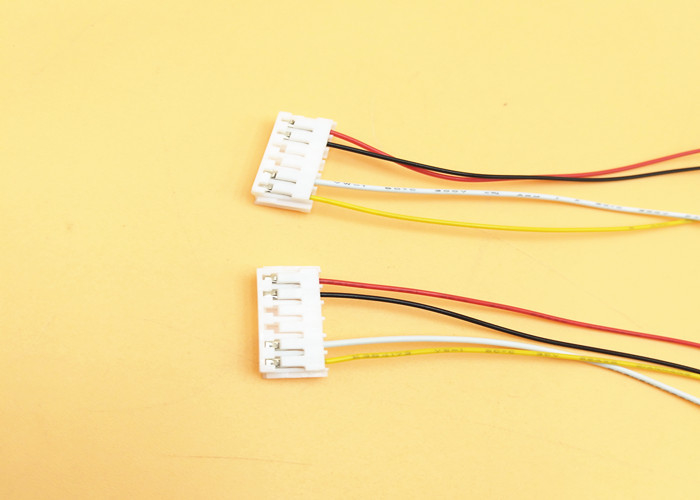

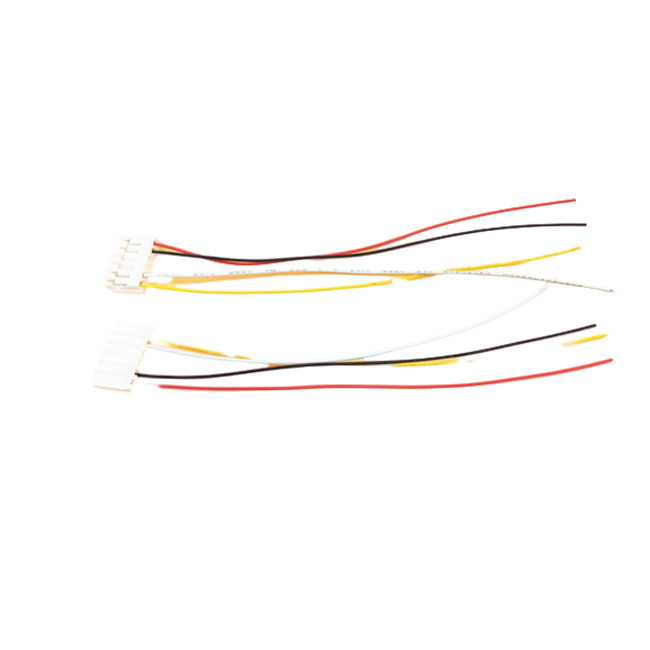

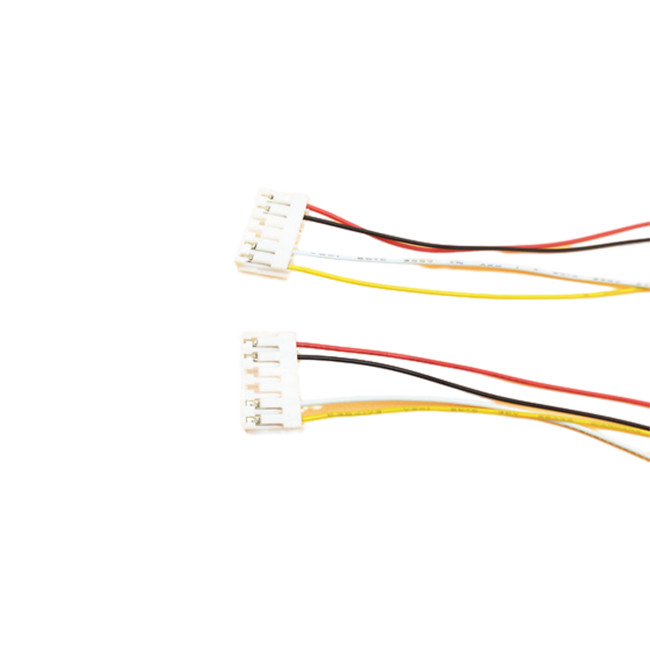

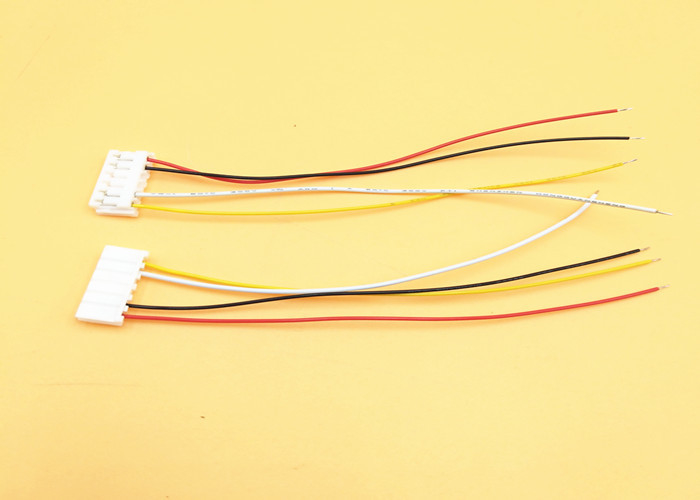

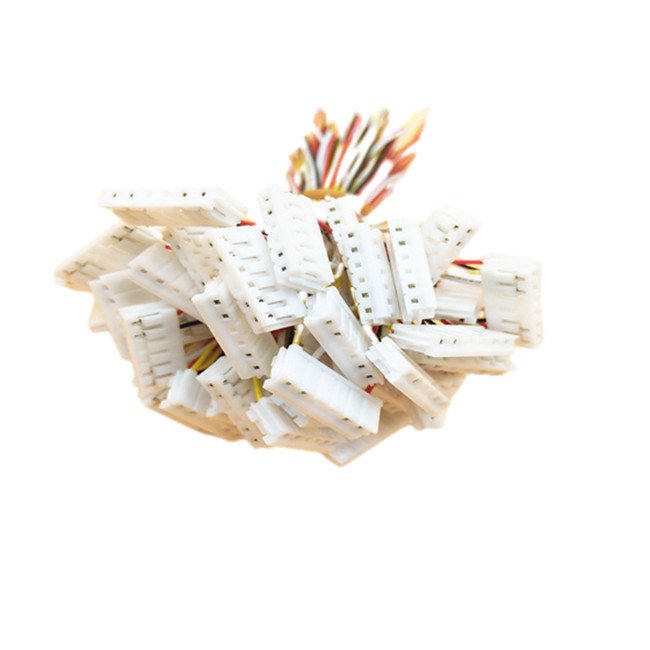

6pin jst EHR-6 2.5mm pitch to strip tinned with UL1571 and 28awg wire harness​





Electrical Characteristics


Material All materials are compliant with Rohs
Connectors Tyco, AMP, Molex, JST, JAE, Delphi or according to your requirements.
Length Customized or according to your requirements
Sample Sample can be provided for evaluating
Connector Pole 6Pin
Connector Pitch 2.5mm
Cable type UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type
Cable color
Optional
Processing ways Crimping, pressing and soldering types.
Pin out connection As per customer’s request
ISO certificate ISO9001:2008
Performance Test: 100% electrical and electricity performance test



Wire Harness Applications:



1. Wire Harness for LCD
2. Wire Harness for Display

3. Wire Harness for Advertising machine

4. Wire Harness for Monitoring

5. Wire Harness for Back projection

6. Wire Harness for TV

7. Wire Harness for Medical system/monitoring

8. Wire Harness for Laptop
9. Wire Harness for PC and Computer
10. Wire Harness for PDA
11. Wire Harness for DVD
12. Wire Harness for Digital camera



Product Details:

Strip Tinned Custom Wire Harness 2.5mm Pitch Crimping / Pressing / Soldering Types 0

Strip Tinned Custom Wire Harness 2.5mm Pitch Crimping / Pressing / Soldering Types 1

Strip Tinned Custom Wire Harness 2.5mm Pitch Crimping / Pressing / Soldering Types 2


Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:

1. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

2. Fast Delivery Time :2~15 days, On-Time Delivery.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.

5. OEM/ODM service.

6. We are available with Trade Assurance, you'll enjoy:
   •100% product quality protection
   •100% on-time shipment protection
   •100% payment protection for your covered amount




FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
