30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector

30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector

    • 30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector
    • 30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector
    • 30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector
  • 30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-814795

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD1.88~8.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Pin: 40PIN
    Application:: Electronic 1 Connector:: Idc
    2 Connector:: DF14 Housing:: Hirose
    Length:: Customized Samples:: Available

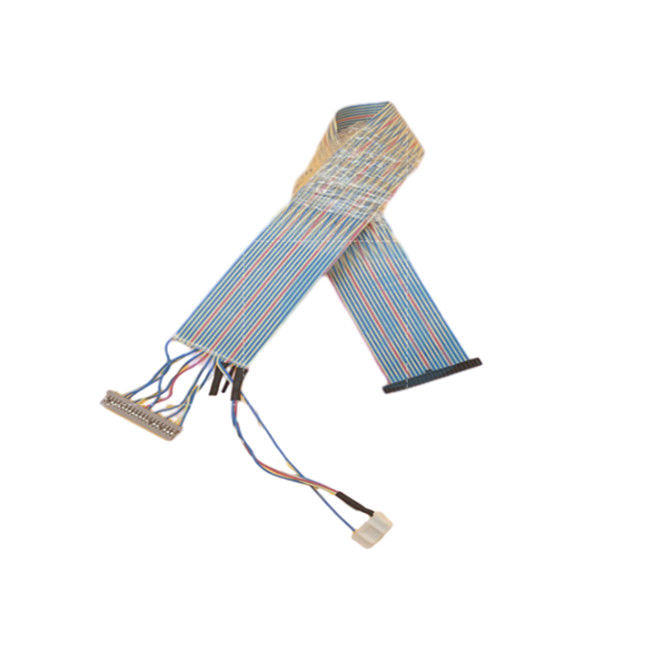

    30AWG Electronic Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector





    -------What's the lvds cable?



    Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
    serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

    Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
    as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
    industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
    graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
    the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
    the video-display engineering vocabulary.


    Electrical Characteristics

    Discription of the lvds cable
    About the wire:
    1. Wire type: black and round
    2. AWG:30AWG
    3.Wire number:
    UL20279
    4. Shielding: tin-plated braid shielding, silver
    5. Twist pairs: 20pairs
    6. Inner wire color: multicolor

    About the lvds cable:
    1. Cable length: 30CM
    2. With shrink tube
    3. Strip length: 3CM/5CM



    Cable type
    32AWG,30AWG, 28AWG, 26AWG;
    LCD 20cores single shield cable, LCD 20cores double shield cable;
    LCD 32cores single shield cable, LCD 32cores double shield cable;
    LCD 20cores non-shield cable, LCD 32cores non-shield cable;


    Cable color
    Black/Grey
    Connectors
    idc ,df14,jst
    Cable Length
    50mm-15000mm.
    Processing ways
    Crimping, pressing and soldering types.
    Pin out connection
    As per customer’s request(customer can send the datasheets of LCD and main board to us).
    Connector pitch range
    0.3mm-4.2mm
    characteristics
    Good transferring, clearly pictures, no shaking, and transfer issues
    Advantages
    Manufacturing factory;
    Competitive price and quality;
    Short lead time.

    Applications
    LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
    Camera/LCM/Notebook/tablet PC/ HDD


    ISO certificate
    ISO9001:2008
    Service
    OEM/ODM products are acceptable.
    More information
    ISO/RoHS/UL
    Performance Test:
    100% electrical and electricity performance test


    Product Details:

    30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector

    30AWG Multicolor Flat Twisted Pair Ribbon Cable With IDC / DF14 Connector


    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. 1 Year Warranty.



    FAQ

    1. How to choose a right cable?

    A designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.



    2. What’s will impact the material you select?

    Specific equipment, machine structure and environment



    3. Follow question 2, below you have to concern

    Unshielded or shielded (taped, braided, or combination of both)?

    Round or flat? Coaxial, multiconductor or twisted pair cable?



    4. Why cable need to be shielding?

    To reduce electrical noise from affecting the signals, and to reduce electromagnetic

    radiation that may interfere with

    other devices.



    5. What sort of cable need suggest to?

    For long transmission lines, a braided or served shield is recommended to ensure good isolation between the signal lines and the environment.



    6. Is that double-shielded cables that are both taped and braided typically perform better?

    Yes



    7. What kind of cable is cheaper and easy to handle?

    Multiconductor cables are cheaper and easier to handle than twisted pair or coaxial cables, especially in terms of termination.



    8. What’s you recommended for differential data transmission, such as LVDS?

    The twisted pair cable is recommended since it provides two identical conductors to transmit the signal and its complement.
