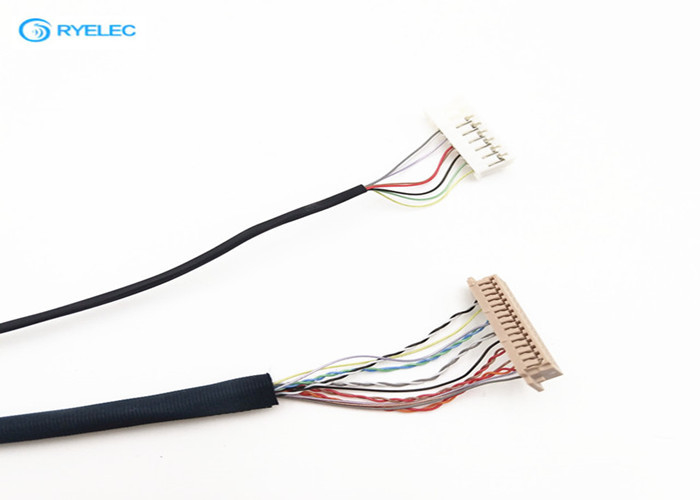

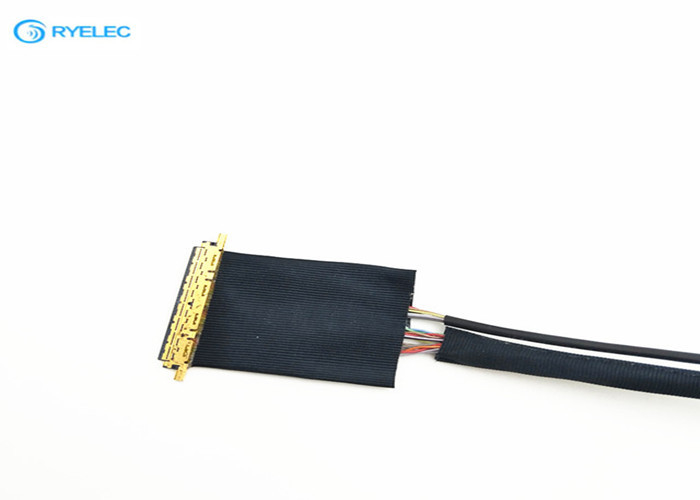

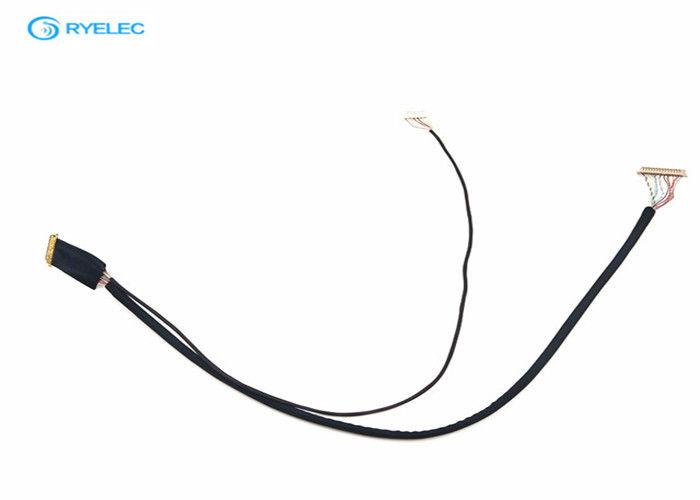

IPEX 20454-240T to DF13-30ds-1.25c with 8pin jst PH2.0 lcd screen lvds cable
-------What's the lvds cable?
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.
Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.
Electrical Characteristics
Discription of the lvds cable
About the wire:
1. Wire type: black and round
2. AWG:28AWG
3.Wire number: UL20276
4. Shielding: tin-plated braid shielding, silver
About the lvds cable:
1. Cable length: 30CM
2. With shrink tube
3. Strip length: 3CM/5CM
4: With yellow high temperature tape
5. Heat shrink tube length:25mm
|
Cable type
|
32AWG,30AWG, 28AWG, 26AWG;
LCD 20cores single shield cable, LCD 20cores double shield cable; LCD 32cores single shield cable, LCD 32cores double shield cable; LCD 20cores non-shield cable, LCD 32cores non-shield cable; |
||
|
Cable color
|
Black/Grey
|
||
|
Connectors
|
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
|
||
|
Cable Length
|
50mm-15000mm.
|
||
|
Processing ways
|
Crimping, pressing and soldering types.
|
||
|
Pin out connection
|
As per customer’s request(customer can send the datasheets of LCD and main board to us).
|
||
|
Connector pitch range
|
0.3mm-4.2mm
|
||
|
characteristics
|
Good transferring, clearly pictures, no shaking, and transfer issues
|
||
|
Advantages
|
Manufacturing factory;
Competitive price and quality; Short lead time.
|
||
|
Applications
|
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD |
||
|
ISO certificate
|
ISO9001:2008
|
||
|
Service
|
OEM/ODM products are acceptable.
|
||
|
More information
|
ISO/RoHS/UL
|
||
|
Performance Test:
|
100% electrical and electricity performance test
|
||
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
1. Are you trading company or manufacturer ?
We are factory.
2. Are these products quality assured?
All of our products are ROHS compliant, all products are 100% tested before delivery.
3. How long is your delivery time?
Generally it is 10-20 workdays, it is according to quantity.
4. Do you provide samples ?
Yes, we could offer the sample.
5. If I want to customize products, how will it work?
Equipped with professional equipments, technicians & skilled employees, OEM service are welcome. Pls offer us drawings or pictures.
Send your inquiry directly to us
