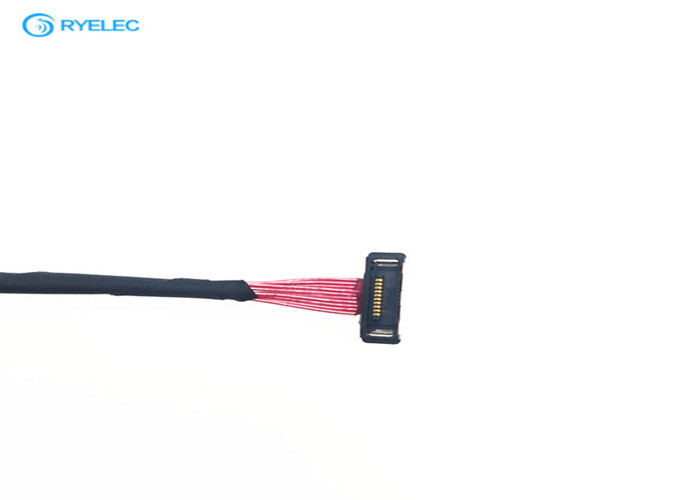

Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable

Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable

    • Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable
    • Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable
  • Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-8765432

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~6.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Pin: 10PIN
    Application:: Electronic 1 Connector:: Ipex 20373
    2 Connector:: Ipex 20373 Wire:: 36awg
    Length:: Customized Samples:: Available







    Both ends 0.4mm pitch 10pin I-PEX 20373-010T EDP micro coax AWG36 lvds cable




    -------What's the lvds cable?


    Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
    serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

    Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
    as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
    industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
    graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
    the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
    the video-display engineering vocabulary.

    Electrical Characteristics



    Cable type
    32AWG,30AWG, 28AWG, 26AWG;
    LCD 20cores single shield cable, LCD 20cores double shield cable;
    LCD 32cores single shield cable, LCD 32cores double shield cable;
    LCD 20cores non-shield cable, LCD 32cores non-shield cable;


    Cable color
    Black/Grey
    Connectors
    JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
    Cable Length
    50mm-15000mm.
    Processing ways
    Crimping, pressing and soldering types.
    Pin out connection
    As per customer’s request(customer can send the datasheets of LCD and main board to us).
    Connector pitch range
    0.3mm-4.2mm
    characteristics
    Good transferring, clearly pictures, no shaking, and transfer issues
    Advantages
    Manufacturing factory;
    Competitive price and quality;
    Short lead time.

    Applications
    LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
    Camera/LCM/Notebook/tablet PC/ HDD


    ISO certificate
    ISO9001:2008
    Service
    OEM/ODM products are acceptable.
    More information
    ISO/RoHS/UL
    Performance Test:
    100% electrical and electricity performance test


    Product Details:Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable
    Both Ends EDP Micro Coaxial Cable , 36AWG IPEX 20373 Connector LVDS Cable

    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. 1 Year Warranty.

    FAQ:
    Q:How to order
    A:1. Please tell us what kind of model you need.
        2.Once we confirmed the order,please pay it soon.
        3. After payment , all goods will be sent to you within 10 working days as usual.
    Q. The MOQ
    A:I am glad to accept a samll order to test the market,While Kindly remind, the more the quantity, the better    the price.

    Q:What is the delivery time and shipping fee
    A: We promise to ship the items 7-15days after received your payment,and the cost will according to the        total weight .

    Q:What is the warranty
    A:For defective or faulty products,please contact us first,We will resolved your issues,thanks a lot!
    Q. If this was not I want, what should I do?
    A:If you find this is not exactly meet what you need. Please send us emails about your inquiry details. We will give you solution within 2 hours! Or call us right now!
