FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available

FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available

    • FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available
    • FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available
    • FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available
  • FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-8876543

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~6.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Pin: 20PIN
    Application:: Electronic 1 Connector:: FI-S20S
    2 Connector:: FI-S20S Housing:: JAE
    Length:: Customized Samples:: Available

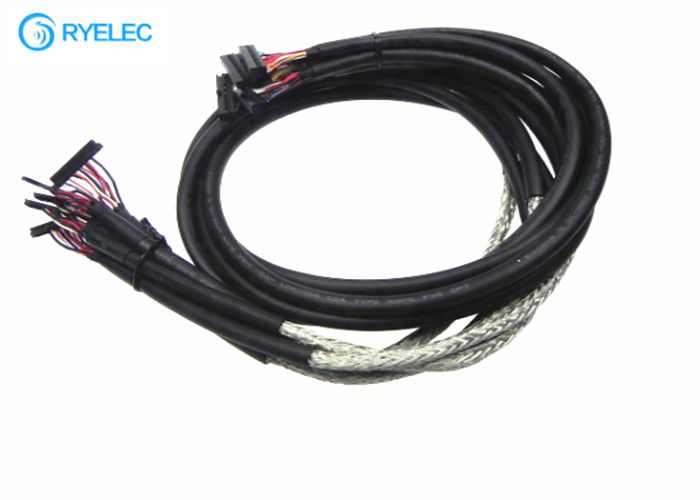

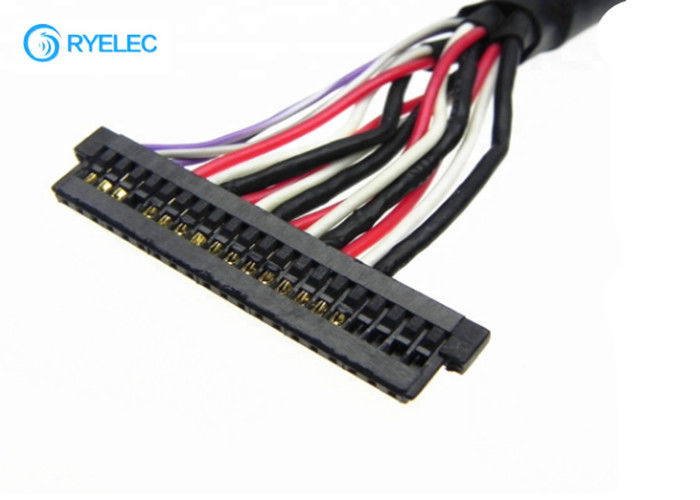

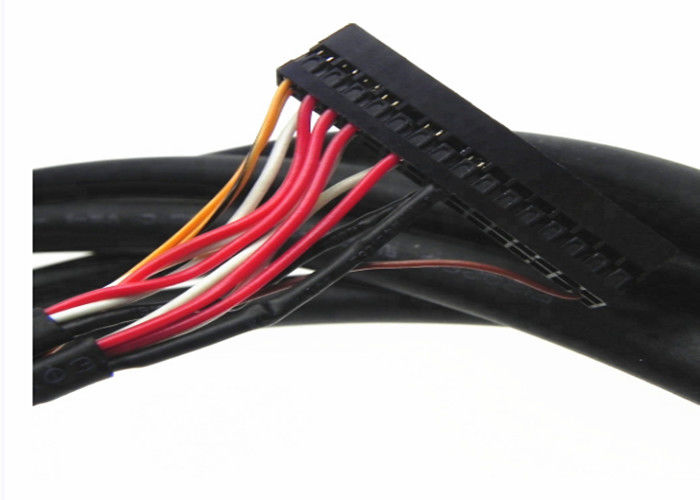

    Both ends JAE 20pin FI-S20S lvds cable for LCD screen display panel monitor




    -------What's the lvds cable?



    Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
    serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

    Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
    as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
    industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
    graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
    the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
    the video-display engineering vocabulary.


    Electrical Characteristics



    Cable type
    32AWG,30AWG, 28AWG, 26AWG;
    LCD 20cores single shield cable, LCD 20cores double shield cable;
    LCD 32cores single shield cable, LCD 32cores double shield cable;
    LCD 20cores non-shield cable, LCD 32cores non-shield cable;


    Cable color
    Black/Grey
    Connectors
    JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
    Cable Length
    50mm-15000mm.
    Processing ways
    Crimping, pressing and soldering types.
    Pin out connection
    As per customer’s request(customer can send the datasheets of LCD and main board to us).
    Connector pitch range
    0.3mm-4.2mm
    characteristics
    Good transferring, clearly pictures, no shaking, and transfer issues
    Advantages
    Manufacturing factory;
    Competitive price and quality;
    Short lead time.

    Applications
    LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
    Camera/LCM/Notebook/tablet PC/ HDD


    ISO certificate
    ISO9001:2008
    Service
    OEM/ODM products are acceptable.
    More information
    ISO/RoHS/UL
    Performance Test:
    100% electrical and electricity performance test


    Product Details:
     FI-S20S Connector LVDS Flat Flex Cable LCD Screen Display Panel Monitor Available
    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. 1 Year Warranty.


    FAQ:


    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

    2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.

    3. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

    4. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

    5. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

    6. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
