Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-876543
Contact Us

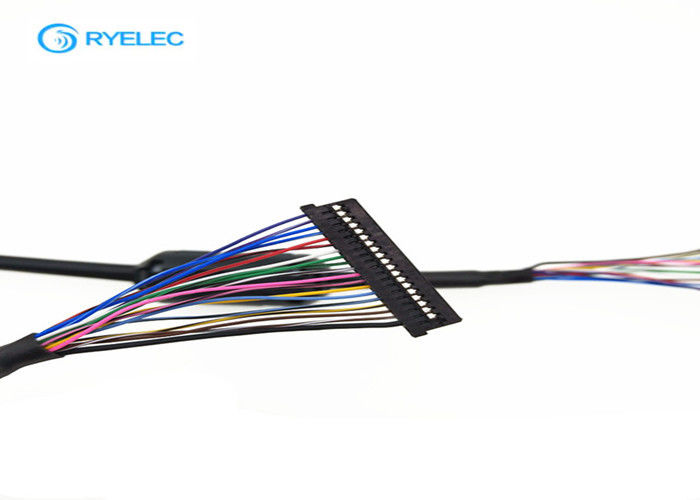

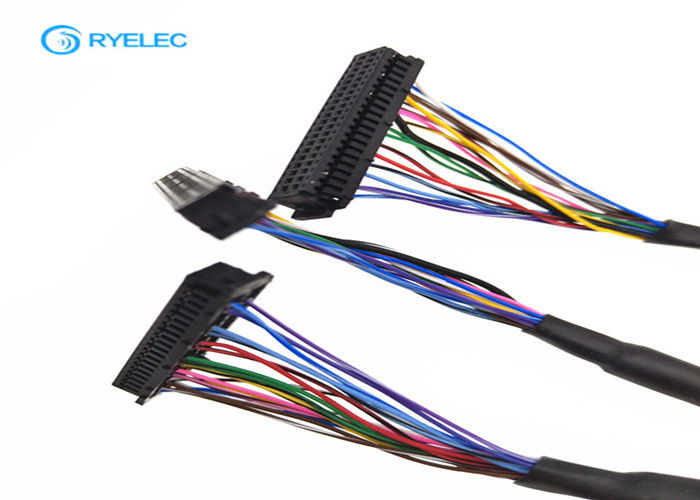

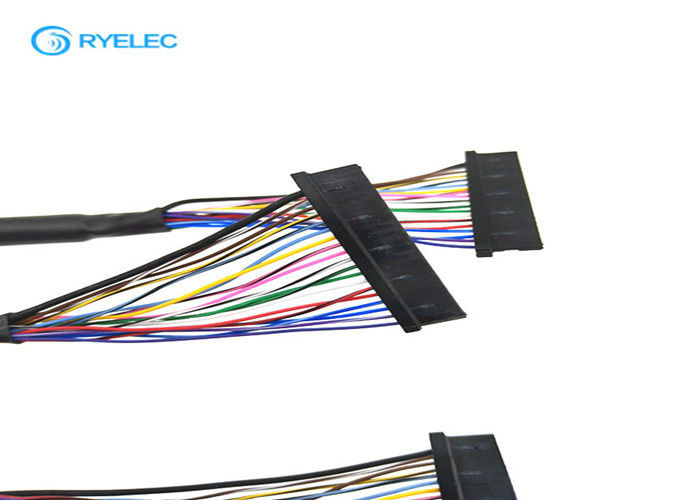

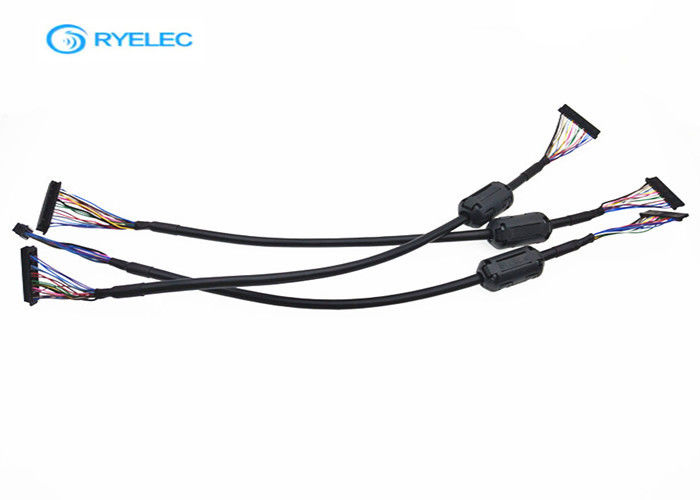

black DF13 -DF14 20pin custom lvds cable assembly with TDK 40ohm ferrite for fujitsu
-------What's the lvds cable?
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.
Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.
LVDS Cable Application:
1.Displayer
2.PC and Computer
3.Flat screen TV
4.Printer, Scanner, FAX machine, Copier
5.Sound Box
6.Liquid Crystal display
7.Car DVD
8.Digital camera
9.Airbag line
10.lnkjet printer
11.Pictorial machine
LVDS cable used for signal transimission and iternal layout in fields of diplay, flat television set, printer, scanner, computer digital camera, video camera, fax machine and copier, Agilent tester etc
Electrical Characteristics
|
Cable type
|
32AWG,30AWG, 28AWG, 26AWG;
LCD 20cores single shield cable, LCD 20cores double shield cable; LCD 32cores single shield cable, LCD 32cores double shield cable; LCD 20cores non-shield cable, LCD 32cores non-shield cable; |
||
|
Cable color
|
Black/Grey
|
||
|
Connectors
|
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
|
||
|
Cable Length
|
50mm-15000mm.
|
||
|
Processing ways
|
Crimping, pressing and soldering types.
|
||
|
Pin out connection
|
As per customer’s request(customer can send the datasheets of LCD and main board to us).
|
||
|
Connector pitch range
|
0.3mm-4.2mm
|
||
|
characteristics
|
Good transferring, clearly pictures, no shaking, and transfer issues
|
||
|
Advantages
|
Manufacturing factory;
Competitive price and quality; Short lead time.
|
||
|
Applications
|
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD |
||
|
ISO certificate
|
ISO9001:2008
|
||
|
Service
|
OEM/ODM products are acceptable.
|
||
|
More information
|
ISO/RoHS/UL
|
||
|
Performance Test:
|
100% electrical and electricity performance test
|
||
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
FAQ:
• Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
• Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated.
• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service
• Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now !!! Free sample and best answers are waiting for you.
