Molex Connetor Flexible Flat Cable , 40 Pin Electronic LVDS Flex Cable

Molex Connetor Flexible Flat Cable , 40 Pin Electronic LVDS Flex Cable

custom lvds cable

lvds lcd cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-5728876

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Pin:
40PIN
Application:
Electronic
1 Connector:
DF13
2 Connector:
DF14
3 Connector:
Molex 51146
Length:
Customized
Samples:
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description







40pin hirose df13-40s-1.25c to 20pin DF14-20S-1.25C with molex 51146 Y lvds cable






-------What's the lvds cable?



Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,

industrial cameras and machine vision,notebook and tablet computers,and communications systems.

The typical applications are high-speed video,graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.


Electrical Characteristics



Cable type
32AWG,30AWG, 28AWG, 26AWG;
LCD 20cores single shield cable, LCD 20cores double shield cable;
LCD 32cores single shield cable, LCD 32cores double shield cable;
LCD 20cores non-shield cable, LCD 32cores non-shield cable;


Cable color
Black / Grey
Connectors
DF19-30s-1c to 40pin DF13-40S-1.25C
Cable Length
50mm-15000mm.
Processing ways
Crimping, pressing and soldering types.
Pin out connection
As per customer’s request(customer can send the datasheets of LCD and main board to us).
Connector pitch range
0.3mm-4.2mm
characteristics
Good transferring, clearly pictures, no shaking, and transfer issues
Advantages
Manufacturing factory;
Competitive price and quality;
Short lead time.

Applications
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD


ISO certificate
ISO9001:2008
Service
OEM/ODM products are acceptable.
More information
ISO/RoHS/UL
Performance Test:
100% electrical and electricity performance test


Product Details:

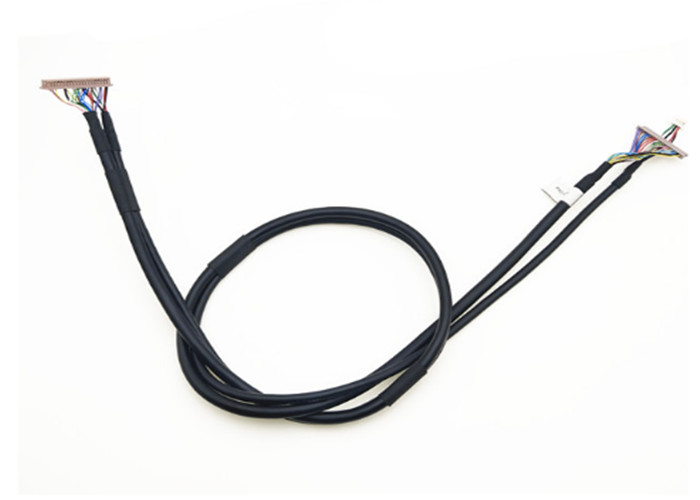

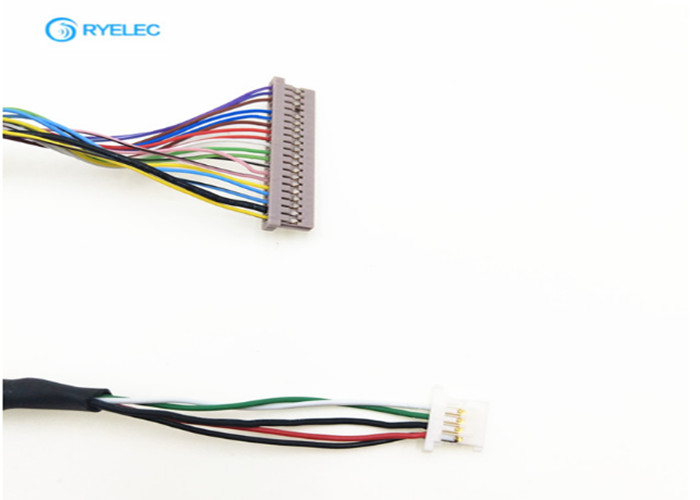

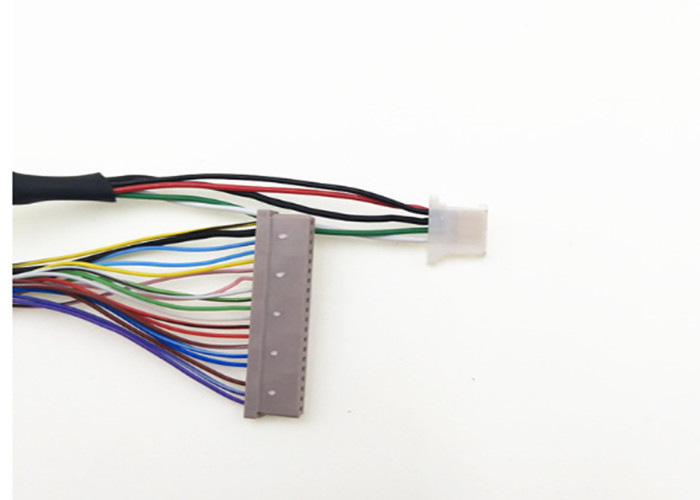

Molex Connetor Flexible Flat Cable , 40 Pin Electronic LVDS Flex Cable 0

Molex Connetor Flexible Flat Cable , 40 Pin Electronic LVDS Flex Cable 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.


FAQ

1. How to choose a right cable?

A designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.



2. What’s will impact the material you select?

Specific equipment, machine structure and environment



3. Why cable need to be shielding?

To reduce electrical noise from affecting the signals, and to reduce electromagnetic

radiation that may interfere with

other devices.



4. What sort of cable need suggest to?

For long transmission lines, a braided or served shield is recommended to ensure good isolation between the signal lines and the environment.
