12 Pin Jst Zh 1.5mm Pitch To 8p Gh 28awg Wire Harness With 6p Zh Connector

12 Pin Jst Zh 1.5mm Pitch To 8p Gh 28awg Wire Harness With 6p Zh Connector

electronic wiring harness

custom cable assemblies

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Brand Name::
1 Connector::
Jst Zh
2 Connector::
Jst Gh
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
Product Description




12pin jst-zh 1.5mm pitch to to 8p gh with 6p zh connector with 28awg wire harness




Electrical Characteristics

Material All materials are compliant with Rohs
Connectors Tyco, AMP, Molex, JST, JAE, Delphi or according to your requirements.
Length Customized or according to your requirements
Sample Sample can be provided for evaluating
Connector Pole 2-64Pin
Connector Pitch 1.5mm and 1,25mm
Housing jst
Processing ways Crimping, pressing and soldering types.
Pin out connection As per customer’s request
ISO certificate ISO9001:2008
Performance Test: 100% electrical and electricity performance test


ZH Specification:

Poles: 2 to 16P

Current rating:1.0 A AC,DC

Voltage rating:50V AC,DC

Temperature range:-25C to +85C

Contact resistance :20m

Insulation resistance:500m

Withstand voltage:500VAC/minute

Applicable wire:AWG #32 to #26

Applicable PC board thickness:0.6mm to 1.2mm,1.6mm


Wire Harness Applications:

1. Wire Harness for PDA
2. Wire Harness for DVD
3. Wire Harness for Digital camera

4. Wire Harness for LCD

5. Wire Harness for Back projection

6. Wire Harness for TV

7. Wire Harness for Medical system/monitoring

8. Wire Harness for Laptop
9. Wire Harness for PC and Computer

10. Wire Harness for Display

11. Wire Harness for Advertising machine


Product Details:

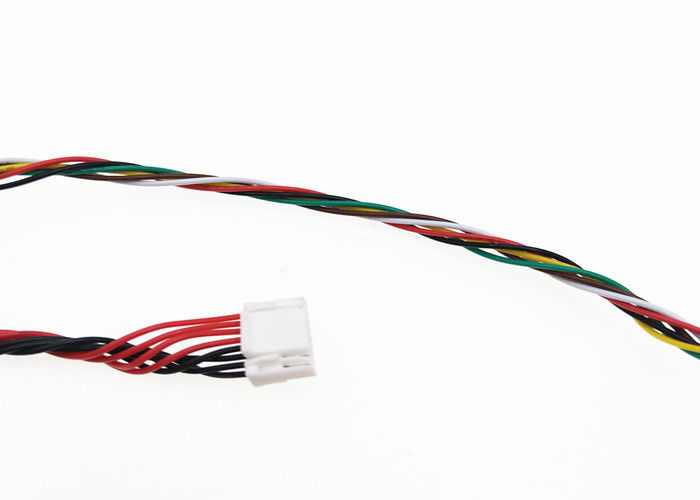

 12 Pin Jst Zh 1.5mm Pitch To 8p Gh 28awg Wire Harness With 6p Zh Connector 0

12 Pin Jst Zh 1.5mm Pitch To 8p Gh 28awg Wire Harness With 6p Zh Connector 1

12 Pin Jst Zh 1.5mm Pitch To 8p Gh 28awg Wire Harness With 6p Zh Connector 2


Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
2. Fast Delivery Time :2~15 days, On-Time Delivery.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. 1 Year Warranty.


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
