Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-87246
Contact Us

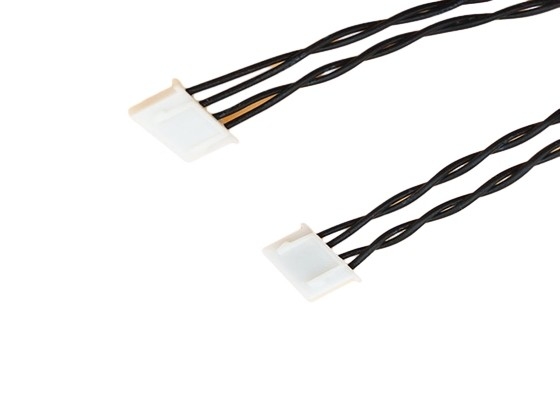

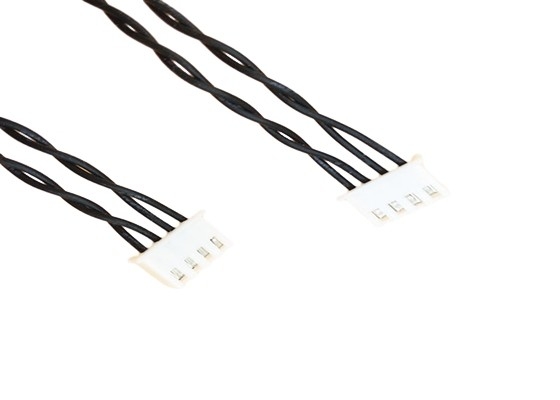

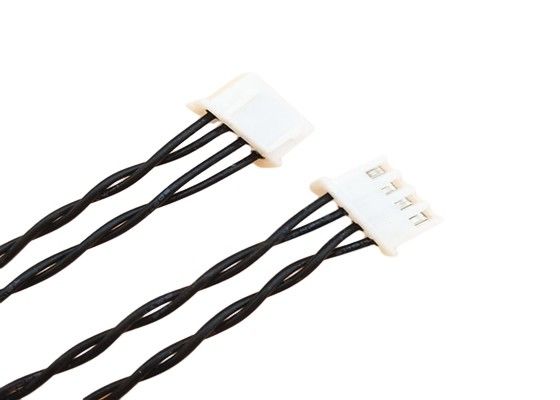

UL10086 ETFE Insulation High Temperature Wire And Cable With 4pin Jst-Xh Connector
Electrical Characteristics;
| Conductor | Insulation | Electrical | Packing | |||
| Properties | ||||||
| AWG | Conductor | Diameter | Insulation | Outer | Max.Conductor | M/coil |
| Construction | mm | Thickness | Diameter | Resistance DC 20℃ | ||
| NO.XΦmm | mm | mm | Ω/km | |||
| 10 | 37x0.43 | 3.01 | 0.51 | 4.03 | 3.546 | 305 |
| 12 | 19x0.49 | 2.45 | 0.51 | 3.47 | 5.64 | 305 |
| 14 | 19x0.37 | 1.85 | 0.51 | 2.87 | 8.96 | 305 |
| 16 | 19x0.30 | 1.5 | 0.51 | 2.52 | 14.6 | 305 |
| 17 | 19x0.26 | 1.3 | 0.51 | 2.32 | 18.3 | 305 |
| 18 | 19x0.23 | 1.15 | 0.51 | 2.17 | 23.2 | 305 |
| 20 | 19x0.18 | 0.9 | 0.51 | 1.92 | 36.7 | 305 |
| 1x0.80 | 0.8 | 0.51 | 1.82 | 35.2 | 305 | |
| 22 | 19x0.16 | 0.8 | 0.51 | 1.82 | 59.4 | 610 |
| 1x0.65 | 0.65 | 0.51 | 1.67 | 56.4 | 610 | |
| 24 | 7x0.20 | 0.6 | 0.51 | 1.62 | 94.2 | 610 |
| 1x0.50 | 0.5 | 0.51 | 1.52 | 89.3 | 610 | |
| 26 | 7x0.16 | 0.48 | 0.51 | 1.5 | 150 | 610 |
| 1x0.40 | 0.4 | 0.51 | 1.42 | 143 | 610 | |
| 28 | 7x0.12 | 0.36 | 0.51 | 1.38 | 239 | 610 |
| 1x0.32 | 0.32 | 0.51 | 1.34 | 227 | 610 | |
| 30 | 7x0.10 | 3 | 0.51 | 1.32 | 381 | 610 |
| 1x0.254 | 0.254 | 0.51 | 1.274 | 361 | 610 | |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Display
3. Wire Harness for Advertising machine
4. Wire Harness for Monitoring
5. Wire Harness for Back projection
6. Wire Harness for TV
7. Wire Harness for Medical system/monitoring
8. Wire Harness for Laptop
9. Wire Harness for PC and Computer
10. Wire Harness for PDA
11. Wire Harness for DVD
12. Wire Harness for Digital camera
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
2. Fast Delivery Time :2~15 days, On-Time Delivery.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. 1 Year Warranty.
5. OEM/ODM service.
6. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
