Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-81246
Contact Us
Video

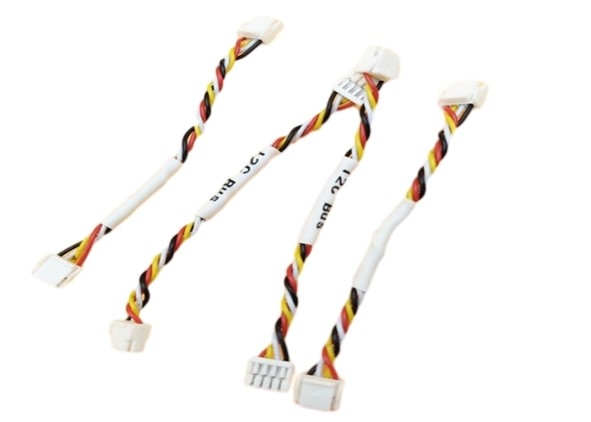

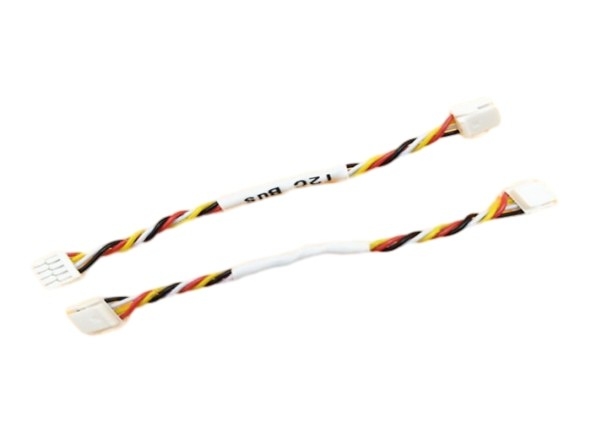

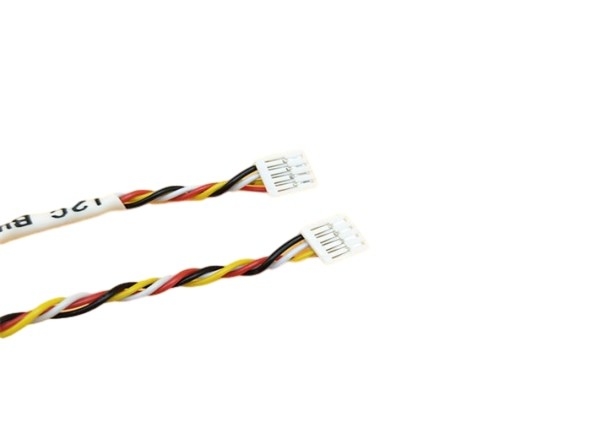

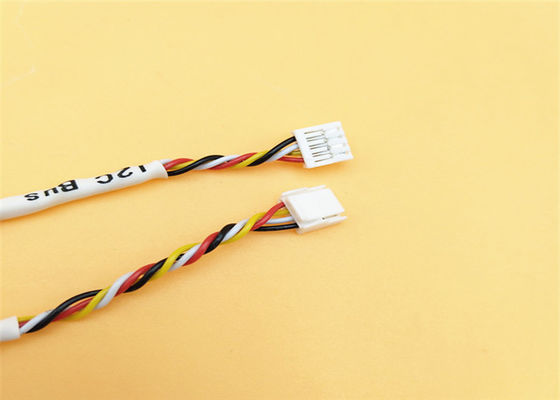

GHR-04V-S Housing Wire To Board Connector Twisted Wire Harness With 28awg For UAV
Electrical Characteristics
|
Items
|
Specifications |
|
Compatible:
|
JST GH Series Connector |
|
Pitch - Mating Interface:
|
1.25mm |
|
Circuits:
|
2-15P |
|
Applicable wire:
|
AWG#26-#30 (Max.OD:0.8mm) |
|
Current Rating:
|
1A |
|
Voltage Rating:
|
50V |
|
Temperature Range:
|
-25°C~+85°C |
|
Contact Resistance:
|
30m Omega Max |
|
Insulation Resistance:
|
100M Omega Min |
|
Withstanding Voltage:
|
500V AC/minute |
| Wire & Cable Assemblies: | Customized |
| Material | All materials are compliant with Rohs |
| Connectors | Tyco, AMP, Molex, JST, JAE, Delphi or according to your requirements. |
| Length | Customized or according to your requirements |
| Sample | Sample can be provided for evaluating |
| Connector Pole | 4Pin |
| Connector Pitch | 1.25mm |
| Cable type | UL1007... |
| Cable color | Optional |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Display
4. Wire Harness for Back projection
5. Wire Harness for TV
6. Wire Harness for Medical system/monitoring
7. Wire Harness for Laptop
8. Wire Harness for PC and Computer
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
1.Reply your enquiry in shortest time.
2.Stick to high quality Wire Harness.
3.OEM & ODM orders are welcomed.
PS: If you havn't find the exact item Wire Hanresses meeting your needs,please do not rush to go away,send your item specifications to us so we can give you our best quote.We can develop moulds and supply satisfatory quality to you.
Thanks for your attention!
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
